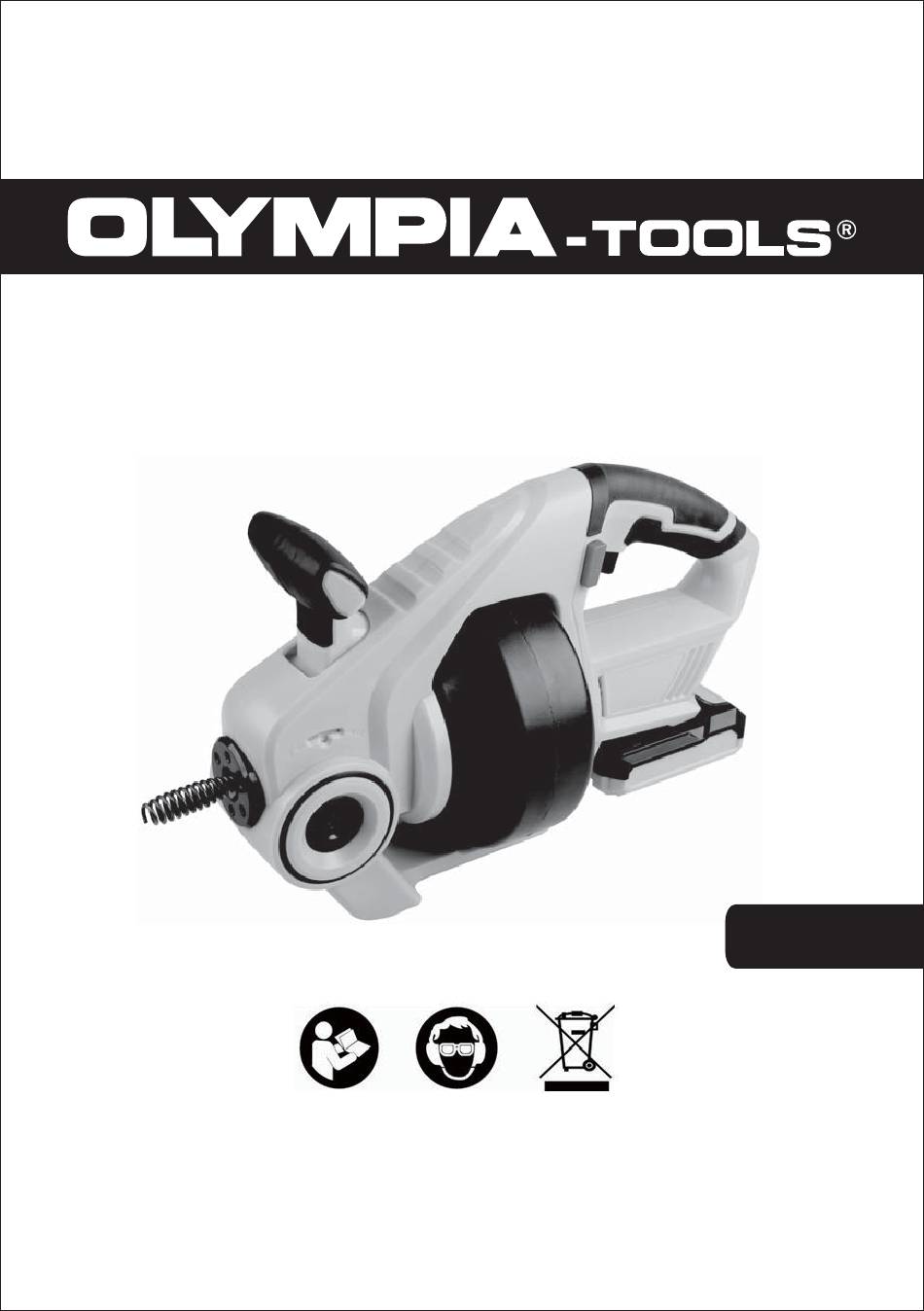

Owner's Manual & Safety Instructions
READ
this Operator's Manual carefully before using this tool. Failure to understand and follow
the contents of this manual may result in electrical shock, fire and/or serious personal injury.
1/4in. X 25ft. 18v Lithium-ion
Electric Drain Cleaner
SAVE THESE INSTRUCTIONS AND PRECAUTIONS.
Please read the entire instruction manual before using the product and then save
it for future reference. We reserve the right for any errors in text or images and
any necessary changes made to technical data. If you have any questions
regarding technical problems please contact our Customer Services.
ORIGINAL INSTRUCTION
ITEM 86-338
Advertisement
Related Manuals for Olympia Tools 86-338
Summary of Contents for Olympia Tools 86-338
- Page 1 1/4in. X 25ft. 18v Lithium-ion Electric Drain Cleaner ITEM 86-338 ORIGINAL INSTRUCTION SAVE THESE INSTRUCTIONS AND PRECAUTIONS. Please read the entire instruction manual before using the product and then save it for future reference.
- Page 2 WARNING! For your own safety, read this manual and the general safety instructions carefully before using the appliance. Your power tool should only be given to other users together with these instructions. It may cause serious personal injuries due to improper use or failure to observe the safety rules specified in this operation manual.
-
Page 3: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury . Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 4 the risk of electric shock. 3) Personal safety a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
- Page 5 c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
- Page 6 6) Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Pipe Dredger Safety Guidelines The operation manual contains some specific machine safety information and operating instructions to prevent the following serious personal injuries: It will cause injury to fingers, hands, arms or other body parts if clothes or gloves are drawn into the rotating parts.
-
Page 7: Technical Data
8. The function of this tool is to clean and dredge the pipes. Please follow the instructions in the operation manual. Wrong use can cause injury. Product Overview, Specification and Standard Configuration TECHNICAL DATA Rated Voltage 18V d.c Rated speed 0-560/min Switch Infinitely variable speed switch, reversible... -
Page 8: Product Description
PRODUCT DESCRIPTION (Fig.1) Operating Ratchet Forward and reverse rotation Flexible shaft pusher Switch Battery pack Waterproof plug Page 7... - Page 9 OPERATING INSTRUCTIONS Check before Operation 1. Make sure the battery pack is unplugged. 2. Check if the cable plug is damaged. 3. Check if the waterproof plug on the drum is installed and the wrench is removed. 4. Check if there are damaged machine parts that may pose a threat to your safety.
- Page 10 the groove on the housing and push the slide in place. Then, be sure to insert it to the bottom until there is a clicking sound; otherwise, the battery pack will fall off from the battery pack, which might cause injury to the operator or the others.
- Page 11 Please use clean cloth to wipe the lamp holder in case of scratching; otherwise it will reduce luminance. Light (Fig.3) Switch forward and reverse rotation This switch can control the steering of the flexible shaft: press the L for forward rotation and press the R for reverse rotation, when the driving lever is in the middle and the trigger cannot be pulled.
- Page 12 Flexible shaft auto scaling 1. Press the forward and reverse rotation button L: 1) Press the speed switch lightly, move the handle forward to the F position, and the flexible shaft will be delivered forward (Fig. 5); (Fig.5) 2) Press the speed switch lightly, pull the handle back to the R position, and the flexible shaft will retract backwards (Fig.
- Page 13 pipe, which is inconvenient to observe the condition of the flexible shaft (Fig. 8). (Fig. 8) 2. Press the forward and reverse rotation button L, press the speed switch slightly, pull the handle forward to the F position, and the flexible shaft will be delivered forward to start dredging;...
- Page 14 2. If the flexible shaft is trapped in the pipe: that is, it cannot dredge or be retracted, press the forward and reverse rotation button R, and pull the handle forward to retract the flexible shaft. 3. Notice: Situations of pipe blockage are varied, it is necessary to closely observe the situation of the flexible shaft when using it.
- Page 15 Storage and Maintenance of the Machine Before inspection and maintenance, please switch off tool power and take off the battery pack! After each use, rotate manually the drum until the waterproof plug is exposed out of the housing and remove the waterproof plug with allen wrench. Erect tools with head down so that liquid inside the drum will drain out and reinstall the waterproof plug.
- Page 16 Charging the battery pack 1. Plug charging jack into charging cradle. The green light will illuminate when connected. Green 2. Slide the battery onto the charging cradle. Both red lights will illuminate when properly connected. Note: once fully charged, the both green light will illuminate ENVIRONMENT Should your appliance need replacement after extended use, do not discard it with the household rubbish but dispose of it in an...
