How To Use - Swann SP10100N Manual

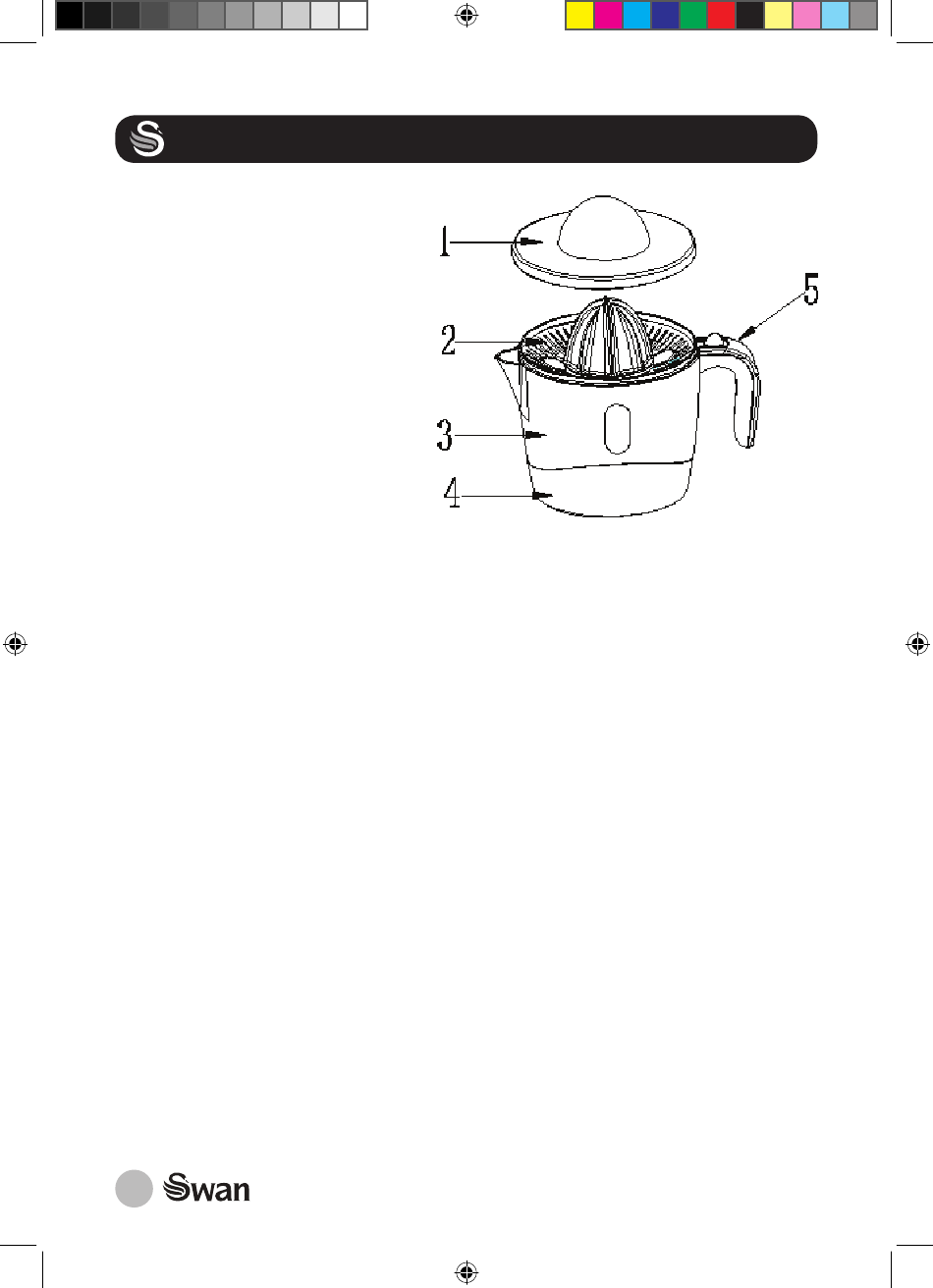

PARTS:
1. Transparent Cover
2. Extractor Cone
3. Container jug
4. Motor base
5. Handle
BEFORE FIRST USE
• Remove all packaging
• Wash the removeable parts in warm soapy water, rinse and dry
thoroughly
• Reassemble the juicer
Operation
• Cut the citrus fruit in half (at right angles to the stalk)
• Connect the citrus press to the mains supply
• Remove the transparent cover
• Press the fruit on to the cone and the machine will start automatically.
The motor will stop when you release pressure on the cone.
• When the juice from the fruit has beed extracted, repeat the process
with another piece.
• Monitor the juice level using the viewing window to the side. Do not allow
the level to exceed max.
• On completion of extraction, pull the sieve pan with extractor cone from
the central shaft.
• Then unlock the container, you must turn it right. Now you can remove
the container with the juice and serve
4
SP10100N_IM.indd 4

HOW TO USE

12/06/2015 12:52
