A S S E M B LY I N S T R U C T I O N S

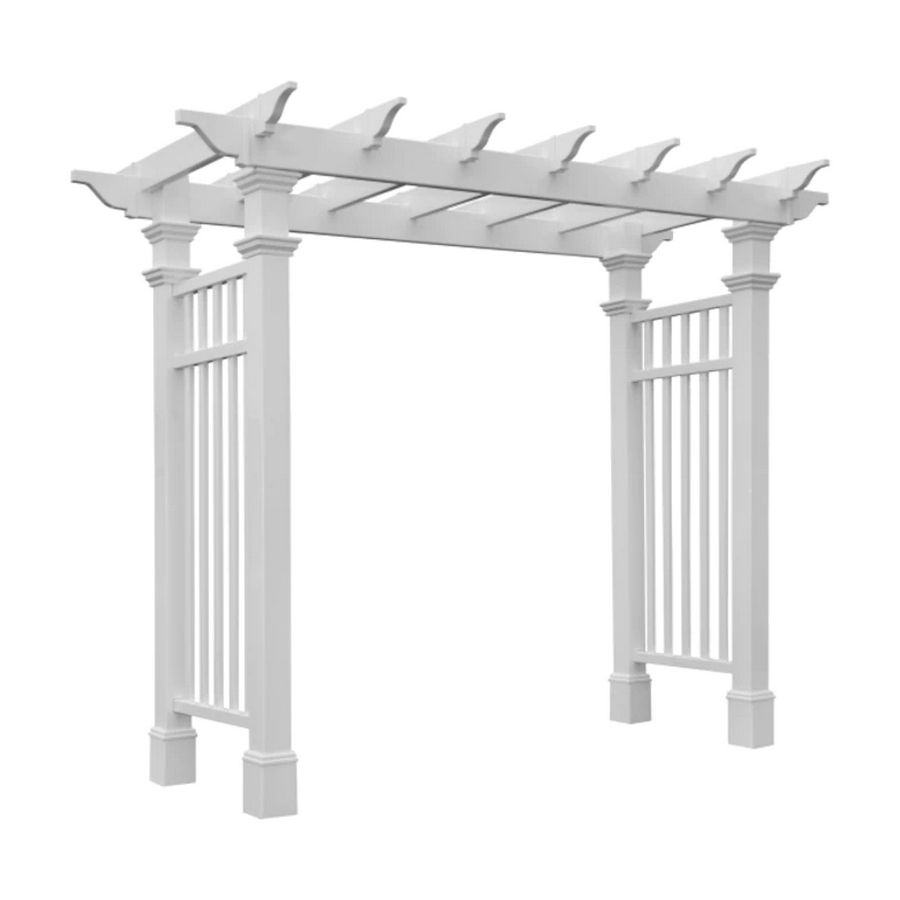

The Richmond Grande Arbor
*Richmond Grande with Trim Kit Shown Above.
Please read through before starting assembly.
IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.
Check Box for These Contents
In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346 (Mon. to Fri. 8:00 AM to 4:00 PM EST).

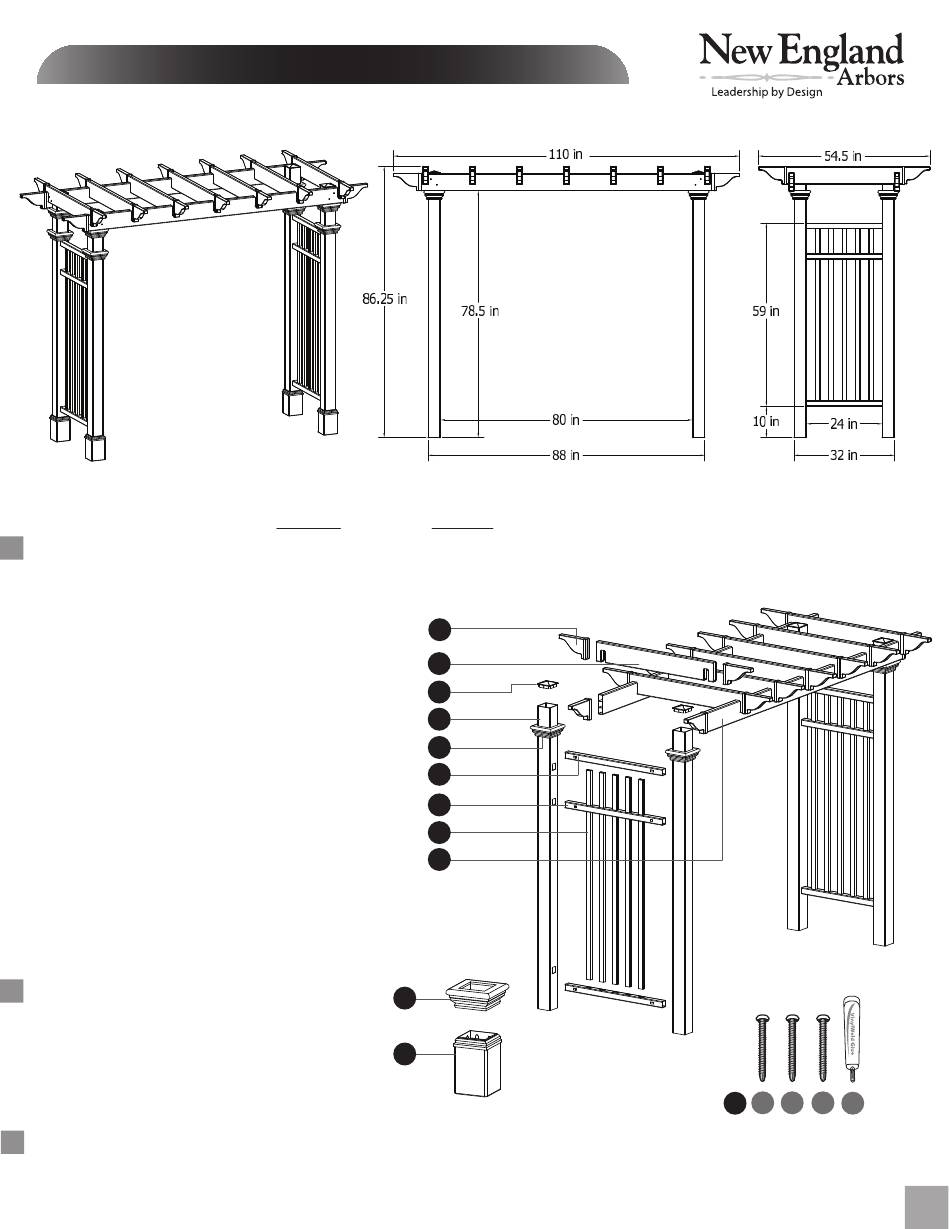

1. Beam and Rafter End Caps (18)
2. Rafters (7)
3. Post Caps (4)
4. Posts (4)
5. Post Trim Caps (4)
6. Side Panel Top and Bottom Rails (4)
7. Side Panel Middle Rails (2)
8. Side Panel Spindles (10)
9. Beams (2)
10. Hardware (in plastic bag)
a)
3" Self-Auguring Stainless Steel Screws (8)
(For fastening Beams to the Posts)
b)
3" Self-Auguring Stainless Steel Screws (8)
(For fastening Rafters to the Posts)
c)
3" Self-Auguring Stainless Steel Screws (14)
(For fastening Rafters to the Beams)
c)
Tube of Vinyl Glue (1)
If you purchased the arbor along with our decorative trim kit,
there will be a separate box with the following contents;
11. Post Trim Caps (4)
12. Base Molds (4)
Tools You Will Need
• Cordless Drill
• Hammer
• Tape Measure
• Level
• Stool or Short Ladder
• Shovel
General Information
• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface (i.e. shipping box) to avoid scratching.
• We recommend an area approx 10'x 8' for unobstructed assembling.
• You should not need to use excessive force when assembling components.
1
2
3
4
5
6
7
8
9
11
12
www.newenglandarbors.com
10 a
d
b
c
Not to Scale
Ver 1.1/072016
1
Advertisement
Table of Contents
Related Manuals for New England Arbors The Richmond Grande Arbor
Summary of Contents for New England Arbors The Richmond Grande Arbor
- Page 1 A S S E M B LY I N S T R U C T I O N S The Richmond Grande Arbor www.newenglandarbors.com *Richmond Grande with Trim Kit Shown Above. Please read through before starting assembly. IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.
- Page 2 S T E P O N E Assemble the Side Panels www.newenglandarbors.com Without inserting them completely, set one end rail and one middle rail into the holes in one of the posts. Slide the spindles through the middle rail and into the bottom rail as shown. Lift up the panel and slip a second end rail onto the ends of the spindles.
- Page 3 S T E P T W O Connect Beams to Side Panels Layout the two beams parallel to one another. Measure 1 1/2” and 3” in from each end of both beams and put a mark. Place two of the rafters onto each end of the beams and position them between the marks.
- Page 4 S T E P T H R E E Attach Post Caps and End Caps Apply a bead of vinyl cement to the inside lip of each post. Slip the caps onto the top end fo each post as illustrated. Allow a few minutes for the cement to cure.
- Page 5 S T E P F O U R Install The Arbor Into Earth with Concrete Footing 24 in. Arbors must be well secured to prevent tipping over from wind load, etc. Carry the side panels to the final location of the arbor and Excavate four holes approximately 36”...
