MODELS:

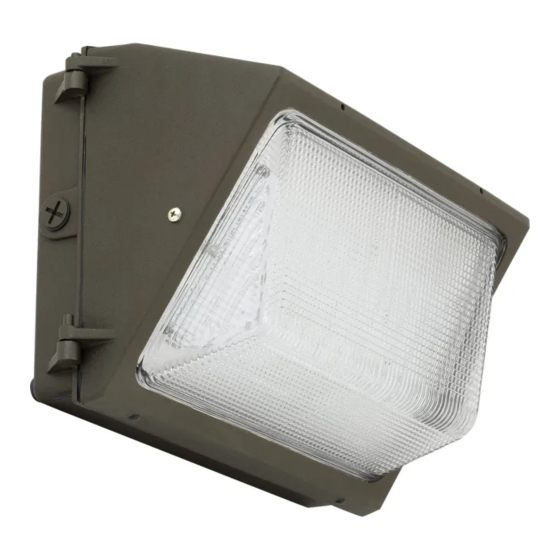

60W LED Wallpack
Model number parameter list:
Item
Model
60W Wallpack
A
CAUTION: This product uses input 100-277VAC driver of wide range voltage, but the actual working voltage depends
on the input voltage of the photocell that installed on the product. Normally the input voltage of photocell is
120V/208V/240V/277V single range, and also have 120-277VAC wide range. Please pay attention when installation
1. Introduction
This LED Wall-Packs light uses the latest in solid state lighting technology for long life, low
maintenance, and high efficiency.
The same as traditional HID lighting, it could be mounted a standard photocell on the enclosure,
to make it completely suitable for street lighting.
An internal power-factor-corrected switch-mode supply allows it to be used from
any nominal 100V-277V, 60Hz AC supply without any variation in light output.
Suitable for use in the following locations:
• Ambient Temp: -30~+40°C
• Wet Locations
Note: Save these instructions for future reference.
2. Install Guidelines
Warning:
To avoid the risk of fire, explosion, or electric shock, this product should be installed,
inspected, and maintained by a qualified electrician only, in accordance with all applicable
electrical codes.
Customer Service: 1-800-447-1723
Power
Input Voltage
Factor
100-277V AC
＞0.9
PAGE 1 of 3

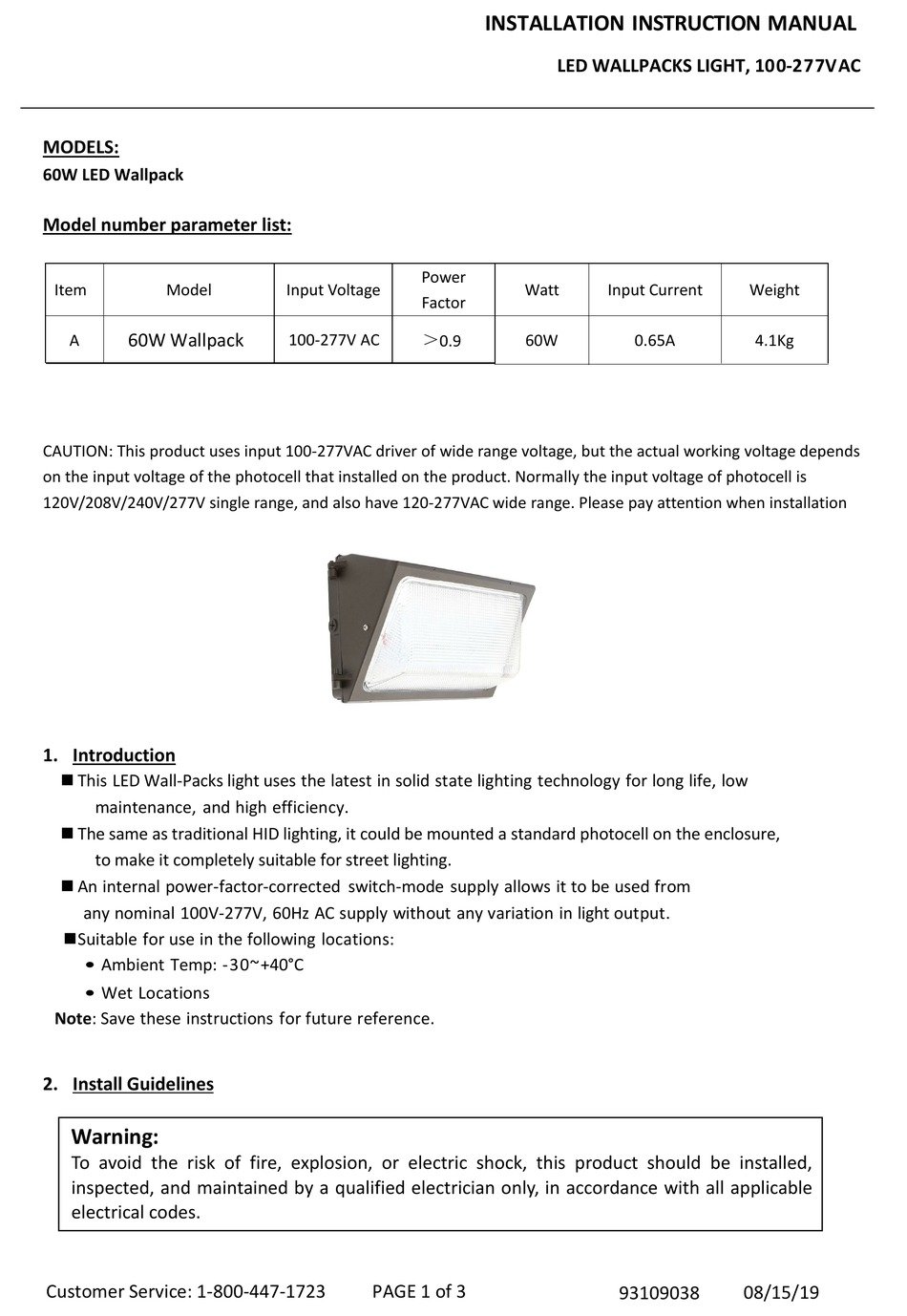

Installation INSTRUCTION MANUAL
LED WALLPACKS LIGHT, 100-277VAC
Watt
Input Current
60W
0.65A
93109038
Weight
4.1Kg
08/15/19
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Progress Lighting PCOWP Series
Summary of Contents for Progress Lighting PCOWP Series
- Page 1 INSTALLATION INSTRUCTION MANUAL LED WALLPACKS LIGHT, 100-277VAC MODELS: 60W LED Wallpack Model number parameter list: Power Item Model Input Voltage Watt Input Current Weight Factor 60W Wallpack 100-277V AC 0.65A 4.1Kg ＞0.9 CAUTION: This product uses input 100-277VAC driver of wide range voltage, but the actual working voltage depends on the input voltage of the photocell that installed on the product.
- Page 2 Warning: To avoid electric shock: •Be certain electrical power is OFF before and during installation and maintenance. •Luminaire must be connected to a wiring system with an equipment-grounding conductor. Warning: To avoid explosion: •Make sure the supply voltage is the same as the rated luminaire voltage. •Do not install where marked operating temperatures exceed the ignition temperature of the hazardous atmosphere.
- Page 3 FIG.3 FIG.4 FIG.5 Step 1 Open the back box by using philips screw driver (FIG.2), refer to size of the diagram to bore the holes on the wall(FIG.1). Step 2 screw the two green/yellow grounding cord to the position which indicated "GR"(FLG.3) Step 3 Install the rear cover on the wall, connect the cable refer to the circuit diagram(FIG.5) Step 4...
