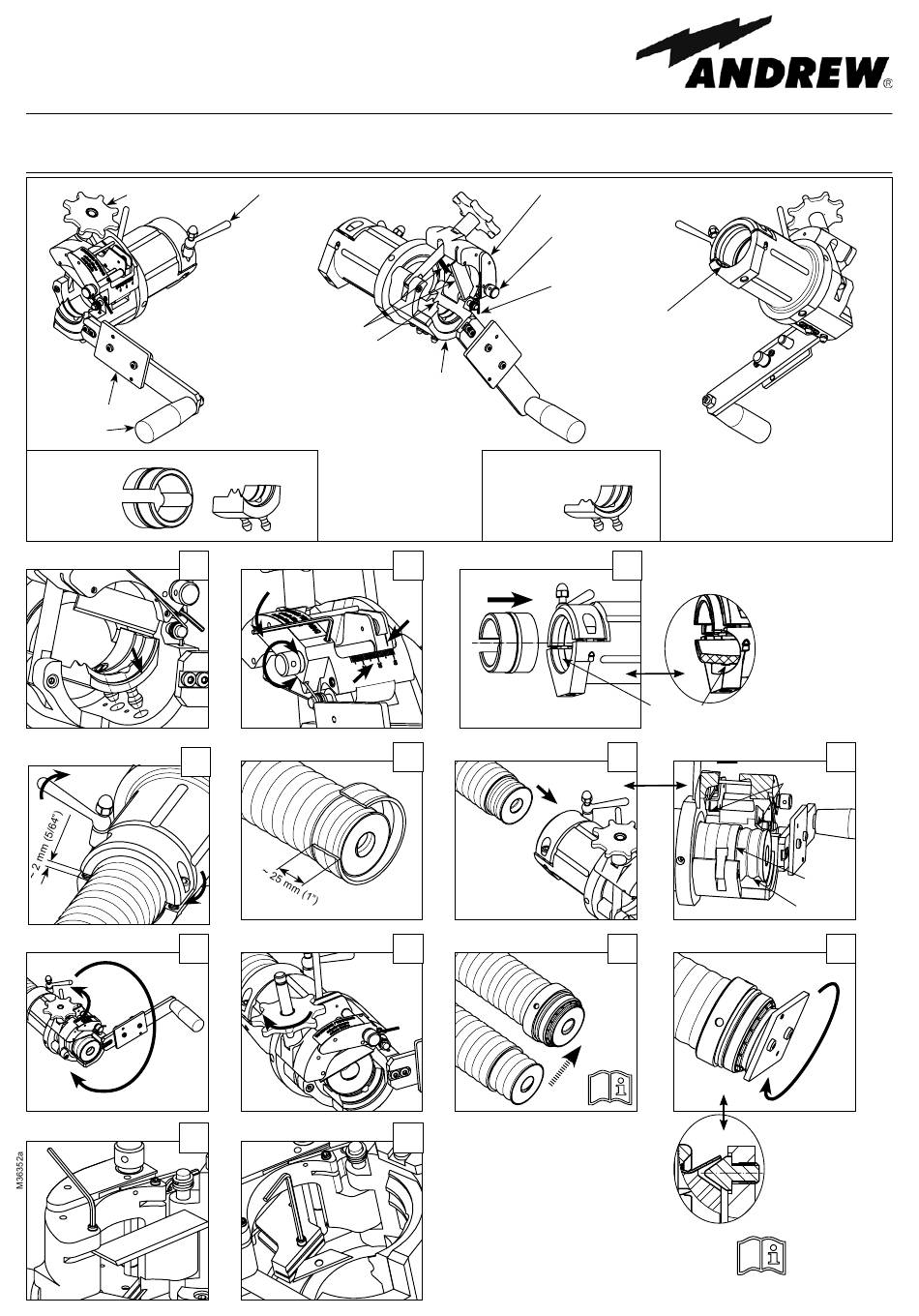

Instructions for Use
CommScope -S Preparation tool
for 1 1/4" and 1 5/8" annularly corrugated cables LDF6-50, AVA6-50 and AVA7-50
FEED HANDWHEEL
FLARE TOOL
CRANK
CLAMPING DEVICE
1 1/4"
1
4
7
11
CLAMPING LEVER
BLADES
COLLET SEGMENT
COLLET SEGMENT
BLADE HOUSING
ADJUSTING SPINDLE
ALLEN KEY
ROTOR
COLLET SEGMENT
1 5/8"
2
5
8
12
A CommScope Company
Bulletin 7717172
Revision A
Andrew Institute offers installation training.
CABLE ENTRY
3
GROOVE
6
9
preperation acc. to
installation bulletin of connector
Page 1 of 2
!
TRIM BLADE
JACKET
COLLET
10
