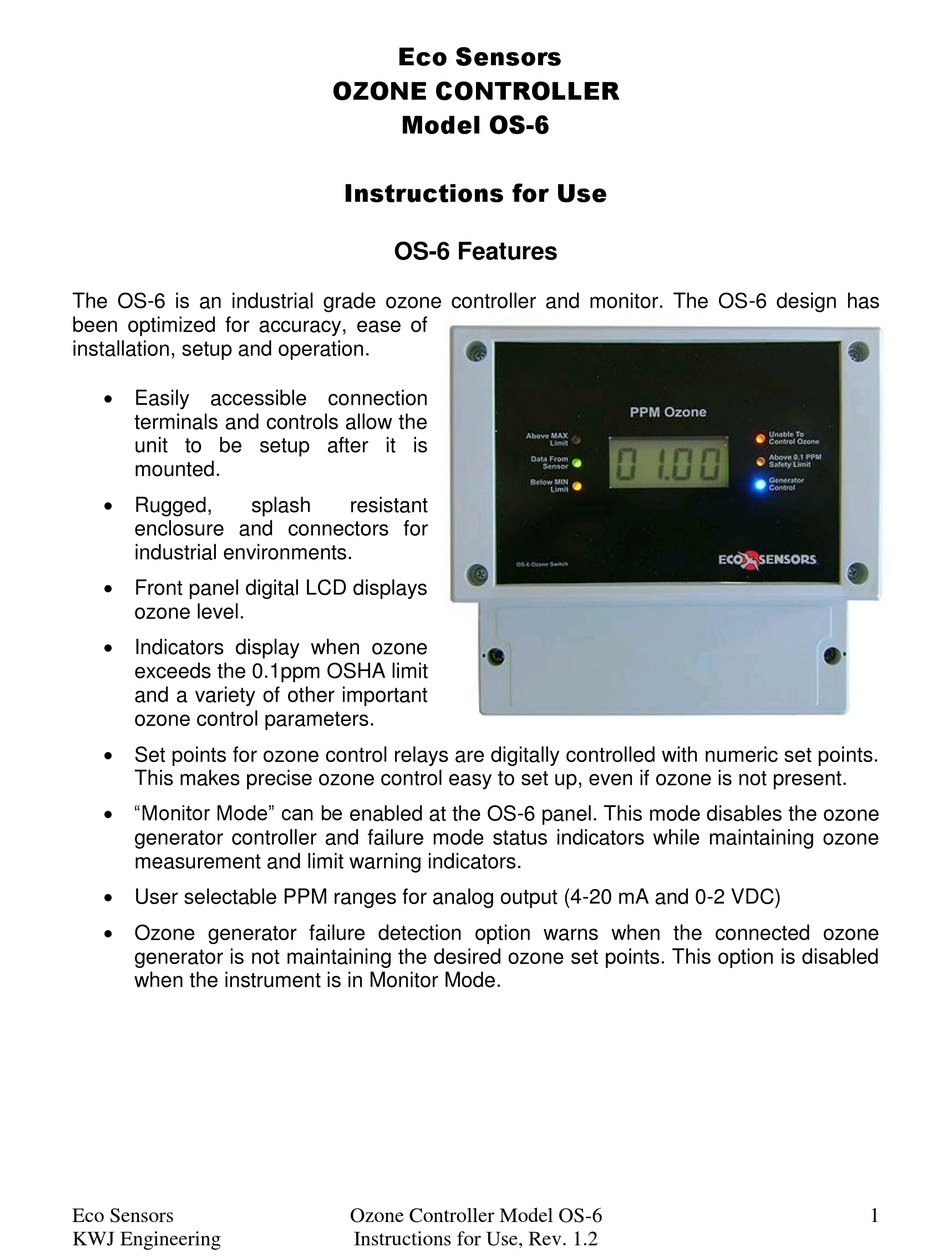

The OS-6 is an industrial grade ozone controller and monitor. The OS-6 design has
been optimized for accuracy, ease of
installation, setup and operation.
 Easily accessible connection
terminals and controls allow the
unit to be setup after it is
mounted.
 Rugged,
splash
enclosure and connectors for
industrial environments.

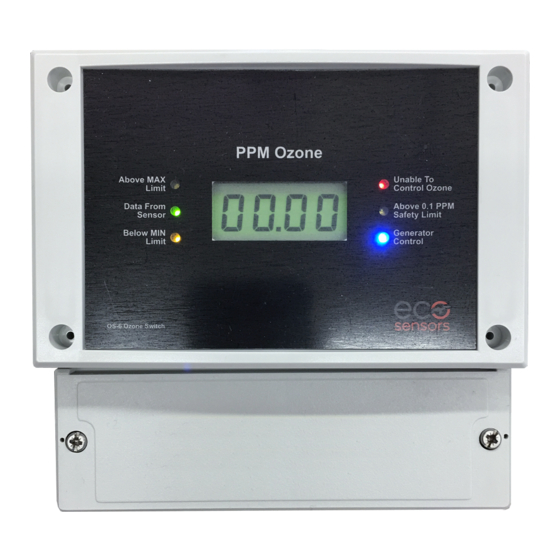

 Front panel digital LCD displays
ozone level.
 Indicators display when ozone
exceeds the 0.1ppm OSHA limit
and a variety of other important
ozone control parameters.
 Set points for ozone control relays are digitally controlled with numeric set points.
This makes precise ozone control easy to set up, even if ozone is not present.
 "Monitor Mode" can be enabled at the OS-6 panel. This mode disables the ozone
generator controller and failure mode status indicators while maintaining ozone
measurement and limit warning indicators.
 User selectable PPM ranges for analog output (4-20 mA and 0-2 VDC)
 Ozone generator failure detection option warns when the connected ozone
generator is not maintaining the desired ozone set points. This option is disabled
when the instrument is in Monitor Mode.
Eco Sensors
KWJ Engineering
Eco Sensors
OZONE CONTROLLER
Model OS-6
Instructions for Use
OS-6 Features
resistant
Ozone Controller Model OS-6
Instructions for Use, Rev. 1.2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OS-6 and is the answer not in the manual?

Questions and answers

Related Manuals for ECO Sensors OS-6

Summary of Contents for ECO Sensors OS-6

  • Page 1 This makes precise ozone control easy to set up, even if ozone is not present.  “Monitor Mode” can be enabled at the OS-6 panel. This mode disables the ozone generator controller and failure mode status indicators while maintaining ozone measurement and limit warning indicators.
  • Page 2 0.1 PPM (OSHA 8hr time-weighted average safety limit). A relay (TB5) engages with this indicator to provide remote alarm capability.  Generator Control: Illuminates when the ozone generator relay is engaged, indicating the ozone generator is on. Eco Sensors Ozone Controller Model OS-6 KWJ Engineering Instructions for Use, Rev. 1.2...

  • Page 3: External Connections

    Use either Terminal Block Descriptions:  TB1: 12-24 VDC POWER: Power input and earth grounding for the OS-6  TB2: ANALOG OUTPUT: 4-20mA and 0-2 VDC to external control equipment. Refer to “Analog Range Selection” for details. Default range is 0-20 PPM.

  • Page 4: Initial Operation

    6’ 3-wire cable connected to TB1 +5V, BLK (grd) and WHT (data). AC Adapter For 120 V, 60 HZ areas, the Eco Sensors P-20 adapter should be used. For all other areas, adapters should be purchased locally that fit local wall sockets and conform to local codes.

  • Page 5: Data Connection

    Data Connection The serial digital data stream from the SM-4 is available for connection to a computer via the OS-6. Data is sent at 1-second intervals. The parameters serial communication parameters are: 9600 bps, 8 data bits, Parity: None, Stop bits: 1, Flow Control: None.

  • Page 6: Important Notes

    0.000 to 999.9 PPM, to accommodate a range of currently available and future sensor modules.  The range of an OS-6 is limited by the sensor module. The OS-6 is shipped from the factory with the Full Scale Range set to match the installed sensor module.

  • Page 7: Service And Maintenance

    Therefore it is more cost effective to replace the SM-X board than to request that it be recalibrated.  Always remove power from OS-6 and SM-4 before connecting SM-4 to OS-6, or replacing SM-X. Follow Diagram in Appendix A to connect power and SM-4 to OS-6.
  • Page 8 Appendix A: Wiring Illustration – SM-4 to OS-6 (OS-6 Rev 4.0): CAUTION: TB1 is to be used to connect signal, ground and 5V power from OS-6.If using 12-24V to power SM-4 module, connect power (V+) to TB2. DO NOT connect 12- 24 V to TB1, this will damage the SM-4 and void warranty.
  • Page 9 APPENDIX B CONNECTING OS-6 RS232 OUTPUT TO COMPUTER Connections: The connections from the OS-6 to the serial COM port of a PC are as follows: OS-6 TB3 COM port DB9 Connector Data Out Pin 2 RxD Pin 5 SGND The output data stream is OUTPUT ONLY at 1-second intervals. There is no input from the PC to the OS-6.
  • Page 10 2. Enter COM port to be used: 3. Enter the serial communications parameters as shown: Eco Sensors Ozone Controller Model OS-6 KWJ Engineering Instructions for Use, Rev. 1.2...
  • Page 11 Output shown: 0.079PPM (79 ppbv), 24 degrees C, 37% Relative Humidity. The OS-6 outputs one data point every second. Eco Sensors Ozone Controller Model OS-6 KWJ Engineering Instructions for Use, Rev. 1.2...
  • Page 12 Computer (Optional) Power Relay* Exhaust Fan (Optional) RS-232 Output Normally Closed OS-6 Normally Open Relay Output *Power relay is required if Ozone generator load exceeds OS-6 relay ratings. Eco Sensors Ozone Controller Model OS-6 KWJ Engineering Instructions for Use, Rev. 1.2...

  • Page 13: Warranty

    If a defect develops during the warranty period, Eco Sensors, in its sole discretion, will repair the instrument or replace it with a new or reconditioned model of equivalent quality.
