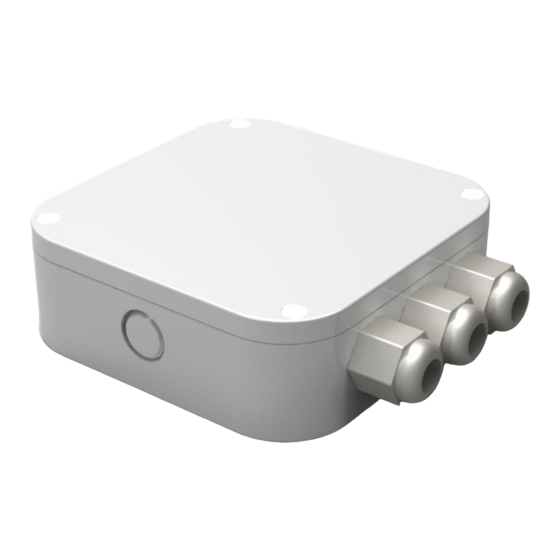

hentech RC01-B Instruction

Description:

1. It can control all AC12V input LED light which is produced in
hentech company.
2. It also can be used for controlling all 12V electric appliances.
3. It is designed for the use of outdoor, so the controller is well for
waterproof. It is no problem if you want to use the controller
indoor.
4. It can be fixed anywhere as you want. Of course, it will work
better if you place it far away from electromagnetism disturb.

Basic Parameter for RC01 (no transformer)

P a c k Vo l u m e :
W e i g h t :
W o r k t e m p e r a t u r e :
W o r k h u m i d i t y :
C o n t r o l D i s t a n c e :

Electric Parameter

I n p u t Vo l t a g e :
I n p u t C u r r e n t :
O u t p u t Vo l t a g e :
O u t p u t C u r r e n t :
D y n a m i c C u r r e n t :
Q u i e s c e n t C u r r e n t :
R F S e n s i t i v i t y ( d B m )
P r o v i d e P o w e r :
RC01-B Instruction
1 3 5 m m ×1 3 5 m m ×4 5 m m
0 . 4 K G
- 4 0 º C ～ + 7 0 º C
1 0 % ～ 9 0 % R H
1 0 0 M
A C 1 2 V
0 . 5 A - 3 0 A ( a c c o r d i n g t o t h e t o t a l L E D l i g h t s y o u u s e )
A C 1 2 V
0 . 5 A - 3 0 A ( a c c o r d i n g t o t h e t o t a l L E D l i g h t s y o u u s e )
A c c o r d i n g t o y o u r l o a d s
< 6 m A
- 1 0 1
3 6 0 VA
( s t a n d a r d : 0 . 5 A )
