vEdge 100b Router
The vEdge 100b router delivers highly secure site-to-site data connectivity to small business and home offices
(SOHO). The vEdge 100b router is a fixed-port-configuration router with the following features:
• Five built-in 10/100/1000 Mbps Ethernet ports
• Encryption and QoS support
• 50-Mbps of unidirectional Internet Mix (IMIX) forwarding traffic (inclusive of encryption)
• Secure identification chip for anti-counterfeit and secure authentication
• External power supply
• Kensington security lock slot to physically lock down the router
• Desktop mount, wall mount, or rack-mountable in a 19-inch rack
• Fanless design
Chassis Views
Figure 1 and Figure 2 show the front and back panels of the vEdge 100b router, indicating the location of the
power interfaces, status indicators, and chassis identification labels.

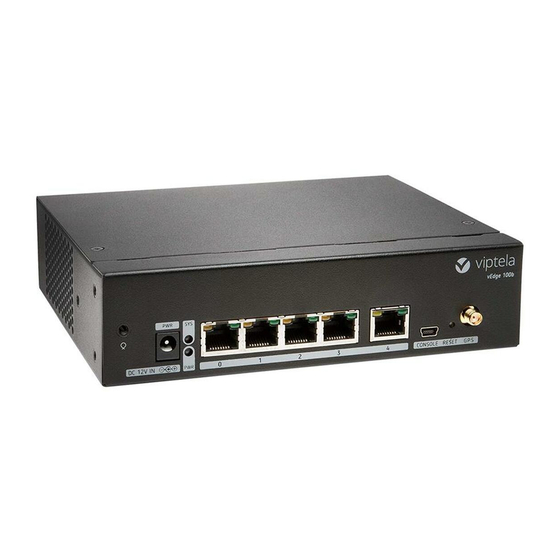

Figure 1: Front Panel of the vEdge 100b Router
vEdge 100b Router
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the vEdge 100b and is the answer not in the manual?

Questions and answers

Related Manuals for Viptela vEdge 100b

Summary of Contents for Viptela vEdge 100b

  • Page 1 • Fanless design Chassis Views Figure 1 and Figure 2 show the front and back panels of the vEdge 100b router, indicating the location of the power interfaces, status indicators, and chassis identification labels. Figure 1: Front Panel of the vEdge 100b Router...
  • Page 2 Maintenance and Troubleshooting, on page 18 Declaration of Conformity The Viptela products are controlled under the Commerce Control List (CCL) of the U.S. Export Administration Regulations (EAR) as networking equipment within the following U.S. Export Control Classification Numbers (ECCN): 5A002, 5D002, and 5E002.
  • Page 3 Exception ENC. As such, they are eligible for export according to Section 740.17 of the EAR. The Viptela solutions and products can be delivered to most end users worldwide, except to entities or end users in the following countries: Cuba, Iran, North Korea, Sudan, and Syria.
  • Page 4 100b Router Components and Specifications Item Specification Typical power consumption 15 Watts Physical Specifications Chassis height 1.75 in. (4.4 cm) Chassis width 6.75 in. (17 cm) Chassis depth 5.5 in. (14 cm) Rack height Can be accommodated in 1 RU Chassis weight 1.75 lb (0.79 kg)
  • Page 5 This article describes the components on the front and rear panels of the vEdge 100b router. Front Panel The front panel of the vEdge 100b router has the DC power socket, chassis status LEDs, and reset button. See Chassis Views for the location of these components.
  • Page 6 Pressing for 10 seconds resets the router and reboots it with factory default configuration. Rear Panel The rear panel of the vEdge 100b router has a small metal-enforced hole for attaching a Kensington lock to secure the router. See Chassis Views for the location of these components.
  • Page 7 Figure 1 provides the pinout information for the RJ-45 ports. The RJ-45 ports comply with the 801 standards. Figure 1: RJ-45 Ports Pinout Information Console Port The console port on the vEdge 100b router is a serial port and is accessible via a USB Mini-B connector. See Figure 2. Figure 2: USB Mini-B Connector A USB Type-A to Mini-B connector cable is shipped with the vEdge 100b router as standard accessory for console port connection.
  • Page 8 15 Watts consumption Planning and Installation This article provides general safety standards to adhere to when installing or connecting a vEdge 100b router or its components. General Safety Standards • Install your vEdge router in compliance with the following local, national, and international electrical codes: •...
  • Page 9 • High humidity conditions can cause moisture to penetrate into the chassis. The device supports 10% to 85% humidity levels, non-condensing. Rack Requirements You can mount the vEdge 100b router in a two-post or a four-post rack. Table 1 provides the rack requirements for the router. Table 5:...
  • Page 10 Unpack the vEdge 100b Router A vEdge 100b router is shipped in a cardboard carton and secured firmly in place with foam packing material. The carton contains a packing list and Quick Start instructions. It is recommended that you do not unpack the router till you are ready to install it.
  • Page 11 The packing list specifies the part number, name, and quantity of each item in the carton. If any part on the packing list is missing, contact your customer service representative or contact Viptela customer support from within the U.S. or Canada by telephone at 800-525-5033 or by email to support@viptela.com .
  • Page 12 • Tape measure or level Mount the vEdge 100b Router in a Rack You can mount the vEdge 100b router on two front posts in a 19-inch rack using simple rack mount ear accessories. To do so: 1. Place the router chassis on the floor or on a sturdy table near the rack.
  • Page 13 100b Router Install the vEdge 100b Router Figure 3: Positioning the vEdge 100b Router in the Rack 1. Secure the mounting ears to the two front posts of the rack using the four rack-mount screws (two on each side) in the packet marked B. Tighten the screws.
  • Page 14 Figure 6: Sliding the Router Chassis onto the Wall-Mount Screws Connect the vEdge 100b Router This article describes how to connect the vEdge 100b router to an AC power source and to a management console. vEdge 100b Router...
  • Page 15 To connect the vEdge 100 router to an AC power source, plug one end of the AC power adapter into the front of the router, and plug the other end into an AC power outlet as shown in Figure 1. Figure 1: Connecting AC Power Supply to a vEdge 100b Router You can download the Windows driver here .
  • Page 16 100b Router vEdge 100b Router Default Configuration vEdge 100b Router Default Configuration Default Configuration for Software Releases 16.1 and Later For Releases 16.1 and later, the default configuration file looks like this: vEdge100b# show running-config system vbond ztp.viptela.com auth-order local radius tacacs...
  • Page 17 100b Router vEdge 100b Router Default Configuration vpn 512 interface ge0/0 ip address 192.168.1.1/24 no shutdown Default Configuration for Software Releases 15.4 and Earlier For Releases 15.4 and earlier, the default configuration file looks like this: vEdge100b# show running-config system vbond ztp.viptela.com...
  • Page 18 Hardware Alarms Hardware alarms on the vEdge 100b router are predefined and are triggered by a physical condition on the router such as a power supply failure, excessive component temperature, or fan failure. The vEdge 100b router triggers the following types of hardware alarms: •...
  • Page 19 LEDs The chassis LEDs located on the front panel of the vEdge 100b router indicate the status of the router. If there are one or more major alarms active in the router, the Status LED is lit red. See Front and Rear Panel Components for details of the LEDs and the status they indicate.
  • Page 20 This article describes how to return a vEdge router or a hardware component to Viptela for repair or replacement. Locate Serial and Model Number To return a vEdge router or a hardware component to Viptela, you need the serial and model number of the router or the component being returned.
  • Page 21 Return Hardware Obtain an RMA Number If you are returning a vEdge router or a hardware component to Viptela for repair or replacement, contact the Viptela Customer Support team to open a support case and obtain a Return Materials Authorization (RMA) number.
  • Page 22 100b Router Return Hardware If the router is installed in a rack using the rack-mount kit from Viptela, remove the front stopper screwed along the front side of the rack-mount tray. b. Then remove the rack-mount tray from the rack by having one person support the weight of the rack-mount tray while a second person unscrews the rack-mount screws.
