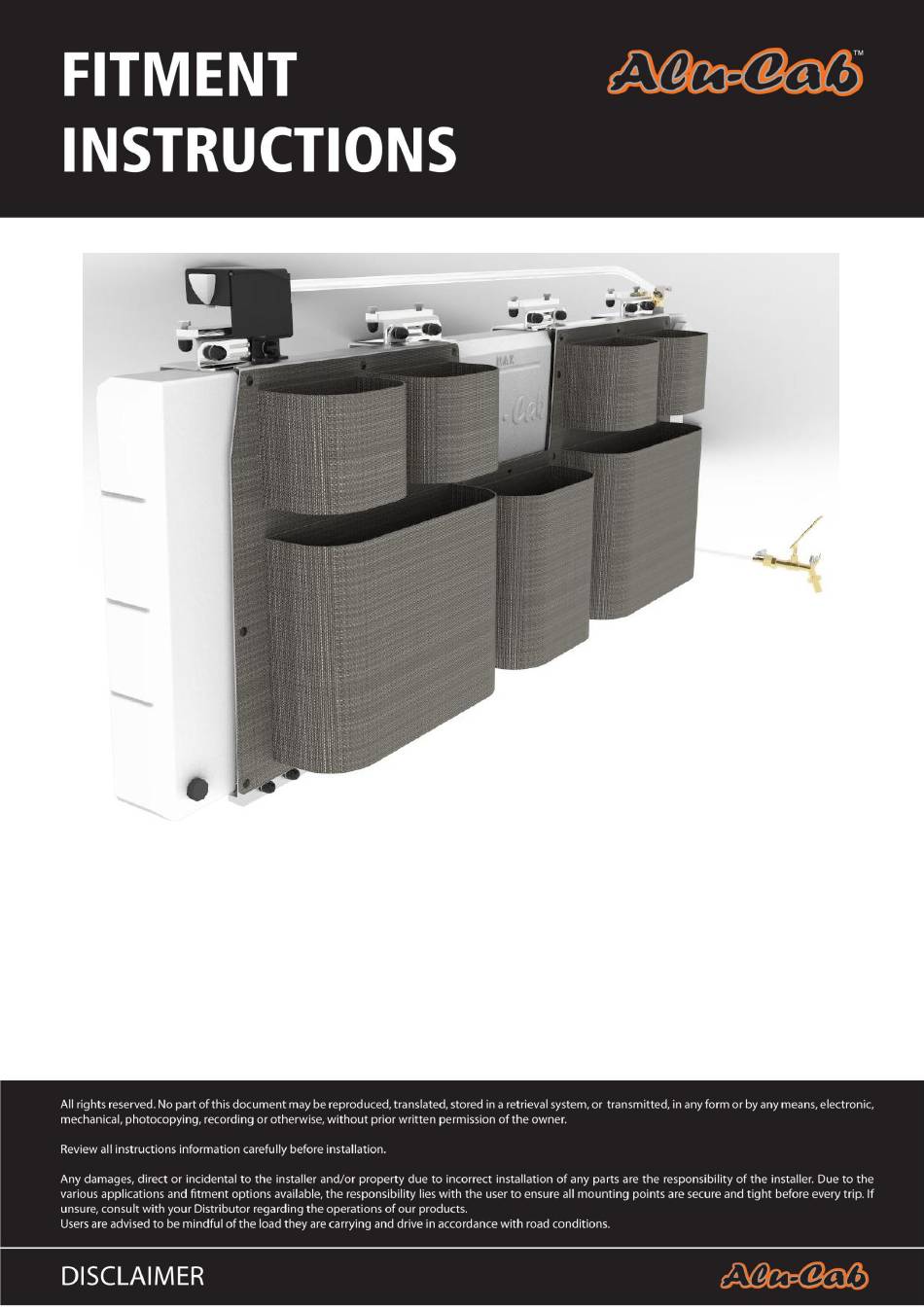

- Page 1 Canopy Camper Water Tank Canvas Bag Kit (CC-A-WT-CB-KIT)
-
Page 2: Hardware Required
2X 13MM SPANNERS THREAD TAPE/THREAD SEALANT 13MM SOCKET AND RATCHET DRILL FLAT SCREW DRIVER 20MM DRILL BIT/HOLESAW PHILLIPS SCREW DRIVER Hardware Required: (Included with the Canopy Camper Water Tank Canvas Bag Kit) ITEM DESCRIPTION CC-A-WT-CB-KIT CANOPY CAMPER WATER TANK CANVAS BAG KIT... - Page 3 Component Identification (Not to Scale) CC-A-WT-CB-KIT: CANOPY CAMPER WATER TANK CANVAS BAG KIT (PREASSEMBLED)
- Page 4 2.4 Tank and Top Down Mounting Brackets The next step to install the Canopy Camper Water Tank Kit is to fit and assemble the Top Down Mounting Bracket assembly and place the Water Tank: Place the Water Tank as shown...
- Page 5 Place the Top Mounting Down Brackets over the Water Tank, between the Tank Ridges, as shown. Shift and position the Bottom, Top and Down brackets to correspond and align centrally with the Water Tank recesses Place 4x M8 Flat Washers on the corresponding M8 Screws as shown Secure the Top Mounting Down Brackets at the top using 4x M8 Nyloc Nuts...
- Page 6 2.5 Water Tank Canvas Bag and Breather Assembly The next step to install the Canopy Camper Water Tank Kit is to fit the Canvas Bag assembly and Breather assembly: Place the Water Tank Cover Plate and Canvas Bag assembly over the corresponding Screw fasteners as shown...
- Page 8 Place the Water Tank Breather assembly as shown, and screw on the connector to the Water Tank Bulk Head Fitting...
- Page 9 Place M8 Flat Washers over the shown Screw fasteners Secure the shown fasteners with the remaining M8 Nyloc Nuts...
- Page 10 Fully tighten all Nyloc Nuts to secure the Water Tank in place...
- Page 11 Place Plastic Nut Caps over all the exposed M8 Nuts and Screws 2.6 Water Tank Tap Assembly The last step to install the Canopy Camper Water Tank Kit is to fit the Tap Assembly:...
- Page 12 Add thread tape or thread sealant to the Male threaded hose fitting on the Tap Assembly and screw it into the desired Outlet on the Water Tank. Next, using your Drill, drill a 20mm hole in the desired location for your Tap, unscrew the Tap from its hose connector and screw it back through the drilled hole, sealing with thread tape or thread sealant.
