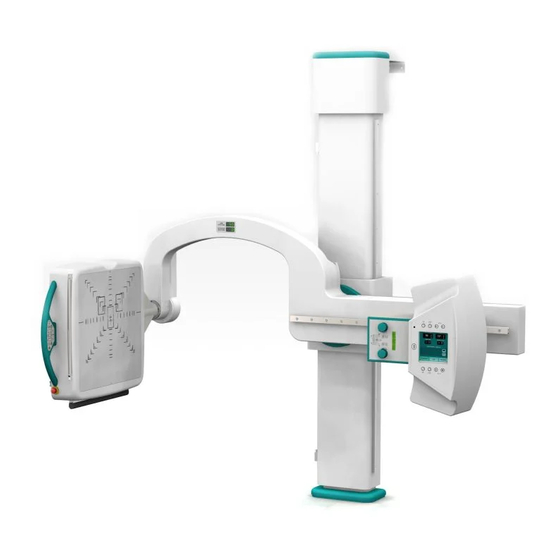

Viztek Ultra U-Arm Install Manual
  1. Manuals
  2. Brands
  3. Viztek Manuals
  4. Medical Equipment
  5. Ultra U-Arm
  6. Install manual

Viztek Ultra U-Arm Install Manual

Hide thumbs Also See for Ultra U-Arm:
Table of Contents

Advertisement

Quick Links

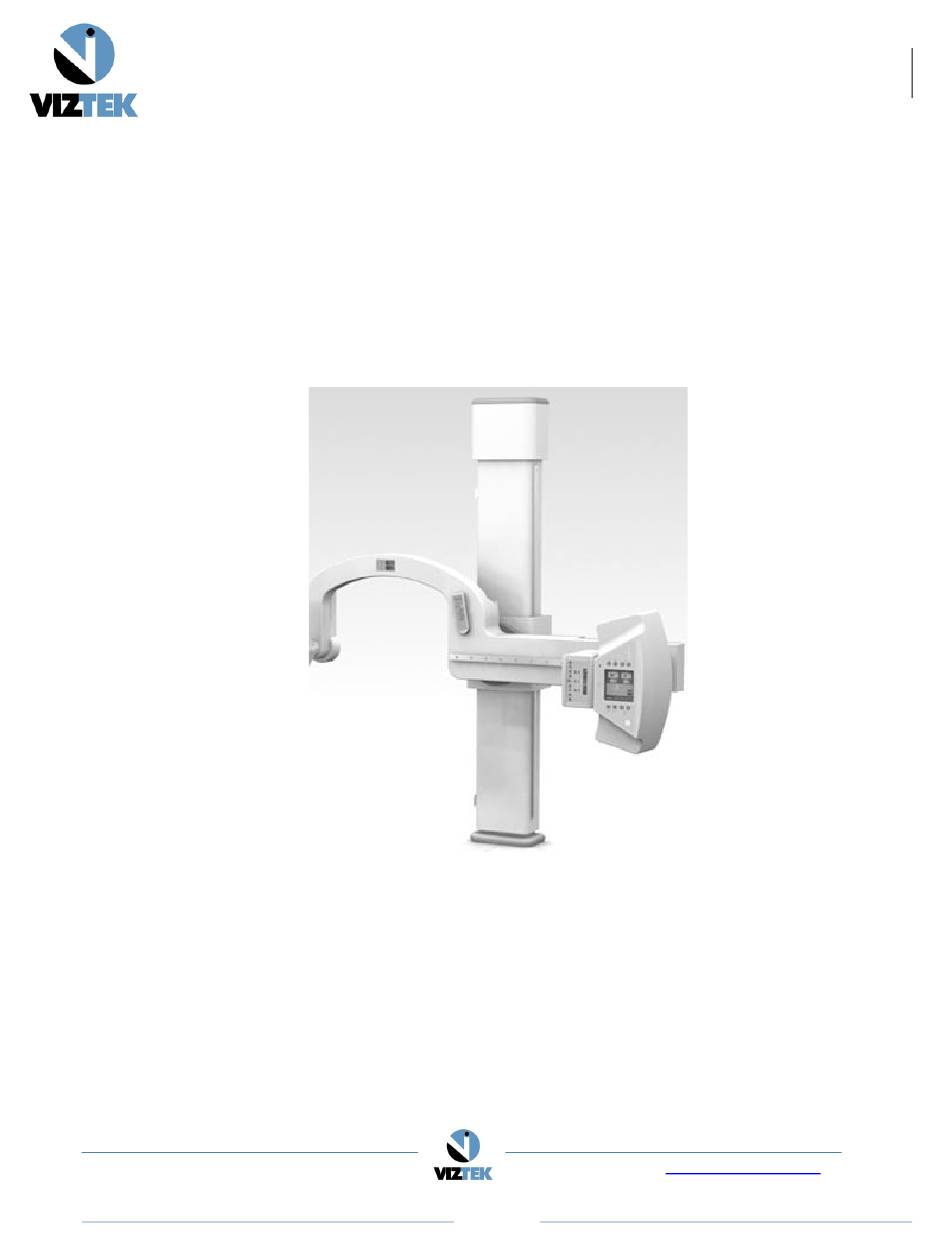

Ultra U-arm Installation Guide v2.2 1
Ultra U-Arm Install Guide
Customer Support
1.800.366.5343 –
support@viztek.net
VZUG0014201508-2.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ultra U-Arm and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Viztek Ultra U-Arm

Summary of Contents for Viztek Ultra U-Arm

  • Page 1 Ultra U-arm Installation Guide v2.2 1 Ultra U-Arm Install Guide Customer Support 1.800.366.5343 – support@viztek.net VZUG0014201508-2.2...

  • Page 2: Table Of Contents

    Ultra U-arm Installation Guide v2.2 2 Table of Contents PANEL SYSTEM PARTS: ....................4 STAND INSTALL: ....................... 5 GENERATOR INSTALLATION: ..................10 ....................11 HREE HASE ENERATORS PANEL INTERFACE WIRING: ..................13 ........................13 IRING AYOUT GENERATOR JUMPER CONFIGURATION: ..............16 ..............
  • Page 3 Ultra U-arm Installation Guide v2.2 3 GENERATOR J4 WIRING ....................36 ....................... 36 ROUBLESHOOTING INSTALL GUIDE CHECKLIST ..................37 TESTING AND CHECKS TO COMPLETE PRIOR TO APPLICATIONS ARRIVAL Customer Support 1.800.366.5343 – support@viztek.net VZUG0014201508-2.2...

  • Page 4: Panel System Parts

    1 - 215 Line, 8:1 Grid possibly with Frame (Not Shown) 1 - USB to Serial adapter 1 – Computer Supply Cable **Make sure all components are present** Note: Viztek does not use the On/Off board provided with the generator. Customer Support 1.800.366.5343 – support@viztek.net...

  • Page 5: Stand Install

    Ultra U-arm Installation Guide v2.2 5 Stand Install: 1. With the Positioner on the Pallet, carefully remove the wrapping from the Tube-Collimator Support. This part includes the Positioner Control. Unpack tube mount 2. Install the Tube-Collimator Support to the Upper Carriage of the Swivel Arm using the four screws pre-attached to the Upper Carriage (torque 20Nm/ 177 Lbf.in).
  • Page 6 Ultra U-arm Installation Guide v2.2 6 5. Anchor the Wall Support to the wall. 6. Perform the leveling adjustments on Column Base and on the Column Upper Support. Make sure that the Column is correctly leveled and firmly tighten. Anchor the Column Base to the floor.
  • Page 7 Ultra U-arm Installation Guide v2.2 7 14. Re-install the Positioner Control (Monitor). 15. Pull the Lever of the Tube-Collimator Assembly and carefully turn the Tube-Collimator Assembly upside down (180o), this will facilitate the Collimator installation. 16. For the collimator to rotate to position "Ø", two of the four tabs retract to allow to rotation.
  • Page 8 Ultra U-arm Installation Guide v2.2 8 21. Route the cables connected to the X-ray Tube to the Generator. Fasten the Stator and HV cables to Upper Carriage of the Swivel Arm with the Clamp at its lateral side. 22. Turn the Unit ON with the Switch located at the Control Box door.
  • Page 9 Ultra U-arm Installation Guide v2.2 9 27. Remove the covers of the Detector Assembly. 28. Remove the 8 screws attached to the Delta Support. 29. Pick up the Detector assembly support and guide all the cables through its hole to install the Detector Assembly Support on the Delta Support.

  • Page 10: Generator Installation

    Ultra U-arm Installation Guide v2.2 10 Generator Installation: Prior to beginning installation, inspect the site and make sure that the X-ray room complies with Pre- installation requirements, such as: • Incoming Line Power. • Main Switch and Safety Devices. • Conduits.

  • Page 11: Three Phase Generators

    Ultra U-arm Installation Guide v2.2 11 Three Phase Generators 1. For Three Phase Generators, connect the Power wires L1, L2 and L3 to the Fuse Holders of F3, F4 and F5 (right side of the Cabinet), and the Ground wire to the Ground Studs in the Cabinet Frame (located above these fuses or close to the right side of the HV Transformer).
  • Page 12 Ultra U-arm Installation Guide v2.2 12 Customer Support 1.800.366.5343 – support@viztek.net VZUG0014201508-2.2...

  • Page 13: Panel Interface Wiring

    Ultra U-arm Installation Guide v2.2 13 Panel interface Wiring: Power J4 Plug USB to Serial DB9 to Barrel 50’ Serial Supply Cable Panel Generator DB 15 panel to NIC Card Power Supply Cat 5 crossover Wiring Layout  75’ Cat5 cable runs from Panel to PC.
  • Page 14 Ultra U-arm Installation Guide v2.2 14 DB9 to Barrel Connector will run from J4 in the Generator to the Power Supply box marked for 24VDC. To Generator If J4 is not in system go to J4 In Generator page 32 for hard wiring in the connection.
  • Page 15 Ultra U-arm Installation Guide v2.2 15 DB9 to DB15 cable will run from Panel (15 pin) to Power To P.S. Supply (9 pin). To Panel Both DB9 plugs are 24VDC, only one is used unless multiple panels are being installed.

  • Page 16: Generator Jumper Configuration

    Ultra U-arm Installation Guide v2.2 16 Generator Jumper Configuration: Jumpers to be installed in the Generator 3TS1-2 to 3TS1-7AEC Adapt board TS1-7 to TS1-10 Install Jumper from 3TS1-22 to 3TS1-23 as needed for Door Interlock Make sure SW2-3 on ATP Board is in Service Mode...

  • Page 17: Generator Tech Service Configuration

    Ultra U-arm Installation Guide v2.2 17 Generator Tech Service Configuration: Workstation Setup 1. From the PC (MPU), select the shortcuts window, then select TechService. The Generator Service Mode screen displays. Figure 1 2. On Generator Service Mode screen, choose Configuration. The Configuration screen displays. Figure a.

  • Page 18: Extended Memory Setup

    Ultra U-arm Installation Guide v2.2 18 Extended Memory Setup Complete the following steps: o Select MANUAL CALIBRATION o Select past the highest mA station. o E02: Tube Type = (Tube chart on page 39 of the configuration tab in the generator manual) ...

  • Page 19: Generator Auto Calibration

    Ultra U-arm Installation Guide v2.2 19 Generator Auto Calibration Complete the following steps: 1. Select Auto Calibration. 2. Select workstation (WS3 / Direct mode). 3. Angle Tube away from detector. 4. Click OK. 5. Confirm or leave the Auto-calibration by pressing the respective button (Yes or No) on the new screen.
  • Page 20 Ultra U-arm Installation Guide v2.2 20 Figure 24 Figure 25 11. Press Prep and Expose from the hand switch. (Prep may take up to 45 seconds to start Calibration). 12. AutocalOK replaces AutoCalibration when the calibration is completed for the selected focal spot.

  • Page 21: Stand Calibration

    Ultra U-arm Installation Guide v2.2 21 Stand Calibration Hold the Positioning button for 5 seconds. Password: 2434 Customer Support 1.800.366.5343 – support@viztek.net VZUG0014201508-2.2...

  • Page 22: Positioner Calibration

    Ultra U-arm Installation Guide v2.2 22 Positioner Calibration 1. Change Units from CM to Inch 2. Set Safety Distance for 3.9”, Press SET 3. Room Height to verified Room Height, Press SET 4. Detector Width Left to 10.6”, Press SET 5.

  • Page 23: Arm Angle

    Ultra U-arm Installation Guide v2.2 23 Arm Angle Arm should already be level and in 90 degree position. Press Set and move to 0 degree. Press Move on Arm Angle Calibration Screen. If both 90 and 0 had minimal changes to presets then -30 and 120 may not need to be calibrated if no digital level is available.

  • Page 24: Sid Calibration

    Ultra U-arm Installation Guide v2.2 24 SID Calibration Measure with the Collimator Metric tape and add 5 cm (2.0”) at each SID 100 cm (40”) and 180 cm (72”). Measure 38” to enclosure top for 40” to allow 2“ for inside enclosure to detector top.

  • Page 25: Panel Setup And Calibration

    Ultra U-arm Installation Guide v2.2 25 Panel Setup and Calibration: Launch Ultra Create a new patient All of the red boxes must have information populated Customer Support 1.800.366.5343 – support@viztek.net VZUG0014201508-2.2...
  • Page 26 Ultra U-arm Installation Guide v2.2 26 Select Select in the lower right hand corner. Choose tab. Customer Support 1.800.366.5343 – support@viztek.net VZUG0014201508-2.2...
  • Page 27 Ultra U-arm Installation Guide v2.2 27 Select DEFAULT. Make sure Panel IP and Synchronization Com port (Tripp Lite USB to Serial). NIC IP should be set to 192.168.37.131 Customer Support 1.800.366.5343 – support@viztek.net VZUG0014201508-2.2...
  • Page 28 Ultra U-arm Installation Guide v2.2 28 Scroll down in the panel column to the following window is populated. Select . After pulling darks from the panel, when prompted, set generator parameters for the following uG exposures. Shoot xray No grid, 72” , 1.5mm copper ...
  • Page 29 Ultra U-arm Installation Guide v2.2 29 Customer Support 1.800.366.5343 – support@viztek.net VZUG0014201508-2.2...

  • Page 30: Aec Calibration - Sedecal Generator

    Ultra U-arm Installation Guide v2.2 30 AEC Calibration – Sedecal Generator Calibration Setup: Make sure Jumper was installed in the Generator on the AEC adaptation board TB1-7 to TB1-10 1. Set the x-ray system, to the following conditions: a. SID =53.1 in.
  • Page 31 Ultra U-arm Installation Guide v2.2 31 2. Create a Test Patient 3. Set up a technique of 70 KVp, 320mA, 400 mS BUT, Center cell, 0 Density, 53.1 inch SID, grid Customer Support 1.800.366.5343 – support@viztek.net VZUG0014201508-2.2...
  • Page 32 Ultra U-arm Installation Guide v2.2 32 4. Take an exposure. 5. After the processing is finished, right click on Annotations and select Mouse ROI. Customer Support 1.800.366.5343 – support@viztek.net VZUG0014201508-2.2...
  • Page 33 Ultra U-arm Installation Guide v2.2 33 6. Draw a box in the center of the Plexiglas image about 3 inches x 3 inches. 7. Data appears after drawing the box. An EI (Exposure Index) number is at the bottom. Customer Support 1.800.366.5343 –...
  • Page 34 Ultra U-arm Installation Guide v2.2 34 Example: This number should be between 650 -750. Record this number for reference. If not, adjust the potentiometer on the Pre-amp. **Claymont Ion Chambers have only a Master Adjustment for all 3 chambers. (AID Chambers must be equalized) 8.

  • Page 35: Anti Crushing Verification And Adjustments

    Ultra U-arm Installation Guide v2.2 35 Anti Crushing Verification and Adjustments To make sure the anti-crushing adjustments are correct: 1. Remove the cover of the Anticrushing PCB located at the Arm Carriage (back of the column). 2. Measure with a multimeter between TP12 and TP9 (GND) and adjust 4.5V with a flat screwdriver in R3.
  • Page 36 Pin 4 - 3TS1-17 (Bucky Start 24vdc) Troubleshooting  Make sure U24 Chip on ATP Board is V7R1b39 , If not call Viztek to obtain proper chips.  Make sure Tripp Lite USB to Serial com port is correct in Device Configuration ...
  • Page 37 Ultra U-arm Installation Guide v2.2 37 Install Guide Checklist Unpack Items and make sure items received. Mount Tube Neck to Stand Bolt Front Control Panel to Tube Neck Stand Sedecal Stand up and level Bolt stand to the floor and wall...
  • Page 38 Ultra U-arm Installation Guide v2.2 38  WS 1 Tube 1 Bucky 1 IC 1 (if in J1 on the AEC Adaption Board in Generator)  WS 3 Tube 1 Direct IC 1 (if in J1 on the AEC Adaption Board in Generator) Make sure Extended Memory Settings (Manual Cal, MA adjusted to highest position.)
  • Page 39 Ultra U-arm Installation Guide v2.2 39 Testing and checks to complete prior to Applications arrival Set up the PACS  Make sure images were sent and received to PACS Set up the HIS/RIS  Make sure we can ping worklist or pull a worklist if working...
