SJE Rhombus Tank Alert Installation Instructions

®
TANK ALERT
®
The Tank Alert ABP indoor alarm panel provides a reliable means of controlling a 120 VAC single phase pump in water and
wastewater installations. Two switches, one for the pump and one for the high water alarm, are spliced together for easy installation.
The Tank Alert ® ABP alarm panel horn sounds when a potentially threatening liquid level condition occurs. The horn can be turned
off, but the alarm light remains on until the condition is remedied. Once the condition is cleared the alarm panel will automatically
reset. A green "Power On/Pump Run" light indicates 120 VAC primary power to the alarm, and also flashes to indicate the pump
run status. Low battery chirp feature indicates when battery should be replaced.
®

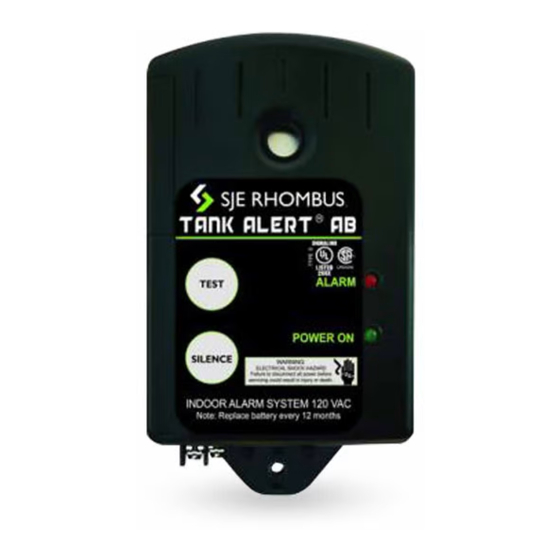

TANK ALERT ABP ALARM PANEL
Patent Pending
•
Periodically inspect the product. Check that the cable has not become worn or that the housing has not been damaged so as to impair the protection of the
product. Replace the product immediately if any damage is found or suspected.
•
Periodically check to see that the floats are free to move and operate the switches.
•
®
Use only SJE-Rhombus replacement parts.
•
For indoor use only.
•
Pump must have integral thermal overload protection.
SJE-RHOMBUS ® warrants to the original consumer that this product
shall be free of manufacturing defects for three years after the date of
consumer purchase. During that time period and subject to the condi-
tions set forth below, SJE-RHOMBUS
original consumer, any component which proves to be defective due to
defective materials or workmanship of SJE-RHOMBUS
ELECTRICAL WIRING AND SERVICING OF THIS PRODUCT MUST
BE PERFORMED BY A LICENSED ELECTRICIAN.
THIS WARRANTY DOES NOT APPLY: (A) to damage due to lightning or
conditions beyond the control of SJE-RHOMBUS
malfunctions resulting from failure to properly install, operate or main-
tain the unit in accordance with printed instructions provided; (C) to
failures resulting from abuse, misuse, accident, or negligence; (D) to
units which are not installed in accordance with applicable local codes,
ordinances, or accepted trade practices, and (E) to units repaired and/
or modified without prior authorization from SJE-RHOMBUS

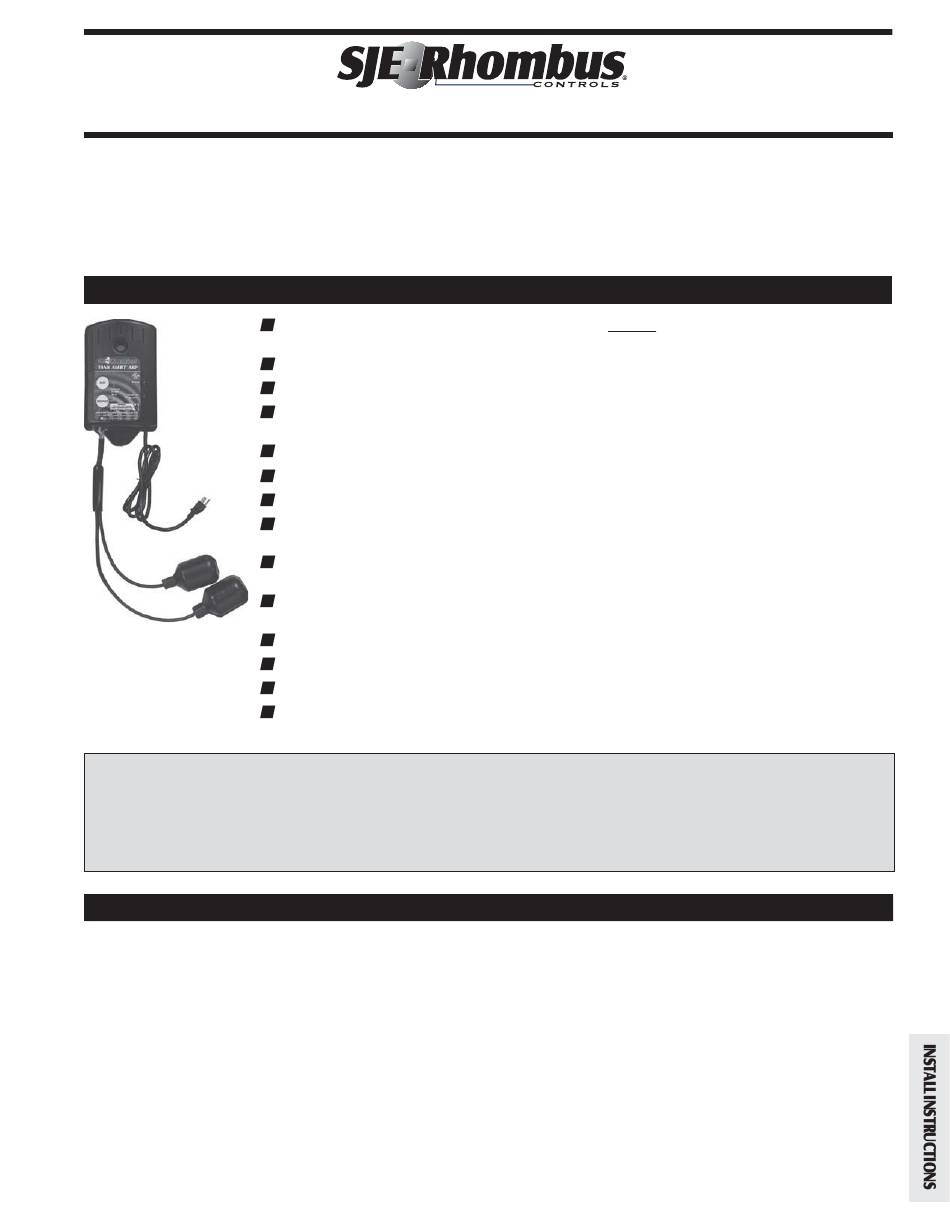

ABP alarm panel Installation Instructions
120 VAC Model Voltage - (circuits not supervised) Primary: 120 VAC, 60 Hz, 2.4 watts maximum
Operating Voltage: 9 VDC
NEMA 1 enclosure rated for indoor use.
Automatic alarm reset.
Red "alarm" light and green "power on/pump run" light, alarm "test" switch, and horn "silence"
switch.
6 foot (1.8 meter) power cord
Alarm horn sounds at 87 decibels at 10 feet (3 meters).
Manual pump run operation.
If primary power fails, the alarm panel continues to work due to battery backup feature.
Battery Backup Power - (circuit not supervised) 9 VDC
Complete package includes two factory-spliced SJE MilliAmpMaster
feet (3.05 meters) of cable and mounting clamp.
Switching mechanism operates on low voltage and is isolated from the power line to reduce the
possibility of shock.
Receptacle on bottom to plug in pump power cord.
Low battery chirp.
External terminal block for easy float switch installation.

Three-year limited warranty.

PREVENTATIVE MAINTENANCE

®
SJE-RHOMBUS THREE-YEAR LIMITED WARRANTY
®
will repair or replace, for the
®
.
®
; (B) to defects or
® .
Some states do not allow limitations on how long an implied warranty
lasts, so the above limitation may not apply to you. Some states do
not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
TO OBTAIN WARRANTY SERVICE: The consumer shall assume all
responsibility and expense for removal, reinstallation, and freight. Any
item to be repaired or replaced under this warranty must be returned
®
to SJE-RHOMBUS , or such place as designated by SJE-RHOMBUS
ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS ARE
LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. SJE-RHOM-
®
BUS SHALL NOT, IN ANY MANNER, BE LIABLE FOR ANY INCIDENTAL
OR CONSEQUENTIAL DAMAGES AS A RESULT OF A BREACH OF
THIS WRITTEN WARRANTY OR ANY IMPLIED WARRANTY.
™ control switches with 10
®
.
