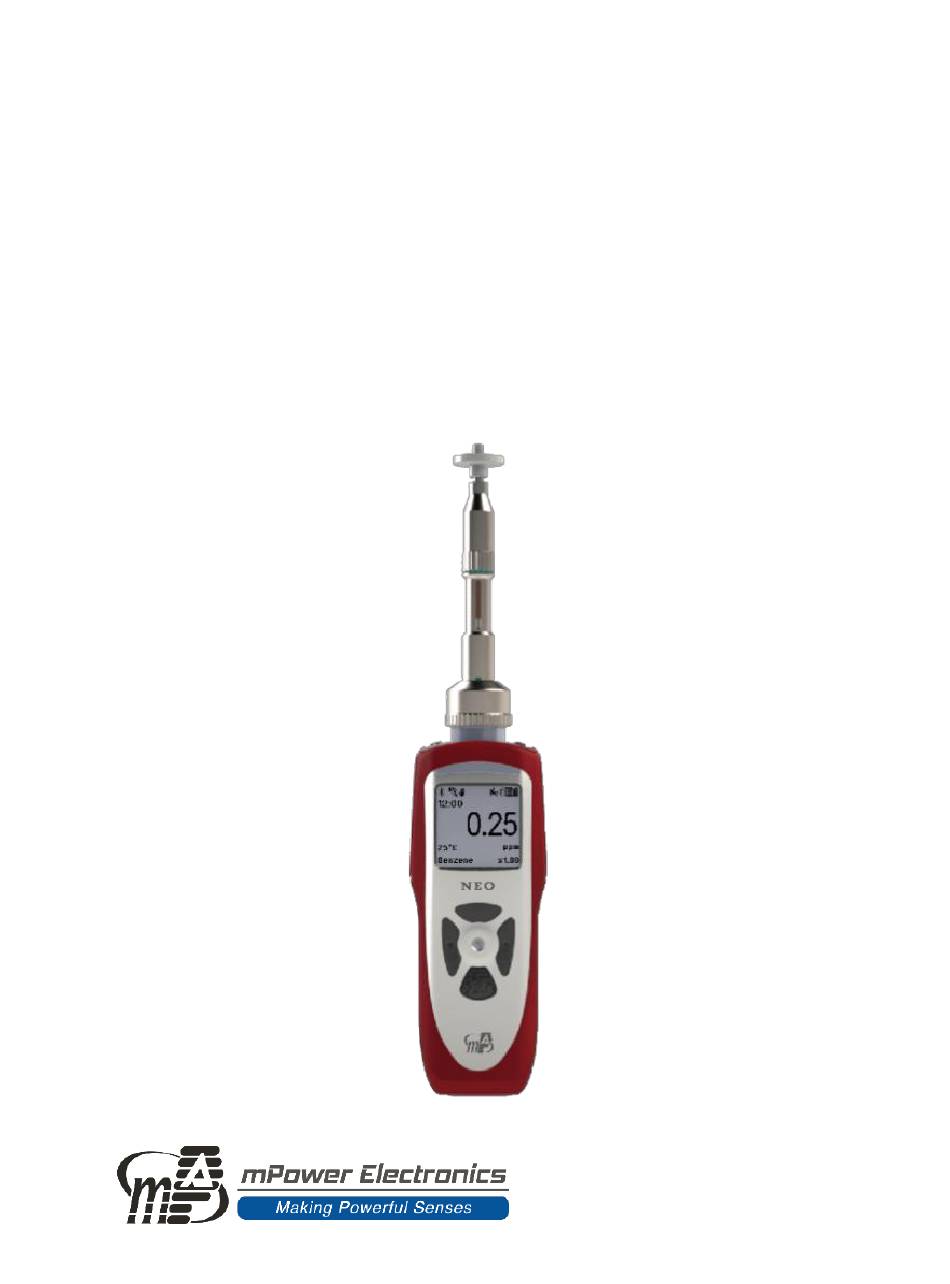

- Page 1 NEO BENZ Photo-ionization Detector MP186 User’s Guide Version 1.01 November 2019...
-
Page 2: Table Of Contents
Contents Read Before Operating ........................3 General Information .......................... 4 User Interface ........................... 5 Display ............................. 6 Charging a Lithium-Ion Battery ....................... 7 Low Voltage Warning ........................7 Clock Battery ..........................7 Data Protection While Power Is Off .................... 7 Instrument Basic Functions ....................... -
Page 3: Read Before Operating
Read Before Operating This manual must be carefully read by all individuals who have or will have the responsibility of using, maintaining, or servicing this product. The product will perform as designed only if it is used, maintained, and serviced in accordance with the manufacturer’s instructions. The user should understand how to set the correct parameters and interpret the obtained results. -
Page 4: General Information

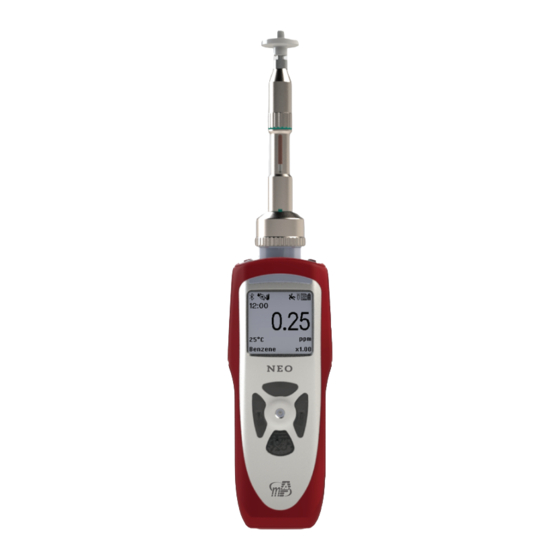

Do not use USB/PC communication in a hazardous location. General Information The NEO BENZ uses a combination of a selective 9.8 eV lamp and benzene filtering tubes to measure benzene selectively in mixtures of hydrocarbons as may be present in fuels or hazardous waste sites. -
Page 5: User Interface
Filter Tube Holder Left Key： Sensor Cap Alarm LEDs Right Key： Up Key： Display Down/Mode Buzzer Key： Outlet Right Key Up Key Move Cursor Left Key Down/Mode Move Cursor Key (On/Off) USB Charge & Comm Port NEO BENZ user interface... -
Page 6: Display
Display The LCD display provides visual feedback that includes the reading, tube mode indicator, pump status, Man-Down, time, battery condition, and other parameters. The display shows the following information: Alarm Man-Down Lamp Status Calibration/Bump Status Notice Enabled Pump Status Datalog On Bluetooth On Battery Status Calibration Due... -
Page 7: Charging A Lithium-Ion Battery
Charging a Lithium-Ion Battery Always fully charge the battery before using the instrument. The screen will display a battery icon from empty (no bars) to fully charged (3 bars). Follow this procedure to charge the instrument: 1. Plug the Micro-USB into the charging port at the bottom of the instrument. 2. -
Page 8: Instrument Basic Functions
Instrument Basic Functions The NEO gives real-time measurements or single-point benzene measurements and activates alarm signals whenever the reading exceeds preset limits. Prior to factory shipment, the instrument is preset with default alarm limits and the sensor is pre-calibrated with standard calibration gas. However, the instrument should be tested and the calibration verified before the first use. -
Page 9: Pump Status
90' (27.5 m) vertically, at about 3' (0.9 m) per second flow rate. Note that at 200’ the PID response will be delayed by about 1 minute, the time required for the gas sample to reach the instrument. IMPORTANT! During operation, make sure the probe inlet and the gas outlet are free of obstructions. Obstructions can cause premature wear on the pump, false readings, or pump stalling. -
Page 10: Preset Alarm Limits & Calibration
Preset Alarm Limits & Calibration The instrument is factory calibrated with standard calibration gas, and is programmed with the following default alarm limits: Cal Gas Cal Span unit High STEL Benzene Isobutylene Alarm limits and calibration parameters can be adjusted in Configuration Mode as desired for particular testing purposes and applications. -
Page 11: Operating Mode Overview
Operating Mode Overview The instrument works in either VOC Mode for continuous VOC readings or Tube Mode for single-point benzene-specific measurements. The VOC Mode can be configured to read any desired gas using any correction factor (CF) or lamp, whereas the Tube Mode can only be used for benzene measurements with a 9.8 eV lamp. -
Page 12: Benzene Tube Mode Main Menu
Benzene Tube Mode Main Menu The Benzene Mode main screen shows real-time readings and auxiliary information. Press the Up or Down key to cycle through the sub-menu screens. Down Hold Left & Switching to Left Right Right VOC Mode Down Down Wireless Type: Current Temp. -
Page 13: Stel Measurement
d. When prompted to insert a tube, open both ends of a benzene filtering tube using the tube tip breaker, taking caution to protect eyes and hands from sharp glass pieces. e. Unscrew the top section of the tube holder, insert the tube with the arrow pointing towards the instrument, and screw the top section back on. -
Page 14: Benzene Tube Replacement
The reading displayed during the STEL measurement is not the instantaneous reading, but rather the accumulated STEL calculation. This is done so that the user can abort work or don protective equipment to avoid further exposure if STEL has been reached before 15 minutes have elapsed. Time Elapsed STEL = Average Concentration x 15 min. -
Page 15: Configuration Mode
Configuration Mode The Config Mode is used to modify the instrument configuration settings. Navigating Config Mode There are two types of menus in Config mode: 1) those that ask for selection from a list and 2) those that ask for a numerical value to be entered. Selection From a List For example, the Measurement sub-menu contains both a text-format list and a radial-button list. -
Page 16: Config Mode Menus
Note: The default password is 0000. The password can only be changed by connecting the instrument to a PC running mPower Suite software. Upon successfully entering Config Mode, the screen on the right will be displayed. The Calibration label is shown and its icon is highlighted. Use the Up key or Mode key to scroll through the menu until the... - Page 17 Fig 4: Flow chart for Configuration Mode...
-
Page 18: Calibration
Calibration Calibration Overview Because the NEO BENZ has two independent operating modes, both VOC and Benzene channels must be zero and span calibrated separately. Although the instrument will typically hold an approximate calibration for several weeks, when used for worker health and safety it should be calibrated or bump tested before each day’s use. - Page 19 Note: To abort the zeroing and proceed to Span calibration, press the Left key at any time during the process. A confirmation ‘Zero aborted!’ will appear, followed by the Span calibration menu. When complete, this message “Zero Calibration Done!” is shown, and the display automatically moves to the Span Calibration menu.
-
Page 20: Measurement
Press the Right key to select Gas Library, or Custom Gases. Press Up or Down to scroll through the gas list until the desired gas name is reached. For high-speed scrolling, press and hold the Up or Down key to skip by alphabetical first letter. Press Right to select the gas and Left to save and exit. Set Span Value Span value settings (including Span 2) should match the concentration(s) of standard gas. -
Page 21: Alarm Settings
Alarm Settings During each measurement period, the gas concentration is compared with the programmed alarm limits (Low, High, TWA and STEL). If the concentration exceeds any of the preset limits, the loud buzzer and red flashing LED are activated immediately to warn of the alarm condition. Press the Right key to enter the Alarm Setting menu. -
Page 22: Datalog
Comfort Beep With the Comfort Beep enabled, the buzzer beeps once each minute to indicate that all is OK and the instrument is running normally. Press the Up or Mode key to step from one option to the next. Then press Right to make a selection followed by Left to save and exit. -
Page 23: Monitor (Mnt) Setup
1. Press the Right key to clear the datalog. The display asks, ‘Clear Datalog?’ 2. Press the Left (Esc) key if you do not want to clear the datalog. 3. Press the Up key if you want to clear the datalog. When it has been cleared, the display shows ‘Datalog Cleared!’... - Page 24 On or Off, Right to select, and Left to save and exit. Below is the list of default 1 and 2 Span points for each Measurement Mode. These settings can be changed in the Calibration menu. NEO BENZ Mode Span Span 2 VOC (Isobutylene) 10 ppm...
- Page 25 Rolling Graph If the Rolling Graph function is enabled, the display in basic User Mode shows the instantaneous reading together with a real-time plot of immediate past readings in a 2-minute window. Enable the rolling graph as with any other list selection menu. Real Time Data Real time data output to a PC is available via a USB cable and/or wirelessly via Bluetooth Low Energy (BLE) using an Android App.
-
Page 26: Computer Interface Using Mpower Suite
Computer Interface Using mPower Suite The mPower Suite software can be used to 1) download logged data, 2) upload configuration parameters to the instrument, 3) monitor data in real time and 4) upgrade the instrument firmware. mPower Suite and instrument firmware can be downloaded from our website at https://www.mpowerinc.com/software-downloads/ Connecting and Configuring 1. - Page 27 mPower Suite Configuration Screen for Benzene Tube Mode...
-
Page 28: Custom Gas (User Gas) In Voc Mode
Custom Gas (User Gas) in VOC Mode 1. Calibration Gas and Measurement Gas can be selected in VOC Mode from a list of a few hundred compounds. If the Measurement and Cal Gas are different, a correction factor is calculated and applied to make the sensor display in concentration equivalents of the measurement gas. -
Page 29: Datalog Retrieval
Datalog Retrieval 1. To download the datalog from the instrument to the PC, select “Get Log”. This process can take several minutes because datalogging is always on and large files can be created. The datalog files will appear under the “Datalog” tab on the top of the screen. Below is a sample screen of datalog information listing sample time and instantaneous reading. -
Page 30: Real-Time Data
Real-time Data 1. (This function requires mPower Suite version 1.1.0.114 or later with NEO firmware v.1.9.1 or later.) 2. To display a list of readings in real time, click on the “Real-time Data” tab on the top of the screen. Enter the desired reading time interval, select a folder on the PC for storing the data, and create a file name. -
Page 31: Maintenance
Maintenance Cleaning or Changing PID Sensor/Lamp Lamp Cleaning and Changing 1. Unscrew the Sensor Cap and pull the sensor straight out, using a slight rocking motion if necessary. 2. Put on finger gloves and pull out the lamp. Insert a new lamp, or clean the existing lamp as described below. -
Page 32: Sensor Cleaning
Sensor Cleaning 1. Unscrew the sensor cap. 2. Pull the sensor straight out, using a slight rocking motion if necessary. 3. Put the sensor into a beaker and cover it with pure methanol or ethanol. 4. Put the beaker into an ultrasonic cleaning bath and sonicate for 15 minutes. -
Page 33: Troubleshooting
Troubleshooting Problem Possible Reasons Solutions Cannot turn on power after Defective battery. Call authorized service center to charging the battery replace battery Reading abnormally High Dirty Filter. Replace filter. Dirty sensor module. Clean or replace sensor module. Excessive moisture or water Blow-dry the sensor module. -
Page 34: Contact Information
Contact Information mPower Electronics Inc. 3046 Scott Blvd. Santa Clara, CA 95054 USA Phone: (408) 320-1266 Toll Free: (866) mPower7 (866) 676-9377 Fax: (669) 342-7077 info@mpowerinc.com www.mpowerinc.com...
