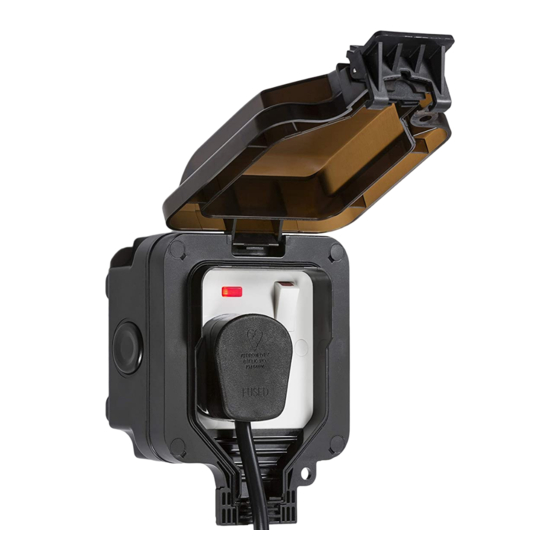

- Page 1 INSTALLATION & MAINTENANCE MANUAL OP6N / OP63N...
- Page 2 These instructions should be read carefully and retained after installation by the end user for future reference and maintenance. These instructions should be used to aid installation of the following products: OP6N / OP63N SAFETY • This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS7671) and current Building Regulations.
- Page 3 Do not overload this accessory or subject it to conditions outside its rating This product is Class I and must be earthed This product is IP66 rated LLATION INSTALLATION Please note: the unit should be fixed to a rigid flat surface as unevenness could cause note: the unit should be fixed to a rigid flat surface as unevenness could cause damag damage to the product or affect operation peration...
- Page 4 Fig. 2 Fig. 2 Remove one or more of the pre-fitted blank plugs as required by pushing out fro a suitable IP rated gland or adaptor (not supplied). For rear entry, cut or drill a 2 • Remove one or more of the pre-fitted blank plugs as required by pushing out from the inside marked and install a suitable IP rated grommet (not supplied).
- Page 5 L - Live (brown), E - Earth (green/yellow), N - Neutral (blue) OP6N OP63N Fig. 3 Fig. 3 OP6N OP63N • An earth connection must be made to the earth terminal of the accessory. Use green/yellow • An earth connection must be made to the earth terminal of the accessory. Use green/yellow sleeving sleeving on earth conductors that are not insulated.
- Page 6 For security, and to prevent unwanted tampering with the product, a lug feature with a 6mm hole is provided to accept a padlock or similar locking security device (see Fig. 4) Fig. 4 Fig. 4 Note: The Power Indicator is lit when there is power to the unit, the fuse is in good condition Note: The LED indicator is lit when there is power to the unit, the fuse is in good co and the switch (if present) is on, irrespective of whether a load is connected or not present) is on, irrespective of whether a load is connected or not...
- Page 7 WARNING To ensure continued safe and proper weatherproof operation, the unit must not be left with the cover raised open or the catch left unlocked. Irreparable damage will occur if this instruction is not followed. GENERAL This product should be recycled in the correct manner when it reaches the end of its life. Check local authorities for where facilities exist.
- Page 8 ACCESSORIES LTD ACCESSORIES LTD ML Accessories Limited LU5 4LT www.mlaccessories.co.uk DCMAY20_V2...
