Summary of Contents for Knightsbridge OS006

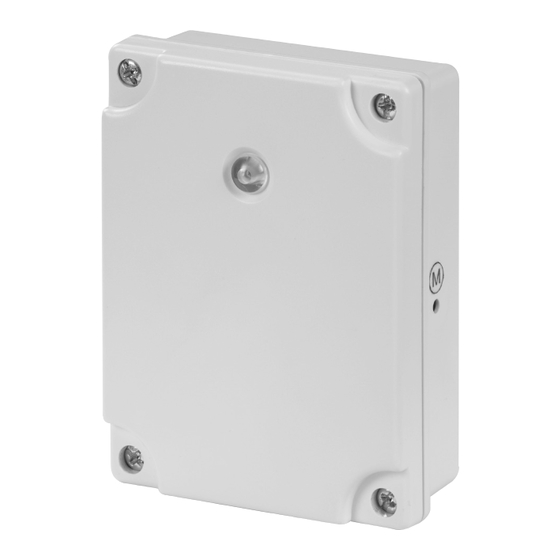

- Page 1 INSTALLATION & MAINTENANCE MANUAL OS006 230 V 50Hz...
- Page 2 • Check the total load on the circuit (including when this product and load is fitted) does not exce OS006 of the circuit cable, fuse or circuit breaker These instructions should be read carefully and retained after installation by the end user for These instructions should be read carefully and retained after installation by the end user for futu •...
- Page 3 Uncover the sensor window and the luminaire will go off after 10 seconds clockwise After the initial setup has been completed, adjust the time and lux setting to the desired levels After the sensor has been switched on it will take up to 30 seconds to enter into autom TEST MODE Once in automatic mode, cover the sensor window to block out the light, after 10 secon With the front cover removed, the 3 adjustment controls can be set:...
- Page 4 LOADING Do not exceed maximum loading requirements as listed below Incandescent – 1000W Fluorescent/inductive – 500W LED – 200W WARNING This product must be disconnected from the circuit if subjected to any high voltage or insulation resistance testing. Irreparable damage will occur if this instruction is not followed GENERAL The product should be recycled in the correct manner when it reaches the end of its life.
