CUBEX SkyMaster Series Manual page 11

Instructions:
Dacron
REFL
Antenna
Rope
Eyebolt
Bridge Truss Mast Bracket
In the SKYM III and SKYM IV antenna models an appropriate length of high quality UV
resistant Dacron antenna rope is supplied along with necessary eyebolts to complete
the truss guying of the boom. Eyebolts for a 2" mast and 3" boom are supplied and the
boom holes are pre-drill for proper location of the truss line.
Cubex Co., Inc.

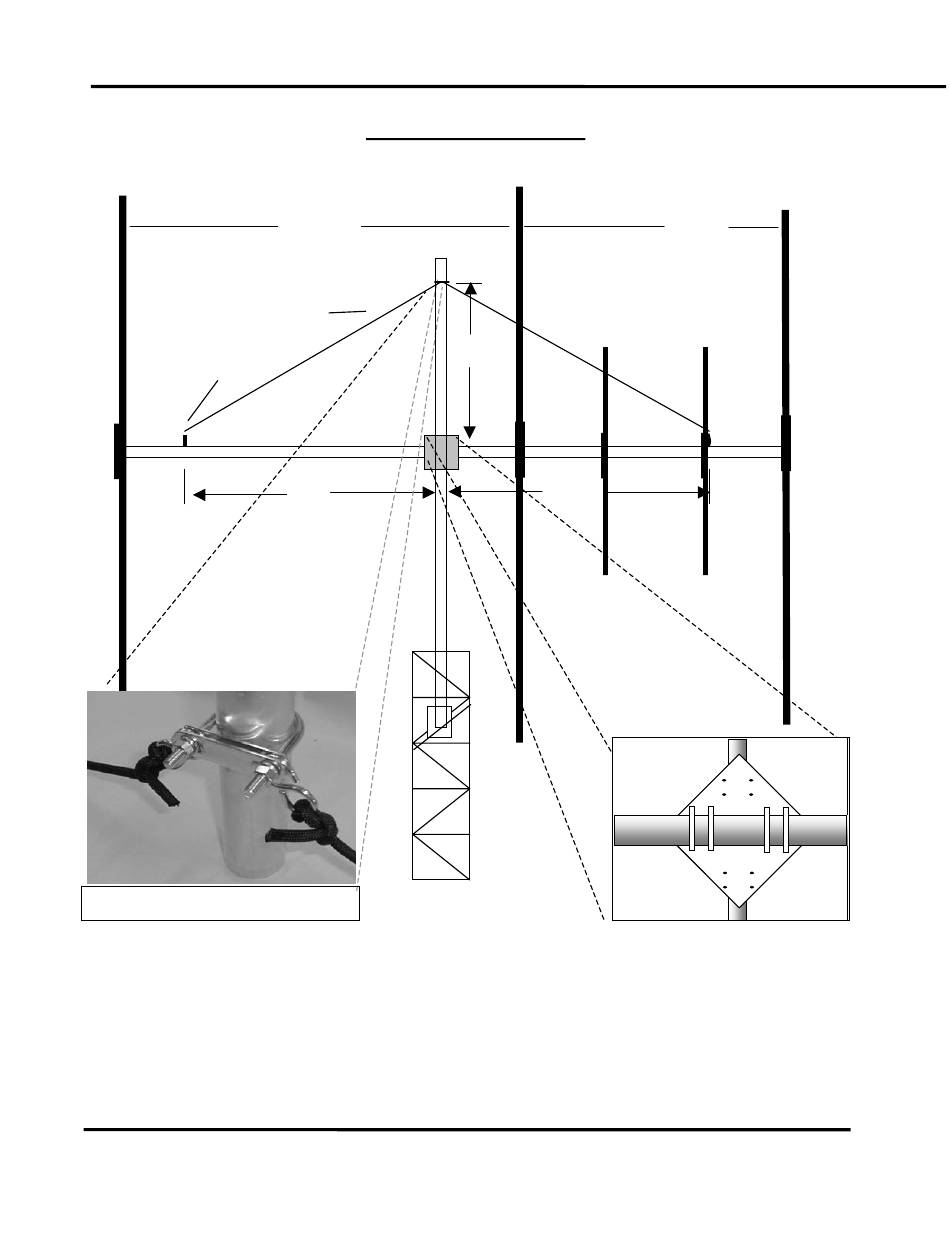

TRUSS ARRANGEMENT
3 element Quad ELEMENT Spacing
10'
18 ft Boom
7'-6"
Pg. 11
Cubex SkyMaster Series
DRV
6M Drvn El
48"
7'-6"
8'
DIR
6M D1
05-06 Rev 0
