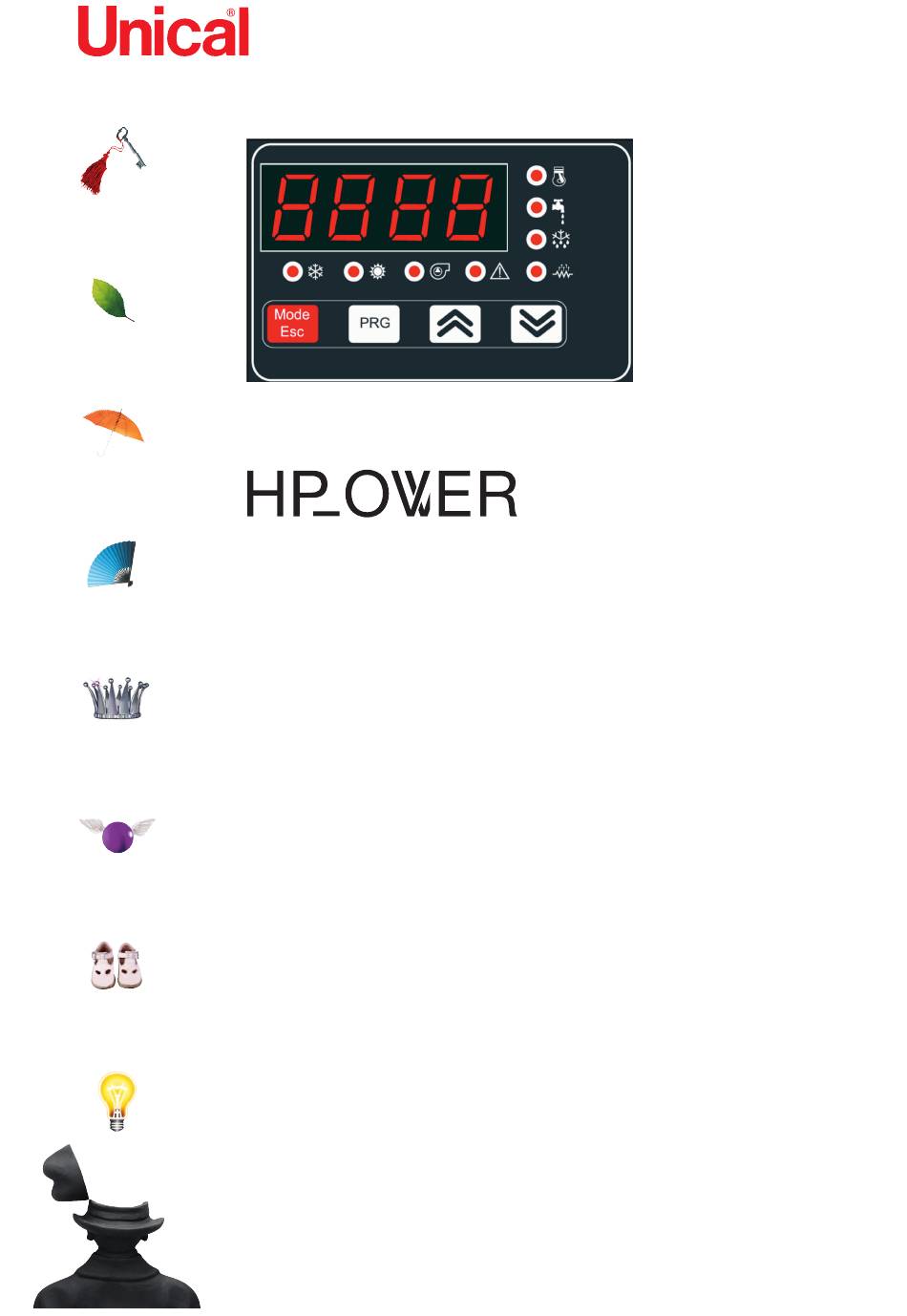

  • Page 1 60 - 90 - 120 - 150 Controller interface...

  • Page 2: Table Of Contents

    Controller for HP_OWER INDEX USER - CONTROLLER INTERFACE ............................4 MENU STRUCTURE DIAGRAM ..............................4 1.1.1 ANALOG INPUT MENU ..............................4 PARAMETERS CATEGORIES ..............................5 SETPOINT ADJUSTABLE BY THE USER ............................. 5 DISPLAY ....................................5 LED ......................................5 DYNAMIC SET-POINT ADJUSTMENT ............................5 SET-POINT ADJUSTMENT FROM 0-10V INPUT ........................
  • Page 3 Controller for HP_OWER 1.24 AVAILABLE FUNCTIONS WITH H -T ACCESSORY ........................23 1.24.1 SCREED COAT FUNCTION.............................. 23 1.24.2 DISINFECTION FUNCTION(ANTI-LEGIONELLA) ......................23 1.24.3 DOUBLE SETPOINT FUNCTION AND DEHUMIDIFICATIONE WITH TOUCH SCREEN ............23 1.24.4 PLANT SECONDARY PUMP............................25 1.25 TABLES OF CONFIGURATIONS ALLOWED TO USER AND INSTALLER ..................25 1.29 ALARMS ....................................

  • Page 4: User - Controller Interface

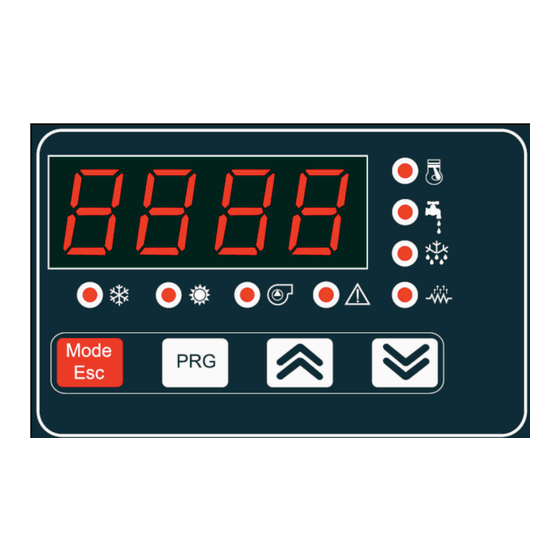

    Controller for HP_OWER 1 USER - CONTROLLER INTERFACE It is used to select the operating mode, and to reset the manual resetting alarms. The operating mode changes as per the sequence below each time you press the Mode button: off  cool  heat  off If the sanitary mode is enabled, the sequence is as follows: off ...

  • Page 5: Parameters Categories

    Controller for HP_OWER t06: low pressure (bar); t07: outdoor air temperature (°C); t09: sanitary hot water temperature (°C) (if the hot water production is enabled). 1.2 PARAMETERS CATEGORIES DESCRIPTION IDENTIFICATION CODE OF THE GROUP PARAMETER INDEX Configuration Compressor Fan motor alarms Regulation (setting) Pump...

  • Page 6: Set-Point Adjustment From 0-10V Input

    Controller for HP_OWER • b09 = offset max in cooling mode operation. • b10 = offset max in heating mode operation. • b11 = Outdoor temperature setting in cooling mode. • b12 = Outdoor temperature setting in heating mode. • b13 = Temperature difference in cooling mode operation. •...

  • Page 7: Hydraulic Pump Operation

    Controller for HP_OWER b20=1 con ingresso a 0% si avrà come set-point attuale: set impostato (Coo/Hea) – b15/2 b20=1 con ingresso a 50% il set-point sarà quello impostato (Coo/Hea) b20=1 con ingresso a 100% si avrà come set-point attuale: set impostato (Coo/Hea) + b15/2 The signal must be applied to the terminals 0-10V+ and 0-10V- (see the wiring diagrams).

  • Page 8: Operation By Thermoregulator With Periodic Activation

    Controller for HP_OWER 1.8.2 OPERATION BY THERMOREGULATOR WITH PERIODIC ACTIVATION The function is disabled if P17= 0 (default). If the pump is set to operate by thermoregulator call (P03 = 1, default), it will be activated periodically for a time period defined by the parameter P17 (in seconds) after a counting time set by the parameter P16 (in minutes), activated when the pump is turned off for satisfied thermoregulation.

  • Page 9: Remote On/Off And Summer-Winter Mode Selection

    Controller for HP_OWER In sanitary hot water production mode, the pump will operate at the maximum speed. 1.9 REMOTE ON/OFF AND SUMMER-WINTER MODE SELECTION The terminal block has two digital inputs to control the unit via an external consent. SW-SW: Summer/winter switching mode input via remote control.

  • Page 10: Memory Of The Sensor In Heating Mode

    Controller for HP_OWER 1.11.1 MEMORY OF THE SENSOR IN HEATING MODE In the case of commutation from water users to the sanitary water, the temperature sensor changes from a "water outlet temperature sensor" to a "water tank temperature sensor". For such reason, in heating mode, the last value read by the sensor will be memorised before changing to sanitary mode.

  • Page 11: Call Of Domestic Hot Water Production From Digital Input

    Controller for HP_OWER The memory function will be interrupted: - When the temperature detected by the sensor becomes lower than the memorised value; - Or after a duration equal to b06 seconds (default 45 seconds). 1.11.2 CALL OF DOMESTIC HOT WATER PRODUCTION FROM DIGITAL INPUT Differently to the use of the temperature probe, the activation of the sanitary hot water function may be by closing the digital input (SAN-SAN terminals enabled as digital input) of the minichiller.
  • Page 12 Controller for HP_OWER NOTE: turning off the unit remotely (onoff-onoff terminals), or by the on board keyboard, or by a remote keyboard does not affect the sanitary operating mode. Once the H10 parameter is set to be 1, the unit switches to sanitary priority as soon as powered. The on board display shows the temperature measured by the sensor placed inside the sanitary water tank.

  • Page 13: Heating Mode On Sanitary Accumulation

    Controller for HP_OWER 1.12 HEATING MODE ON SANITARY ACCUMULATION If the parameter H83=1, the appliance exploits the accumulation tank for sanitary hot water also to heat the plant side. In these conditions, the relay which controls the sanitary valve will be also energized during heating operation and not only in sanitary mode.

  • Page 14: Auxiliary Electric Heater Of The Plant In Defrost Cycle

    Controller for HP_OWER 1.13.1 AUXILIARY ELECTRIC HEATER OF THE PLANT IN DEFROST CYCLE During the defrost cycle (see Paragraph 1.19), by setting r21=1 (in addition to r10=1 and r24=1 or 3) the electric heater of the plant side will be activated if required (detected (regulating) temperature lower than the water setpoint minus r11 (°C)), without waiting for the time defined by r12.
  • Page 15 Controller for HP_OWER .[°C] Heat pump r22=7 Heat pump + [Boiler and/or electric heater] IN JOINT OPERATION I r28=-7 Boiler + [Heat pump and/or electric heater] IN JOINT OPERATION II r08=-16 [Boiler and/or electric heater] IN SUBSTITUTION OPERATION When modifying the values of the parameters r22, r28, r08, you have to respect the following condition: r22 ≥ r28 ≥ r08. You can remove the zone corresponding to the joint operation area I just by putting r22=r28;...
  • Page 16 Controller for HP_OWER HEAT+SAN 1) Auxiliary electric heater of plant HEAT / Set up of HEAT 0/1/2 2) After r12 minutes, Boiler HEAT+SAN minutes 1) Boiler HEAT / Set up of 2) After r12 minutes, auxiliary HEAT 0/1/2 HEAT+SAN minutes electric heater of plant 1) Auxiliary electric heater of HEAT+SAN...
  • Page 17 Controller for HP_OWER 1) Heat pump HEAT / IN HEAT OR IN Set up of Set up of 0/1/2 2) After r12 minutes, boiler HEAT+SAN SANITARY minutes minutes 1) Heat pump 2) After r12 minutes, auxiliary HEAT / IN HEAT OR IN Set up of Set up of electric heater of plant/sanitary...
  • Page 18 Controller for HP_OWER 1) Boiler HEAT / Set up of 2) After r12 minutes, auxiliary HEAT 0/1/2 HEAT+SAN minutes electric heater of plant 1) Auxiliary electric heater of plant HEAT / Set up of HEAT 0/1/2 2) After r12 minutes, boiler HEAT+SAN minutes 1) Boiler...

  • Page 19: Boiler Management

    Controller for HP_OWER HEAT+SAN SANITARY Only if the following 3 conditions are fulfilled: - Output for auxiliary electric heater of plant side is configurated; - r24=1/3; - the remote sensor of water plant temperature is installed and configured (see paragraph 9.11); the auxiliary electric heater of the plant is available: - after r12 minutes from the beginning of its...

  • Page 20: Indication On Summer/Winter Operation

    Controller for HP_OWER By setting r32 = 2 or 3, the boiler control is activated (using the thermoregulator inside the boiler is used) regardless of the minichiller (HP) thermoregulation. If the boiler is not equipped with independent circulator, it is necessary to keep utilization pump active. In the presence of the plant call function (with boiler working on plant side) and the plant is fullfilled (or with minichiller (HP) is not ON) the boiler thermoregulation is not enabled.

  • Page 21: Notes For Installation

    Controller for HP_OWER Output settings: H60=25 for the setting of OC2 digital input (terminals DO5N, DO5). 1.23.2 NOTES FOR INSTALLATION Humidistat The relay of the humidistat must be connected as NC. Two cases can be distinguished: dehumidification is not required (activation of dual set-point) when the relay is de-energized, the water is sent to the floor plant (according to set-point) dehumidification is required (deactivation of dual set-point): when the relay energie, the water is sent to the fan-coils (first set point)
  • Page 22 Controller for HP_OWER 1.23.5.1 Wiring diagram with external relay connection WARNING: When using a 3-way valve for dual setpoint, if the valve has 3 contacts for the power supply and in the case of external relay connection, the valve will also remain energized when the minichiller is in OFF state or when is turned off by the internal switch.
  • Page 23 Controller for HP_OWER 1.24 AVAILABLE FUNCTIONS WITH TOUCH-SCREEN ACCESSORY COD.00264040 1.24.1 SCREED COAT FUNCTION A function for grip of the screed coat in the installation of radiant plants is implemented. With touch-screen controller which allows you adjust the set-point temperature for screed function and its duration. For more information, please refer to the manual, of such controller.
  • Page 24 Controller for HP_OWER 1.24.3.3 DJUSTABLE SETPOINTS The adjustable set-points from the touch-screen controller with enabled double set-point function are as follow: Setpoint in the touch Setpoint in the on-board Setpoint Summer Winter screen controller controller First setpoint (°C) T water Coo/Hea 7 (5÷18) 45 (35÷55)
  • Page 25 Controller for HP_OWER 1.24.3.5.1 CONFIGURATION, WITH EXTERNAL RELAY, WITH VALVE OF 3/2-CONDUCTORS POWER SUPPLY 1.24.4 PLANT SECONDARY PUMP When a secondary pump of the plant is declared (see Paragraph 1.22) and if the remote control panel (touch-screen) is configured as a thermostat for the area, the plant secondary pump will be enabled if there is a call from touch-screen, when the plant call is ended, the plant secondary pump will turn off after the post-pumping regardless of the thermoregulation fulfillment by the minichiller/heat pump.
  • Page 26 Controller for HP_OWER 1= Interior adjustment sensor of outlet WARNING: if the remote water temperature sensor is not being used for 8 =remote control sensor, connected to Regulation sensor 0÷31 controlling the water SE terminals temperature of the plant, 9 = remote control sensor, connected to please keep H11= 2.
  • Page 27 Controller for HP_OWER 0 = ND 1 = classic mode Enabling dual setpoint 0÷4 2 = cooling double setpoint 3 = heatind double setpoint 4 = cooling and heating double setpoint 0 = disabled function Enabling heating always diverted 0÷1 1 = In heating operation always diverts towards the sanitary mode...
  • Page 28 Controller for HP_OWER Proportional band for fan motor It is not recommended to Depending on 0.0÷25.5 modulation in heating mode the model modify such value Setting of the presure at the maximum It is not recommended to Depending on -50.0÷80.0 fan speed in heating mode the model modify such value...
  • Page 29 Controller for HP_OWER Adjustable parameters with Disinfection duration 0÷255 the remote control panel accessory touch-screen Adjustable parameters with Heat pump operating mode setpoint °C 48.0 -50.0÷80.0 the remote control panel for disinfection accessory touch-screen Upper limi for joint operation area II °C -16÷50 Respect the condition r22≥...
  • Page 30 Controller for HP_OWER 1.26.7 REMOTE ON/OFF E00 In case the unit is remote controlled by a remote digital input. 1.26.8 HIGH PRESSURE E01 If the on board pressure transductor detects a pressure higher than 41 bar, the alarm will be activated. In this case the compressor will stop immediately.
  • Page 32 - export@unical-ag.com - www.unical.eu Unical will not be held responsible for possible inaccuracies if due to transcription or printing errors. It also reserves the right to modify its products as deemed necessary or useful, without jeopardising their essential features.
