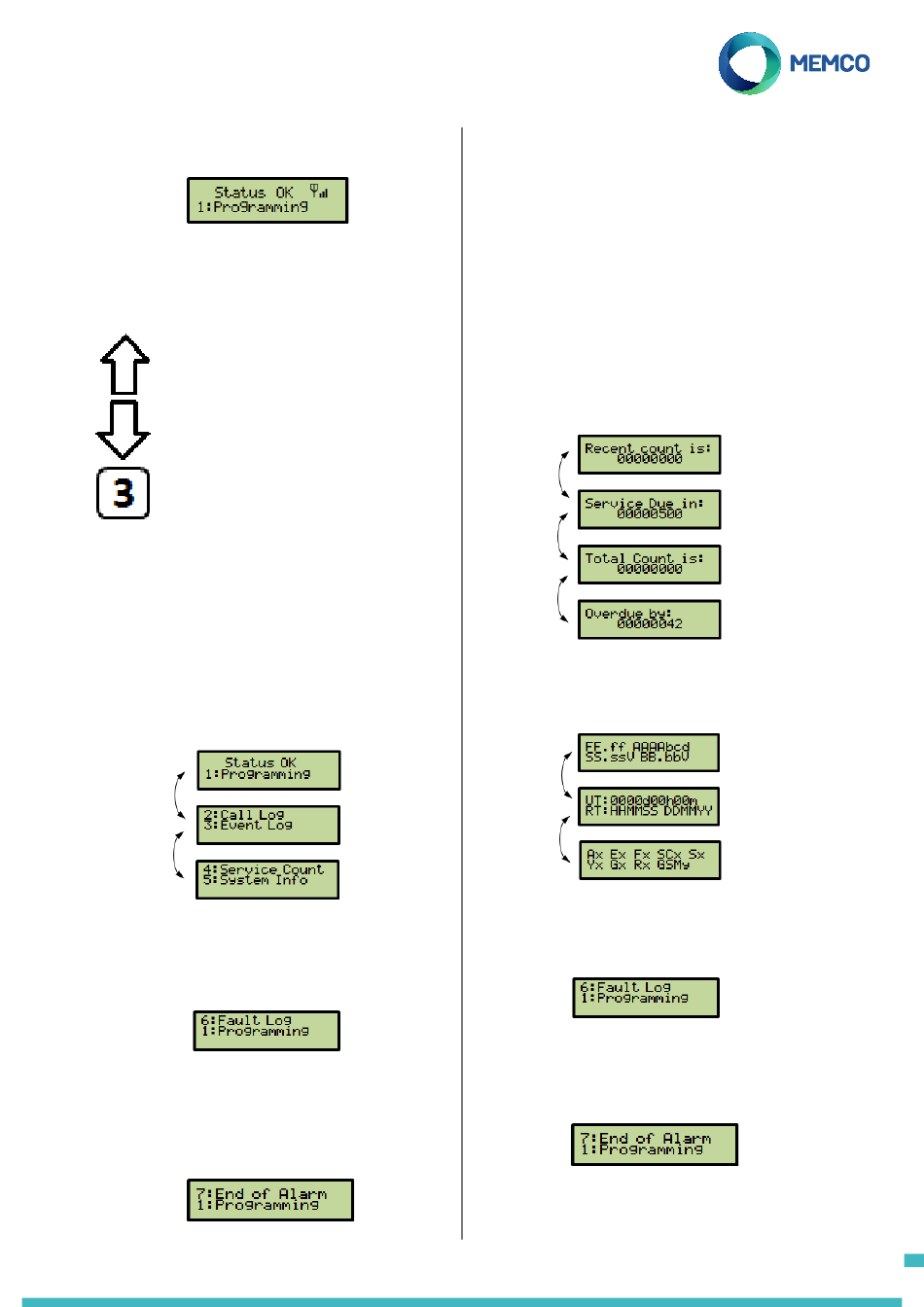

Testing and Operating Mode
The status of the unit is shown on the top row of the idle
screen. If there are no faults, it will display 'Status OK'.
If a GSM unit is connected, the antenna signal strength
symbol will be shown to the right of the "Status OK" text.
Menu Controls
Scroll up
Scroll Down
Enter the option number required
*
Back / Cancel
You can use the up and down arrow to navigate through
the options. Enter the option number to enter that option.
Menu Structure
Fault Detected
If a fault is detected, then '6: Fault Log' will flash on the
top row of the idle screen, as below...
Alarm activated– End of Alarm
If the alarm state is activated, i.e. an alarm call has been
placed, the unit will remain in alarm state until the 'End of
Alarm' is activated. Press 7 to end the alarm.
1. Programming
Press 1 to access the standard programming menu
Old Programming Mode– to program the Memcom
unit using the Old Menu and code based programming
options, simply press * followed by the passcode for the
unit and confirm by pressing # (default- *1234#) from the
Idle screen. A map of this menu is displayed on page 12 of
this document.
2. Call Log
Displays the last 10 call events logged by the unit
3. Event log
Displays the last 10 events for the unit
4. Service Count
Displays service count information if active
5. System Info
Displays the current system information for fault
diagnostics
6. Fault Log
Displays information on all active faults– gives time and
date and fault mode.
7. End of Alarm
Allows the alarm state to be reset. The message "7: End of
Alarm' will flash on the top row of the idle screen until the
7 key is pressed to reset it.
Installation and essential programming are now complete.
Please refer to the Full Programming Options section on
the following pages of this guide if further programming is
required.
+
