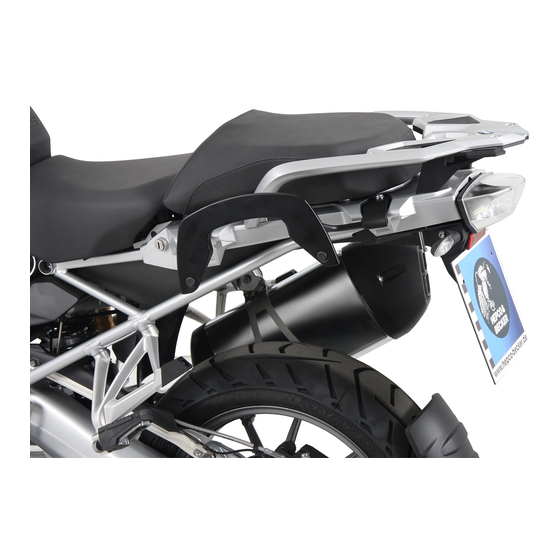

C-Bow Taschenhalter / Soft bag holder
BMW R 1250 GS
ab/from 2018
Artikel Nr.: / Item-no.:
6514
630
00 01
BMW R 1200 GS LC
ab/from 2013
Artikel Nr.: / Item-no.:
665
630
00 01
INHALT
CONTENTS
2x
700007063
C-Bow schwarz
1x
700008186
C-Bow Halteadapter vorne links
1x
700008187
C-Bow Halteadapter vorne rechts
1x
700008188
C-Bow Halteadapter hinten links
1x
700008189
C-Bow Halteadapter hinten rechts
1x
Schraubensatz
8x Sechskantschraube M6x16
8x U-Scheibe Ø6,4
BENÖTIGTE WERKZEUGE
TOOLS REQUIRED
WICHTIG
IMPORTANT
Die Voraussetzung für die Montage ist natürlich eine gewisse technische Erfahrung. Wenn Sie sich nicht sicher sind,
wie man eine bestimmte Arbeit ausführt, sollten Sie diese Ihrer Fachwerkstatt überlassen. Ziehen sie alle zugänglichen
Schrauben zuerst nur locker an. Nachdem alles montiert ist, werden die Schrauben dann auf das entsprechende
Anzugsmoment festgezogen. Dadurch wird sichergestellt, dass das Produkt spannungsfrei angebaut ist. Anzugsmomente
beachten! Nach der Montage alle Verschraubungen auf festen Sitz kontrollieren!
Of course, the assembly requires a certain technical experience. If you are not sure how to execute a determined action,
you should ask your local distributor to do it. First, tighten all screws only loosely. After mounting all parts, the screws
should be tightened to the torque specified. This guarantees, that the product is mounted without tension. Observe
the tightening torques of the manufacturer! Control all screw connections after the assembling for tightness!
BMW R 1250 GS
Adventure
ab/from 2019
Artikel Nr.: / Item-no.:
6519
630
00 01
BMW R 1200 GS
Adventure
ab/from 2014
Artikel Nr.: / Item-no.:
671
630
00 01
schwarz/black
Verlängerung/extension
2x
700007063
C-Bow black
1x
700008186
C-Bow adapter front left
1x
700008187
C-Bow adapter front right
1x
700008188
C-Bow adapter rear left
1x
700008189
C-Bow adapter rear right
1x
Screw set
8x hexagon bolt M6x16
8x washer Ø6,4
Ratsche/Ratchet
1
