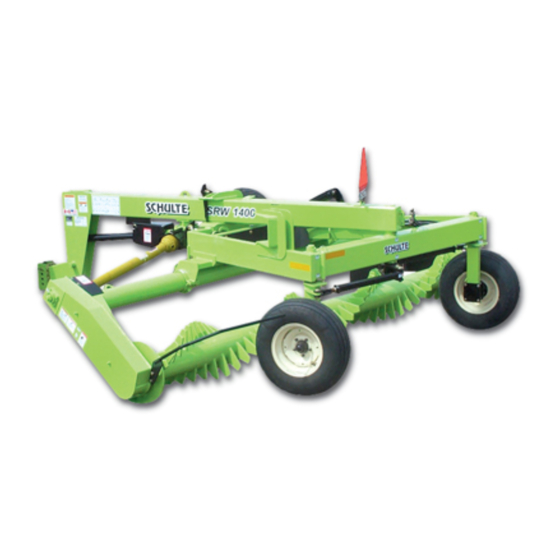

SRW 1400
PIVOTING ROCK WINDROWER
Published 03/03
Part No. R200-03-1
Effective S/N R 200002 56301 - C urrent
73747 130TH ST
ZEARING IA 50276
641-487-7608
INFO@NESSAINC.COM
WWW.NESSAINC.COM
OPERATOR'S MANUAL
with PARTS LISTING
Schulte Industries Ltd.
P.O. Box 70
Englefeld Saskatchewan
Canada S0K 1N0
Tel. (306) 287-3715
Fax. (306) 287-3355
Parts Fax. (306) 287-4066
Email: info@schulte.ca
© 2003 Alamo Group Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Schulte SRW 1400 and is the answer not in the manual?

Questions and answers

Related Manuals for Alamo Schulte SRW 1400

Summary of Contents for Alamo Schulte SRW 1400

  • Page 1 73747 130TH ST ZEARING IA 50276 641-487-7608 INFO@NESSAINC.COM WWW.NESSAINC.COM OPERATOR’S MANUAL with PARTS LISTING Schulte Industries Ltd. P.O. Box 70 Englefeld Saskatchewan Canada S0K 1N0 Tel. (306) 287-3715 Fax. (306) 287-3355 Parts Fax. (306) 287-4066 Email: info@schulte.ca © 2003 Alamo Group Inc.
  • Page 2 To The Owner/Operator/Dealer This manual has been compiled to assist you in operating and servicing your new SCHULTE Rock Windrower. READ and UNDERSTAND this manual BEFORE operating the rock windrower. Pay special attention to the safety instructions. In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnel involved in the operation, transport, maintenance and storage of equipment.

  • Page 3: Table Of Contents

    STORAGE ............5-8 Schulte SRW 1400...
  • Page 4 Parts Index ............6-38 Schulte SRW 1400...

  • Page 5: Dealer's Predelivery Service Guide

    ____ Mounting and removal from tractor ____ Operation ____ Adjustments ____ Lubrication ____ Maintenance ____ Storage ____ Operator's safety precautions ____ User's responsibility and warranty ____ Operator's manual delivered to owner ____ Operator instructed on contents of owner's manual Schulte SRW 1400 March, 2003...
  • Page 6 Schulte SRW 1400 March, 2003...

  • Page 7: Safety Section

    SAFETY SECTION Schulte SRW 1400 March, 2003...
  • Page 8 The lowest level of Safety Message; warns of possible injury. Decals located on the Equipment with this Signal Word are Black and Yellow. WARNING! Serious injury or possible death! Decals are Black and Orange. DANGER! Imminent death/critical injury. Decals are Red and White. (SG-1) Schulte SRW 1400 March, 2003...
  • Page 9 Tractor from rolling. Never dismount a Tractor that is moving or while the engine is running. Op erate the T ractor co ntrols from the T ractor se at only. (SG-9) Schulte SRW 1400 March, 2003...
  • Page 10 If oil does penetrate the sk in, have the injury treated immediately by a physician knowledgeable and skilled in this procedure. (SG-15) Schulte SRW 1400 March, 2003...
  • Page 11 When operating in traffic always use the Tractor's flashing warning lights and reduce your speed. Be aware of traffic around you and watch out for the other guy. (SG-19) Schulte SRW 1400 March, 2003...
  • Page 12 (SG-25) WARNING! Do not exceed the rated PTO speed for the Implement. Excessive PTO speeds can cause Imp lement driveline or blad e failures res ulting in serious injury or de ath. (SG-26) Schulte SRW 1400 March, 2003...
  • Page 13 Keep hands, feet, hair and clothing away from mo ving parts . Con tact w ith moving parts can result in serious injury or eve n de ath. Sta y away until all mo tion ha s sto ppe d. (SGR-5) Schulte SRW 1400 March, 2003...
  • Page 14 Make certain that at least 20% of the Tractor's weight is on the front wheels to maintain safe steerage. Slow down on rough or une ven surfa ces . (STI-1) Schulte SRW 1400 March, 2003...
  • Page 15 Safety Messages and operation instruction in each of the appropriate sections of the Tractor and Equipment Ma nua ls. Pay close a ttention to the S afety Signs affixe d to the Tractor a nd E quipme nt. (SG-18) Schulte SRW 1400 March, 2003...

  • Page 16: Decals

    SAFETY Decals 1-10 Schulte SRW 1400 March, 2003...
  • Page 17 Decal, Warning Moving Part Hazard 226-193 Decal ‘Danger Guard Missing’ 226-191 Decal ‘Peligro...’ 226-197 Decal ‘Operator’s Manual Inside...’ 226-142 Decal 'Tractor drawbar..' 226-004 Decal ‘FEMA Member’ 226-049 Decal ‘Use Genuine Schulte Parts’ 226-048 Decal, ‘Do Not Transport’ 1-11 Schulte SRW 1400 March, 2003...
  • Page 18 Decal # 226-081 Location: Left side of the main frame. Decal # 226-037 Location: Over power take off in put sh aft o n the m ain frame of the windrow er. 1-12 Schulte SRW 1400 March, 2003...
  • Page 19 Decal # 226-193 Location: Drum chain case c over. Location: Inside drum ch ain case cov er. Decal # 226-048 Location: Left side of main frame. Decal # 226-192 Location: Drum chain case c over. 1-13 Schulte SRW 1400 March, 2003...
  • Page 20 1-14 Schulte SRW 1400 March, 2003...

  • Page 21: Introduction Section

    INTRODUCTION SECTION Schulte SRW 1400 March, 2003...
  • Page 22 Left-hand side: Side which is to the left when the operator is facing in the normal forward direction of the tractor. Right-hand side: Side which is to the right when the operator is facing in the normal forward direction of the tractor. Schulte SRW 1400 March, 2003...

  • Page 23: General Data

    14 ft. (4,267 mm) Drum angle Drum speed 150 rpm Power requirement 40-80 HP (30-60 kW) Maximum ground speed 5 mph (8 km/h) Transport width 93" (2,362 mm) Transport length 235" (5,969 mm) Tractor PTO speed 540 rpm Schulte SRW 1400 March, 2003...
  • Page 24 Schulte SRW 1400 March, 2003...

  • Page 25: Assembly Section

    ASSEMBLY SECTION Schulte SRW 1400 March, 2003...

  • Page 26: Before Operation

    THE TRACTOR IS BEING BACKED TO THE HITCH IMPORTANT: Adjust tractor drawbar length so distance from end of PTO shaft to pin hole on drawbar is as follows: 540 RPM PTO - 1-3/8" 6 Spline: L= 14" Figure 3-2 Schulte SRW 1400 March, 2003...

  • Page 27: Leveling The Windrower

    IMPORTANT: Periodically re-check the tightness of the axle plate bolts especially before transporting the machine on public roads. Remove the transport pin from the lock pin hole and return it to the storage hole on the main frame. Schulte SRW 1400 March, 2003...

  • Page 28: Wheel Lock Pins

    The unchained plastic shields can rotate with the driveline but must stop when they contact another object, (Note: these shields may also be chained.) The shields must be regularly greased and checked that they rotate freely on the driveline. Refer to the Lubrication section for greasing intervals. Schulte SRW 1400 March, 2003...

  • Page 29: Light Kit

    Use figures 3-6 through 3-9 as a guide for final placement of the wiring harness and the wire ties. Figure 3-9 Schulte SRW 1400 March, 2003...
  • Page 30 Schulte SRW 1400 March, 2003...

  • Page 31: Operation Section

    OPERATION SECTION Schulte SRW 1400 March, 2003...

  • Page 32: Transport To Working Position

    Move the transport wheel lock pin into working hole. Raise the transport wheel. Reinstall the transport wheel lock pin. Remove the drum transport lock pin. Store the drum transport lock pin in the storage hole on the main frame. Schulte SRW 1400 March, 2003...

  • Page 33: Working To Transport Position

    Pivot the windrower until the hitch pole fits securely into the transport cradle. Lower the wheel lock pins into the pivoting wheel assembly. Install the wedge lock into the transport cradle. NOTE: The flat edge of the wedge lock should be against the hitch pole. Schulte SRW 1400 March, 2003...

  • Page 34: Transport Pin

    Use FLASHING WARNING LIGHTS when traveling on public roads day or night, unless prohibited by law. ALWAYS make sure that a slow moving vehicle (SMV) emblem is VISIBLE from the rear when traveling on public roads. WARNING! Check local highway regulations concerning moving machinery on highways. Schulte SRW 1400 March, 2003...
  • Page 35 Lock hook on chain. Ensure chain rating is equal to or greater than gross weight of towed equipment. CAUTION! Do not use safety chain for towing. Replace entire chain if any link or end fitting is broken, stretched or otherwise deformed. Schulte SRW 1400 March, 2003...

  • Page 36: Troubleshooting

    Torque limiter slipping Excessive load Machine is overloaded, excessively reduce ground speed and reduce depth Improper adjustment Adjust springs Friction plates worn Replace plates Oil on friction plates Replace plates Schulte SRW 1400 March, 2003...

  • Page 37: Maintenance Section

    MAINTENANCE SECTION Schulte SRW 1400 March, 2003...

  • Page 38: Nuts And Bolts

    Hard surfacing applied to the windrower teeth should be reapplied before the original hard surface material has been worn off. Once the hard surface material is gone wear to the base metal of the teeth will be very rapid. CX170 hard surfacing electrodes are recommended. Schulte SRW 1400 March, 2003...

  • Page 39: Hubs And Spindles

    Slowly rotate hub while gently pushing the hub back onto the axle. 7. Check dust seal to ensure seal rubber is positioned correctly. 8. Install the small or outer bearing. 9. Install the axle washer and castle nut on the axle. Schulte SRW 1400 March, 2003...

  • Page 40: Tires

    Normal wrench torques to not apply. Occasionally apply grease to the shear plates. IMPORTANT: Replacement of the shear bolt with one of any other grade or size will be considered unauthorized modification and warranty will be void. Schulte SRW 1400 March, 2003...

  • Page 41: Hydraulics

    Refer to the following illustration and set the height of the clutch springs as indicated. Tighten nuts following an alternating cross pattern. Check that the height is constant for all springs. Slip Clutch Setting 540 RPM DRIVE L=28.0mm (1.102") Schulte SRW 1400 March, 2003...

  • Page 42: Lubrication

    Dispose of the old oil in accordance with the local regulations Gearbox oil should meet the following specifications: - API Service Classifications GL-5 - Military Specification MIL-L-2105C Consult the following chart for the oil viscosity recommendations: NOTE: Use SAE 80-90 Gear Oil Schulte SRW 1400 March, 2003...

  • Page 43: Grease Schedule

    Grease should be pumped into the bearing until it is seen purging at the clearance between the outer race and slinger. Wheel Hubs -Wheel Hubs: Yearly. Fill until grease is seen purging at the axle seals. Schulte SRW 1400 March, 2003...

  • Page 44: Drive Chain

    When disconnecting from the tractor for short period of time, use the driveline holders. When storing the rock windrower for an extended period of time, it is recommended the drivelines be removed from the machine and stored inside. Schulte SRW 1400 March, 2003...

  • Page 45: Parts Section

    PARTS SECTION Schulte SRW 1400 March, 2003...

  • Page 46: Main Frame

    Main Frame 6-10 Schulte SRW 1400 March, 2003...
  • Page 47 270-004 Lock nut, 5/8" UNC 302-035 Snapper pin, 5/8" x 3-1/2" 36-22 Drum transport pin, 1-3/8" diameter 271-003 Cotter pin, 5/16" x 1-1/2" 36-21 Sw ivel pin 577-021 Floating lug 256-001 Flat washer, 1" 6-11 Schulte SRW 1400 March, 2003...

  • Page 48: Drum Frame

    Drum Frame 6-12 Schulte SRW 1400 March, 2003...
  • Page 49 Bolt, 1/2" x 1-3/4" UNC 255-005 Lock washer, 5/8" 257-019 Nut, 5/8" UNC 579-005 Tooth 256-006 Flat washer, 5/8" 8781-002 Shield spacer 255-009 Lock washer, 1/2" R200-207 Drum shield cap 250-018 Bolt, 3/8" x 1" UNC 6-13 Schulte SRW 1400 March, 2003...

  • Page 50: Hitch Pole

    Hitch Pole 6-14 Schulte SRW 1400 March, 2003...
  • Page 51 Lock nut, 5/16" UNC 250-007 Bolt, 5/16" x 1" UNC 250-011 Bolt, 5/16" x 2-1/2" UNC 256-018 Washer, 1/4" 250-002 Bolt, 1/4" x 1" UNC 270-025 Lock nut, 1/4" UNC R200-133 Manual mount 280-200 Manual storage box 6-15 Schulte SRW 1400 March, 2003...

  • Page 52: Wheel Standard, Pivoting

    Wheel Standard, Pivoting VIEW IS FROM THE FRONT OF THE MACHINE 6-16 Schulte SRW 1400 March, 2003...
  • Page 53 Grea se zerk R200-109 Pivot link 250-109 Bolt, 3/4" x 5-1/2" UNC R200-104 Left leg 256-001 Flat washer, 1" R200-106 Left link arm, 30" 270-001 Lock nut, 3/4" UNC R200-103 Right leg 257-006 Jam nut, 1" 6-17 Schulte SRW 1400 March, 2003...

  • Page 54: Wheel Standard, Transport

    Wheel Standard, Transport 6-18 Schulte SRW 1400 March, 2003...
  • Page 55 Roll pin, 1/4" x 2" 256-003 Flat washer, 3/4" R200-122 Interlock rod R200-120 Interlock rotator R200-127 Bar pins R200-126 Interlock bar 273-006 Grea se zerk 262-004 Roll pin, 3/8" x 3" 256-011 Flat washer, 1/2" 6-19 Schulte SRW 1400 March, 2003...

  • Page 56: Hub, Axle, Tire (H517)

    Hub, Axle, Tire (H517) 6-20 Schulte SRW 1400 March, 2003...
  • Page 57 Hub c/w axle, includes #1-12 257-019 Nut, 5/8" UNC 255-005 Lock washer, 5/8" 586-011 Axle bac king plate 250-078 Bolt, 5/8" x 6" UNC 36-17 Axle & plate 36-70 Hub & axle plate, includes #17 & 22 6-21 Schulte SRW 1400 March, 2003...

  • Page 58: Hub, Axle, Tire (H511)

    Hub, Axle, Tire (H511) 6-22 Schulte SRW 1400 March, 2003...
  • Page 59 Bushing, 3/4" x 1-“1/4 x 10 ga. 201-005 Rim, 15" x 6 ", 5 b olt 211-002 Valve, all tubeless 210-157 Tire, 9.5L x 15, 6 ply 207-028 Bolt, 1/2" x 1-1/4 -20 UNF 206-009 Hub, complete, includes #2-12 6-23 Schulte SRW 1400 March, 2003...

  • Page 60: Chain Case Components

    Chain Case Components 6-24 Schulte SRW 1400 March, 2003...
  • Page 61 Shaft cap with key slot 256-011 Flat washer, 1/2" 250-061 Bolt, 1/2" x 1-1/4 UNC 311-802 Offs et link, 15 tooth Offs et link, 17 tooth 268-004 Set screw, 3/8" x 1", allen hd, cup point 6-25 Schulte SRW 1400 March, 2003...

  • Page 62: Hydraulic Components

    Hydraulic Components 6-26 Schulte SRW 1400 March, 2003...
  • Page 63 Tu be clamp, plastic 250-011 Bolt, 5/16" x 2-1/2" UNC 126-121 Hydraulic tube, 113-15/32" long 250-024 Bolt, 3/8" x 2" UNC 111-254 Hose assembly, 3/8" x 79" long 108-001 Male elbow, 3/4-16 JIC, 37 6-27 Schulte SRW 1400 March, 2003...

  • Page 64: Hydraulic Cylinder, 3 X 8 Monarch (100-3121)

    Se al kit 101-220 Cylinder tube 257-022 101-202 Rod clevis 101-203 Rod cap 101-004 Piston 250-023 Clevis bolt 257-032 101-090 Rod, 3/8" x 8" 101-221 Tie rod, 3/8" x 8" 101-023 Piston nut 101-020 Depth stop 6-28 Schulte SRW 1400 March, 2003...

  • Page 65: Slip Clutch, 800 Nm, Bp Ff1 (341-4030)

    341-0414 Flange yoke 341-630 Bushing 341-722 Lining 341-723 Flange hub, 1-3/8" x 6 spline 341-801 Tapered pin & nut 341-724 Drive plate 341-725 Thrust flange 341-636 Bolt & nut 341-4030 Slip clutch, com plete 6-29 Schulte SRW 1400 March, 2003...

  • Page 66: Tractor Universal Joint, Bp Size 4 (340-450)

    Inner cone set 341-686 Inner tube shield bearing 341-692 U joint half, imp lement end, com plete 341-693 U joint half, tractor en d, comp lete 340-450 Com plete tractor shaft a ss em bly 6-30 Schulte SRW 1400 March, 2003...

  • Page 67: Universal Joint, Bp Size 4 (340-453)

    Inner Yoke 341-4025 Inner tube 341-0407 Ring nut 341-4027 Outer tube, 1-3/8" x 6 spline 341-686 Inner bearing 341-687 Inner cone 341-4028 Inn er shield 341-4029 Oute r shield 341-4026 Outer cone 341-691 Outer bearing 6-31 Schulte SRW 1400 March, 2003...
  • Page 68 Universal Joint, BP Size 6 (340-627) 6-32 Schulte SRW 1400 March, 2003...

  • Page 69: Universal Joint, Bp Size 6 (340-627)

    341-6092 Un ivers al joint half, male, com plete 341-6093 Un ivers al joint half, fema le com plete 341-614 Inner cone set 341-716 Outer cone set 340-627 Com plete universal joint as sembly 6-33 Schulte SRW 1400 March, 2003...
  • Page 70 Gearbox, BP#S2100230004 (330-550) 6-34 Schulte SRW 1400 March, 2003...

  • Page 71: Gearbox, Bp#S2100230004 (330-550)

    331-561 Plu g, level, drain 331-556 Sh im Kit 331-562 Snap ring, .095 thick 331-563 Se al, 45 x 85 x 10 double lip 331-564 Bearing 331-565 Gear 331-566 Case plug, 160mm 331-567 O-Ring 6-35 Schulte SRW 1400 March, 2003...

  • Page 72: Screw Jack, Side Wind (232-600)

    Carriage bolt, 1/4" x 3" UNC 271-008 Cotter pin, 1/8" x 1" 232-605 Dowel 232-606 Handle 257-039 Nut, 1/4" UNC 232-607 Body 232-403 232-608 Bearing 232-609 Washer 232-407 Acme nut 232-610 Dowel 232-611 Acme screw 232-612 6-36 Schulte SRW 1400 March, 2003...

  • Page 73: Transport Kits

    The wiring harness is pre-wired with the 7' leg to attach to the left s ide light, and the 4' leg to attach to the right side light. Refer to the Assembly Section for mounting instructions. 6-37 Schulte SRW 1400 March, 2003...

  • Page 74: Parts Index

    226-179 ....... . 11 257-022 ......25, 28 6-38 Schulte SRW 1400 March, 2003...
  • Page 75 520-095 ....... . 13 6-39 Schulte SRW 1400 March, 2003...
  • Page 76 R200-215 ....... 11 S000-010 ....... 37 6-40 Schulte SRW 1400 March, 2003...
  • Page 77 6-41 Schulte SRW 1400 March, 2003...
  • Page 78 SCHULTE INDUSTRIES LIMITED WARRANTY POLICY ON SRW 1400 PIVOTING ROCK WIINDROWER Schulte Industries Limited ("the manufacturer") warrants to the original purchaser only, that in the event of any defect in material or workmanship in the Rock Windrower, the subject of this warranty ("the goods") during the warranty period mentioned below the manufacturer will provide the cover specified below.
  • Page 79 COVER In respect of claims notified: Commercial use - During the first six (6) months, parts and labour on repair. Non-commercial, governmental, municipal or farm use - During the first twelve (12) months, parts and labour on repair. Rental use - During the first thirty (30) days, parts and labour on repair. The buyer is responsible for any labour charges exceeding a reasonable amount as determined by the manufacturer and for returning the goods to the dealer, whether or not the claim is approved.
  • Page 80 73747 130TH ST ZEARING IA 50276 641-487-7608 INFO@NESSAINC.COM WWW.NESSAINC.COM © 2003 Alamo Group Inc. Printed in Canada...
