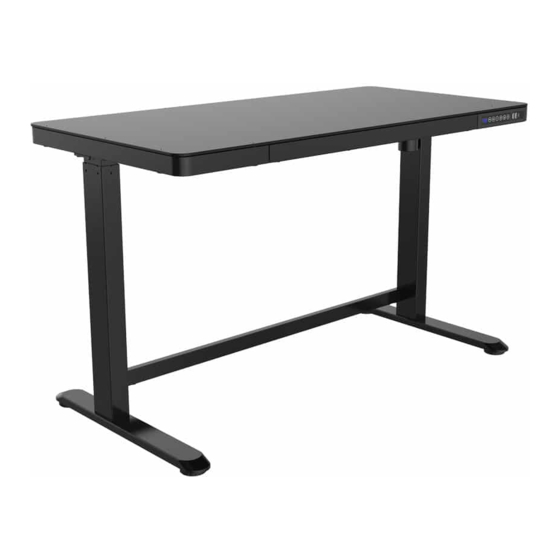

Modern Office ET118 Installation Manual

Item No.: ET118
Child Lock
Component list
1. Tabletop X1
1
2. Lifting columns X1
3. Feet X2
4. Power plug X1
2

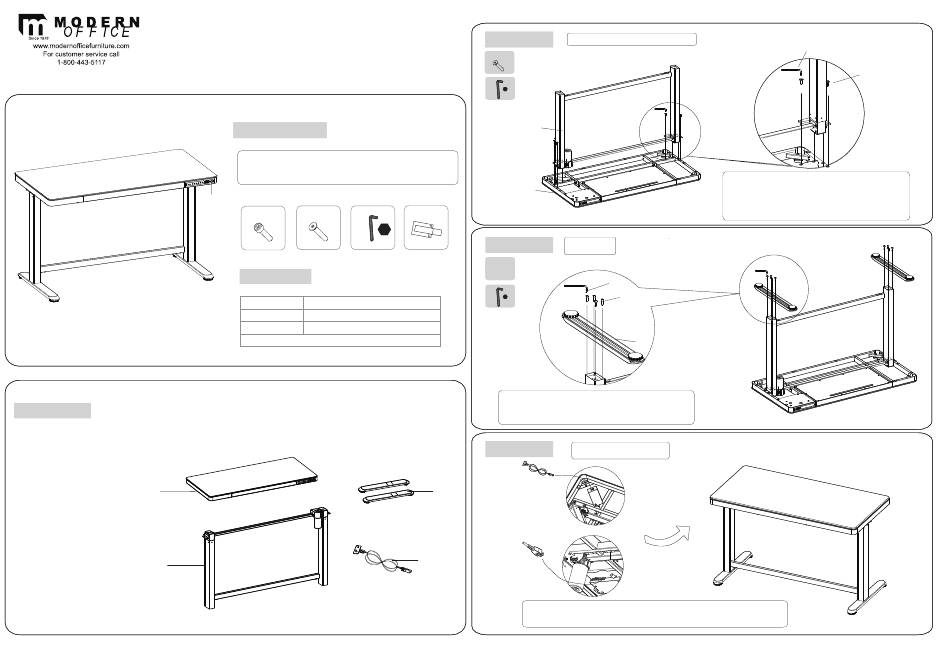

Installation guide
Accessory list
Attention: The drawings below are for guidance only and they may differ
slightly from the product and fittings received. Please contact our customer
service department should you have any queries.
A B C
x1
x8
x8
M8 5x5
M6
Technical data
110 lbs
Max. Weight Capacity
28.3"-47.6"
Height Range
9.1"
Drawer Stroke
Charging Ports/ Child Lock
STEP 1
Install the tabletop and the lifting columns
B
x8
C
5x5
2
1
D
x2
STEP 2
Cable clamp
Install the feet
A
x8
C
5x5
Install the feet (3) to the lifting columns with the screw M6 （A*8）
and tighten it with hex wrench (C).
Caution: Please be careful during installation to avoid falling and
breaking the glass; Pay attention to the directions.
STEP 3
Install the motor and power lines
3
4
Connect the motor plug to the control box, then connect one side of the adapter plug to
the adapter, another side to the power line.
Caution: the motor and power lines can be fixed by cable clamp according to actual use.
Connect the tabletop (1) and the lifting columns (2) with the
screw (Bx8) M8 and tighten it with hex wrench (C).
Caution: Please do not touch the glass surface directly to the
ground during installation, so as not to be scratched by sharp
objects on the table; Please be careful during installation to
avoid falling and breaking the glass
C
A
3
C
B
