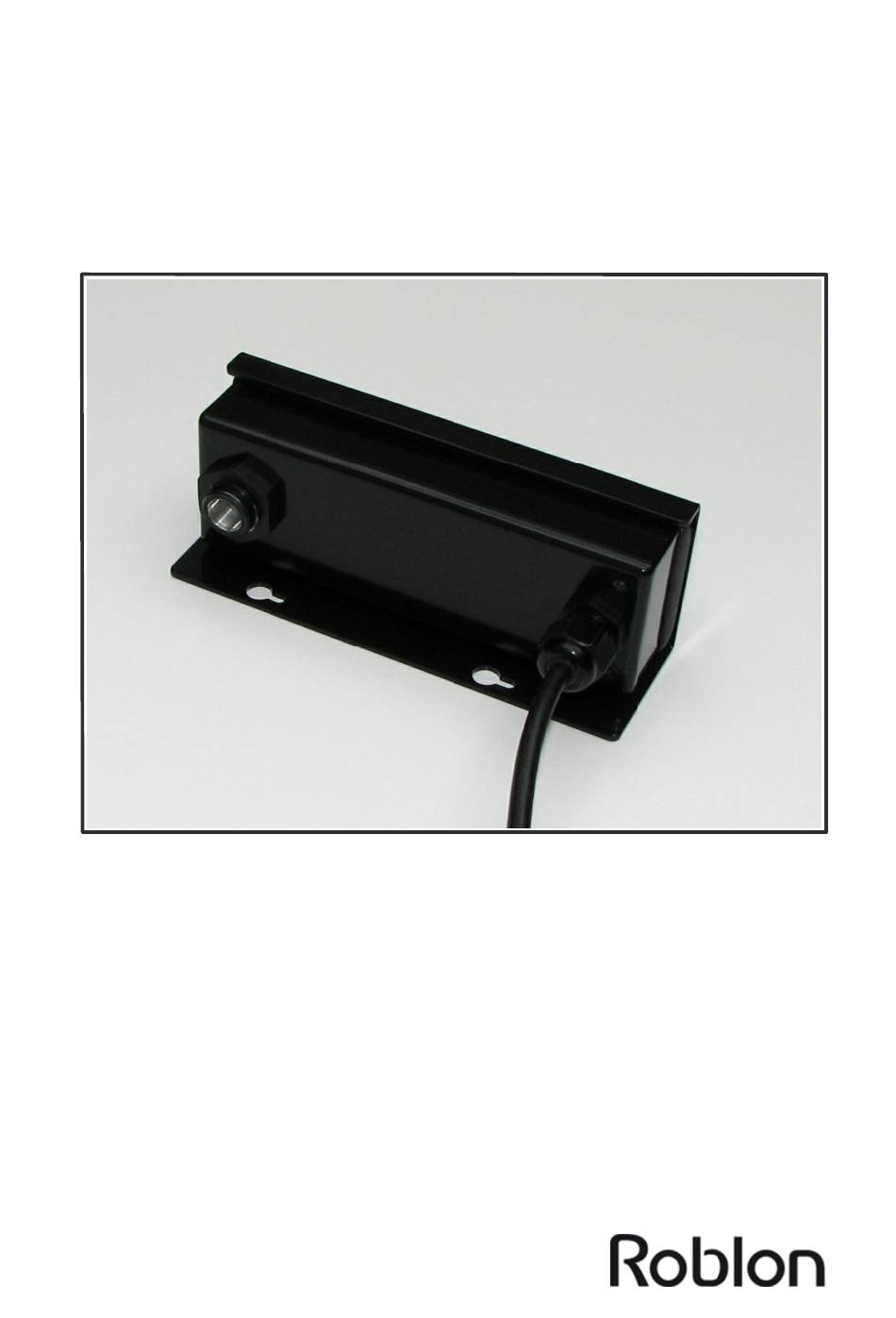

- Page 1 FL 500 XT B LED light generators for use with fibre optic lighting User manual Mounting and installation instructions Item no.: 0121 0211 FL 500 XT B Ø9 3000K +99082113 15.04.2015...
-
Page 2: Table Of Contents
6 Installing in closed compartments 7 Spare parts 8 Troubleshooting 1 Introduction Roblon FL 500 light generators are designed for use. outdoors . with glass or PMMA fibre. in cabinets or showcases, either in closed or semi closed compartments. Follow the installation instructions correctly in order to ensure safe operation. -
Page 3: Product Overview
2 Product overview FL 500 XT B light generator User manual... -
Page 4: Technical Data
3 Technical data Light port Ø9 mm Fibre type PMMA / Glass Total power consumption 5.4 W Supply voltage 200-240 V / 50-60 Hz Applied LED Lumileds Light source lifetime 25,000 hours CCT (nominal) 3,000 K CRI 8 (Ra) typical value Protection rating IP 65 Driver type... -
Page 5: Installation
4 Installation 1. Remove the plug on the end of the light generator. 2. Insert the common end fully in the light port. 3. Tighten the screw on the light port. 4. Mount the plug again. Ensure all installation and ventilation requirements are met and connect the supply cord to the mains. -
Page 6: Surface-Mounting
5 Surface-mounting 1. Attach to surface using two screws (not supplied) in the baseplate holes. 84 mm 6 Installing in closed compartments Requirements: Enough space to allow natural heat transmission through surfaces. Surfaces should not be insulated. Air volume per light generator minimum 0.03 m³. Ventilation holes per light generator with min. -
Page 7: Spare Parts
7 Spare parts Image Item no. 1100 3063 Driver Driver Sunpower 18 W 8 Troubleshooting Problem Trace the problem Solution No light Is the power on? Turn the power on Is the power cord Connect the power cord connected properly properly Is the light generator too Check it is installed... - Page 8 Roblon accepts no responsibility for possible errors in printed and electronic material. Roblon reserves the right to alter or discontinue products without notice. © 2012, Roblon A/S. Roblon Lighting Tel: +45 9620 3300 Nordhavnsvej 1 Fax: +45 9620 3399 9900 Frederikshavn info@roblon.com...
