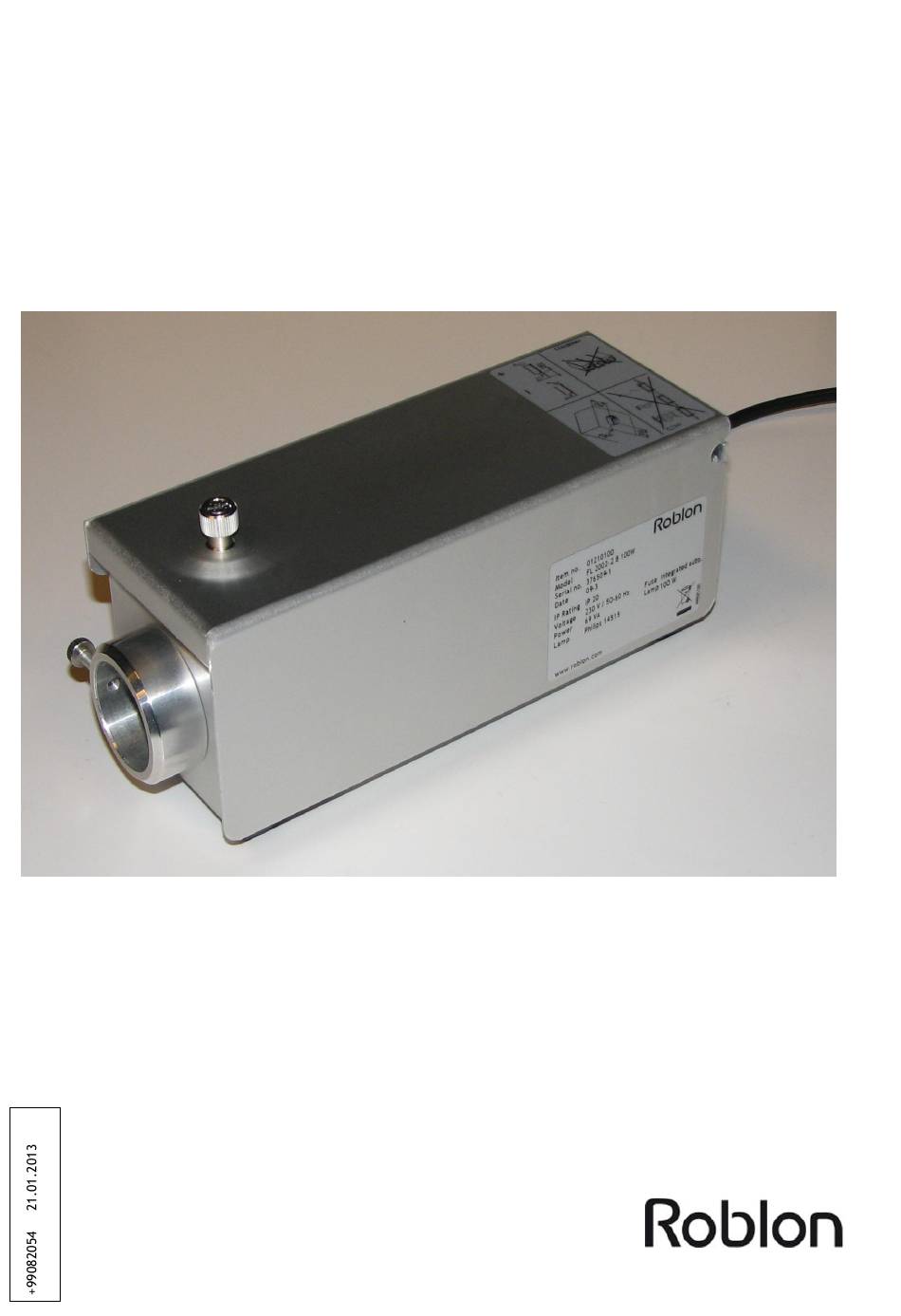

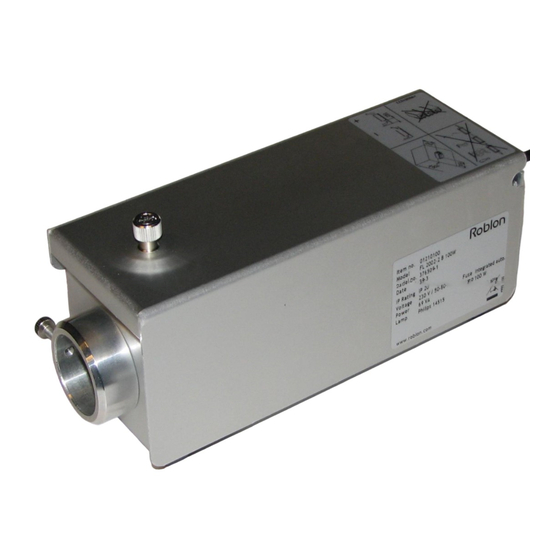

FL 2002 - 2 B
Halogen light generator
for Fibre optic lighting systems
These mounting instructions describes mounting and installation of the following products:
Item no.:
0121 0100
0121 0101
0121 0110
0121 0111
FL 2002-2 B Ø28 100W 230V
FL 2002-2 B Ø9/Ø28 75W 230V
FL 2002-2 B Ø28 100W 120V
FL 2002-2 B Ø9/Ø28 75W 120V
User Manual
Advertisement
Table of Contents
Related Manuals for ROBLON FL 2002-2B
Summary of Contents for ROBLON FL 2002-2B
- Page 1 FL 2002 - 2 B Halogen light generator for Fibre optic lighting systems User Manual These mounting instructions describes mounting and installation of the following products: Item no.: 0121 0100 FL 2002-2 B Ø28 100W 230V 0121 0101 FL 2002-2 B Ø9/Ø28 75W 230V 0121 0110 FL 2002-2 B Ø28 100W 120V 0121 0111...
-
Page 2: Table Of Contents
· Extended lifetime of components · Uninterrupted illumination Your Roblon halogen light generator, type FL 2002-2 B is intended for indoor use in fibre optic lighting systems using either glass and PMMA fibres. This light generator is prepared for use in cabinets or showcases, either closed or semi closed compartments. -
Page 3: Product Overview And Packing List
2. Product overview and packing list Contents of this box: - FL 2002-2 B - Adaptor kit Ø28 -> Ø9 (including allen key) - User manual 3. Technical info Light port size: Ø28 mm. Ø9 focus with the supplied adapter Fibre type: PMMA/Glass Supply voltage:... -
Page 4: Installing The Light Generator
4. Installing the Light generator 1. Mount the Ø9/Ø28 adapter on the harness common end. 2. Secure the set screw with the supplied allen key. 3. Insert the harness' common end fully into the light port on the light generator. 4. -
Page 5: Mounting Of Optional Colour Filters
6. Mounting of optional colour filters. (not included). 1. Loosen the finger screw and open the lid. 2. Mount the Colour filter. 3. Close the lid again and secure the finger screw. 7. Trouble shooting Symptom Cause Solution Is the power ON? Turn ON the power. - Page 6 When Installing one or more light generators in a closed compartment The light generator need to breathe to keep cool. Ventilation holes must be made in the compartment corresponding to min. 29 cm² of air intake and min. 29 cm² of exhaust air. When using this installation method, the air intake and exhaust of the light generator must be separated.
-
Page 7: Spare Parts
8. Spare parts Description Roblon item no.: Model designation Image +65127595 14515 from Philips (for 75W units) Lamp +65129905 6834/25H FO from Philips (for 100W units) +64060122 KDE-1206PTV2 MS.A.GN from Sunon Heat filter +54001000 KG-2 HTM105 from Osram (for 100W European... - Page 8 Tel: +45 9620 3300 Nordhavnsvej 1 Fax: +45 9620 3399 9900 Frederikshavn info@roblon.com Denmark www.roblon.com Roblon accepts no responsibility for possible errors in printed and electronic material. Roblon reserves the right to alter or discontinue products without notice. ©2012, Roblon A/S...
