Digital Astronomic Timer

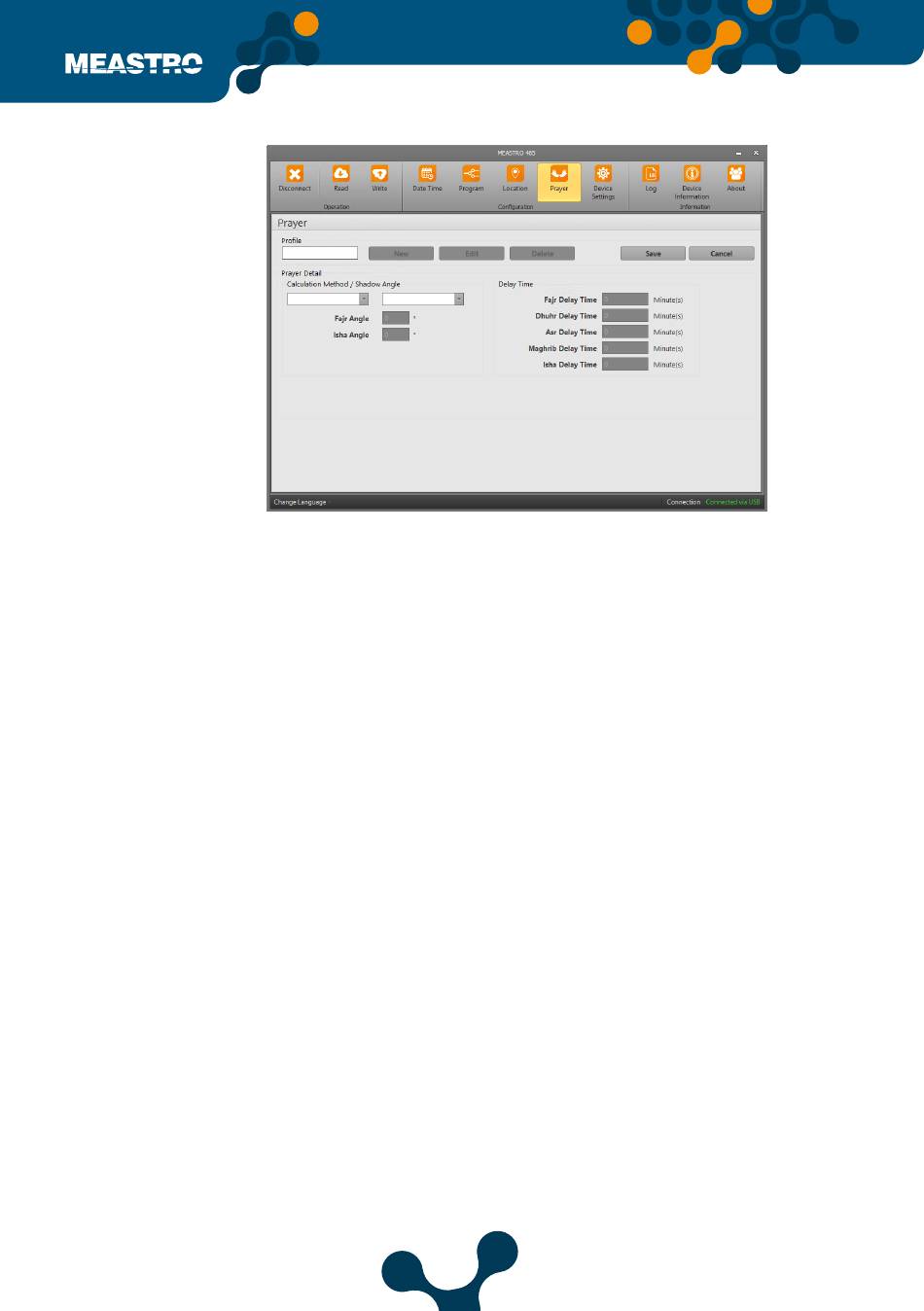

Figure 5-29 Meastro User Interface Program Prayer Tab
In this tab, Meastro's Prayer Settings can configure.
The calculation metod/shadow angle and delay times are set according to the position.
Prayer Settings will be set as follows,
Click 'New' and the buttons are activated.
Calculation Method / Shadow Angle: The name of the region is selected where device is working.
When 'Custom' select Fajr and Isha Angle will be configurable. For other region, interface directly sets
the value. Shadow angle can be set to 1 ° and 2 °
Delay Time: Fajr-Dhuhr-Asr-Maghrib-Isha delay times are written by user.
After entering the values, click on 'Save' button. User can write all prayer settings on Meastro-RS 485.
