P+L Systems Insect-O-Cutor Uplighter Quick Start Manual

Decorative Glueboard Insect Control
Please read these instructions carefully and store in a safe
place for future reference.
UPLIGHTER
TM
As part of the Insect-O-Cutor
products, Uplighter is a compact and highly effective
TM
decorative insect control unit for use within front of house
applications. Uplighter utilises a highly effective
TM
dual wavelength UV tube and is designed for use with a high
specification glupac glueboard.
®
CONTENTS OF PACKAGE
- 1 x Uplighter flykiller
TM
- 1 x Mains cable (Type X)
- 1 x glupac pheromone impregnated glueboard
®
- 3 x Screws and wall plugs
- 1 x 15W 18" Synergetic tube (fitted)
®
WARNING - THIS APPLIANCE MUST BE EARTHED (CLASS 1)
INSECT CONTROL PRODUCTS
Uplighter utilises a high powered dual wavelength ultra
TM
violet tube to attract flying insects and retains the caught
insects on a pheromone impregnated glueboard for
inspection or hygienic disposal.
WARNING
Uplighter is not to be used by children or persons with
TM
reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given
supervision or instruction.
Children should be supervised to ensure they do not play
with the appliance.
If the mains cable is damaged it must be replaced by a
specialist mains cable available from P+L Systems Ltd or your
supplier.
Not suitable for applications where potentially explosive
environments may exist.
POSITIONING AND GUIDANCE FOR USE
THIS UNIT IS FOR INDOOR USE ONLY.
Uplighter should ideally be fixed around two meters above
TM
the ground, preferably in the darkest place within the area to
be protected. Do not position the unit close to windows,
skylights or other sources of light, or where it may be obscured
by furniture, doors or other obstacles. Ideally, Uplighter
should be visible from every part of the area to be protected.
Uplighter should ideally be in operation for 24 hours a day,
TM
ensuring your premises are kept free of flying insects. Insects
are most attracted to Uplighter
competition from daylight or other light sources.
GUARANTEE
Uplighter has a five year guarantee and if maintained as
TM
recommended in these instructions should continue to work
for many years.* Use of non-approved consumables may
invalidate the guarantee. Ensure genuine glupac
glueboards are used in conjunction with this product.
*Excludes tube, glueboard and starter. Does not cover breakdown due to misuse, incorrect
operation or use in an incorrect application.
brand of insect control
®
Synergetic
TM
at night when there is no
TM
®
INSTALLATION
INSTALLATION SHOULD BE CARRIED OUT BY SERVICE
PERSONNEL ONLY.
Uplighter should be mounted as shown in the mounting
TM
options section of this document, using the supplied wall
mounting plugs and screws, making sure correct wall plugs
are used for specialist mounting materials, such as
®
plasterboard.
To install Uplighter , drill two fixing holes at the appropriate
TM
distance as described below, before inserting the wall plugs
then inserting the fixing screws. To firmly secure Uplighter
into position, swing down the front guard, then mark the
location of the third fixing hole onto the mounting surface.
Remove Uplighter , then drill the final fixing hole and insert
TM
the wall plug. Finally, replace Uplighter
screws through the keyhole slots, before securing in position
by screwing through the round fixing hole. Swing the front
guard back into position.
Once installed in position, fit the glupac
position as described in the glueboard replacement section
of this document. Use the removable mains lead and plug to
connect the Uplighter
CLEANING
CLEANING SHOULD BE CARRIED OUT BY SERVICE PERSONNEL
ONLY, AFTER ENSURING THAT THE UNIT IS DISCONNECTED
FROM THE MAINS SUPPLY.
It is recommended that cleaning is carried out regularly when
the glueboard is replaced. Once the glueboard is removed,
the unit should be thoroughly wiped down with a damp
cloth, removing any build up of dirt. Ensure the unit is
completely dry before reconnecting it to the power supply.

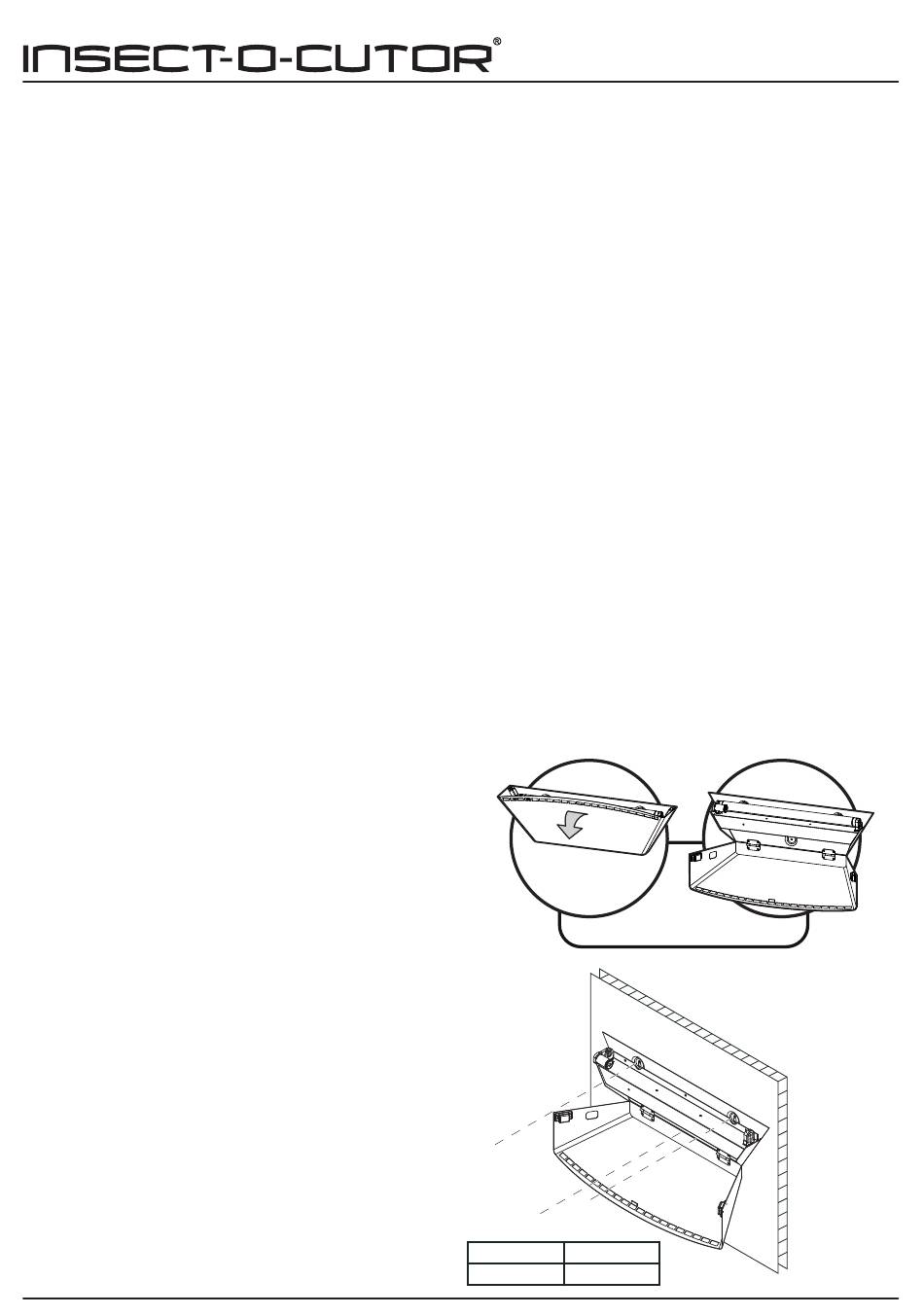

Front Guard Removal
WALL MOUNTING
MOUNTING FIXING CENTRES
METHOD Uplighter
Wall 300mm
Uplighter
onto the two fixing
TM
glueboard in
®
to an appropriate power supply.
TM
TM
Uplighter
