Summary of Contents for Innosonian BRAYDEN PRO

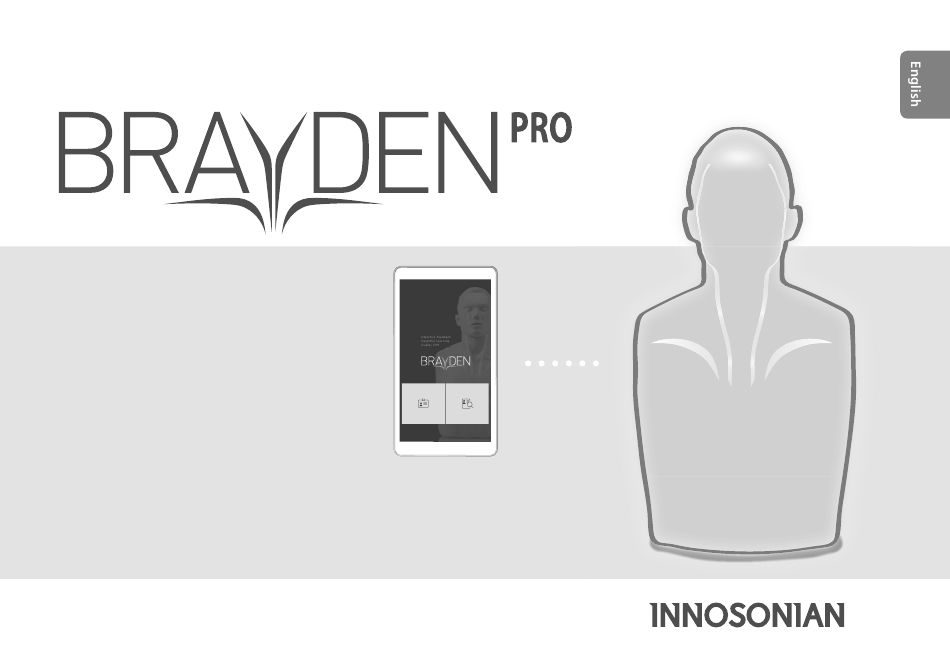

- Page 1 Advanced CPR Coaching Instructions for Use...
-
Page 2: Getting Started
‘BRAYDEN PRO’ is the first CPR training manikin in the world which has a blood circulation display – designed to help the student understand and remember the principles of CPR – including a mobile app. -
Page 3: Component Names
Component names ① Normal circulation indication light When the compression depth and speed and correct release between compressions are performed, the light will illuminate. With this light, the student can easily see if the compressions are being performed at the correct depth and frequency. ②... - Page 4 Should be downloaded under a WiFi environment. Communication charges may apply in some cases. For optimal operation of the BRAYDEN PRO app, a Google Android device equipped with Android operating system version 6.0 or higher and Bluetooth hardware 4.1 or higher is recommended.
- Page 5 Connecting the mobile app Learner ▒ Connecting with the BRAYDEN PRO manikin mode 1. Turn on the manikin’s power 4. Once the connection is made, 3. Select the relevant manikin switch. (The Bluetooth the Bluetooth button of the from the Bluetooth list.
- Page 6 Fast compression ▒ ▒ Note When the BRAYDEN PRO app is connected, the manikin’s indication lights will not illuminate if the chest compressions are performed for the purpose of education. When the manikin is turned on, a one-time automatic calibration is carried out for approximately 2 seconds.
- Page 7 Brayden Pro mobile app and look for a change in the CPR feedback display. Note Consider adding the following note: The Brayden Pro manikin can also be ventilated using other airway barrier devices such as an Adult sized pocket mask or an Adult sized Bag Valve Mask.

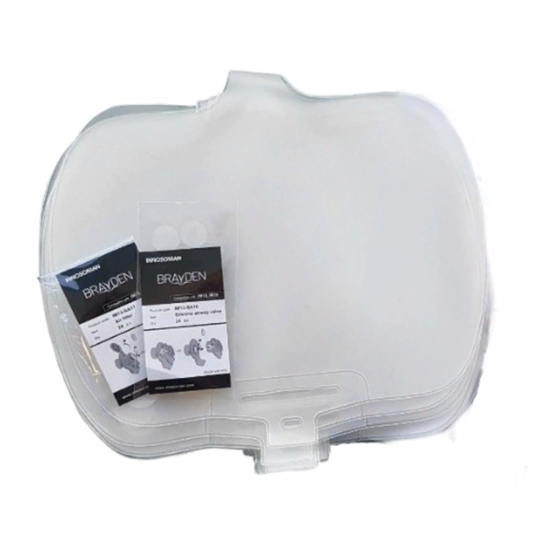

- Page 8 Maintenance of the manikin ▒ Replacing the artificial lung Note To see a video of how to change the lung then please go to www.innosonian.eu ▒ Replacing the battery Caution Keep used batteries out of reach of children and dispose of safely.
- Page 9 Product specifications and optional accessories ▒ Components and optional accessories ▒ Product specifications (IM16 ) Dimensions 32 cm x 59 cm x 21 cm (W x H x D) Weight 3.2 kg (7.0 lb) Operating temperature 0 °C – 40 °C (32 °F – 104 °F ) Face skin Body skin Head unit...
-
Page 10: Quality Assurance
IM16 - Damage or defect of the manikin due to natural disasters such as fire, earthquake, flood, Manufacturer / Country Innosonian, Inc. / Korea lightning, and other events that are beyond the scope of the company's control Authenticator identification code...
