  • Page 1 CPR Training Manikin Instructions for Use...

  • Page 2: Getting Started

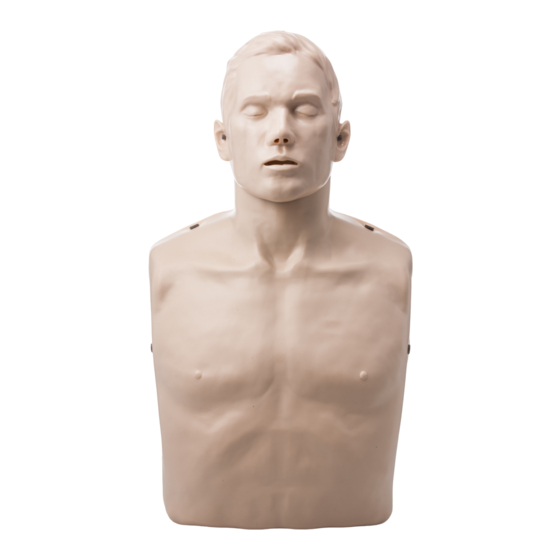

    ‘BRAYDEN’ is the first CPR training manikin in the world which has a blood circulation display – designed to help the student understand and remember the principles of CPR. The product package includes the following components.

  • Page 3: Product Name

    Product name ① Normal circulation indication light This illuminates to represent that blood is reaching the brain. When the depth and speed of the compressions are correct, the light will illuminate. The brightness of the light varies according to the depth of the compressions. ②...
  • Page 4 How to use the manikin ▒ Chest compression Turn on the manikin. Begin compressions. The ‘blood circulation’ and ‘compression When chest compressions with a depth of Ensure that the power status indicator depth’ indication lights will illuminate according to the depth compression between 5cm and 6cm and a speed lamp is illuminated green.
  • Page 5 ▒ Change the operation method ▒ Change the clicker setting < ON > < OFF > < Basic operation > < Specialized operation > When the manikin is turned on, the manikin always operates in <basic operation>, and Turn the ‘clicker’ on and off using the switch as shown. The clicker makes a “clicking“ when chest compressions with a constant depth of compression over 3cm for 5 seconds sound when the chest is compressed more than 5cm.

  • Page 6: Maintenance

    Maintenance ▒ Replacing the artificial lung ▒ Battery Replacement method Caution Keep the used batteries out of reach of children and dispose of safely. Do not use new batteries and old batteries together. When replacing them, replace all 6 batteries together. If you do not use the manikin for a long period of time, remove and store the batteries.

  • Page 7: Product And Accessories

    Product and accessories ▒ Accessories ▒ Product : CPR Training Manikin “BRAYDEN” Face skin Body skin Head unit Chin IM13-SA01 IM13-SA02 IM13-SA03 IM13-SA04 Body Face connection Airway valve IM13 IM13-S IM13-SA05 IM13-SA06 IM13-SA07 IM13-SA08 (Blood circulation display type) (Simple type) The IM13-S model does not include the blood circulation display function.

  • Page 8: Quality Assurance

    Quality assurance Service center The manikin is guaranteed against defects for 3 years from the date of purchase. This Innosonian, Inc. guarantee covers the mechanical parts of the manikin only, the electronic components are Homepage www.innosonian.com guaranteed for 2 years from the date of purchase. Consumable items are excluded from...
