Amana RC17S2 Service Training Manual page 44

6HUYLFH 7HVW ,QYHQV\ &RQWURO ZLWK *UHHQ 'LVSOD\ 5&  05&  0&  '4+6,  .)&
NOTE: Unit must be in OFF condition
INITIAL power up mode.

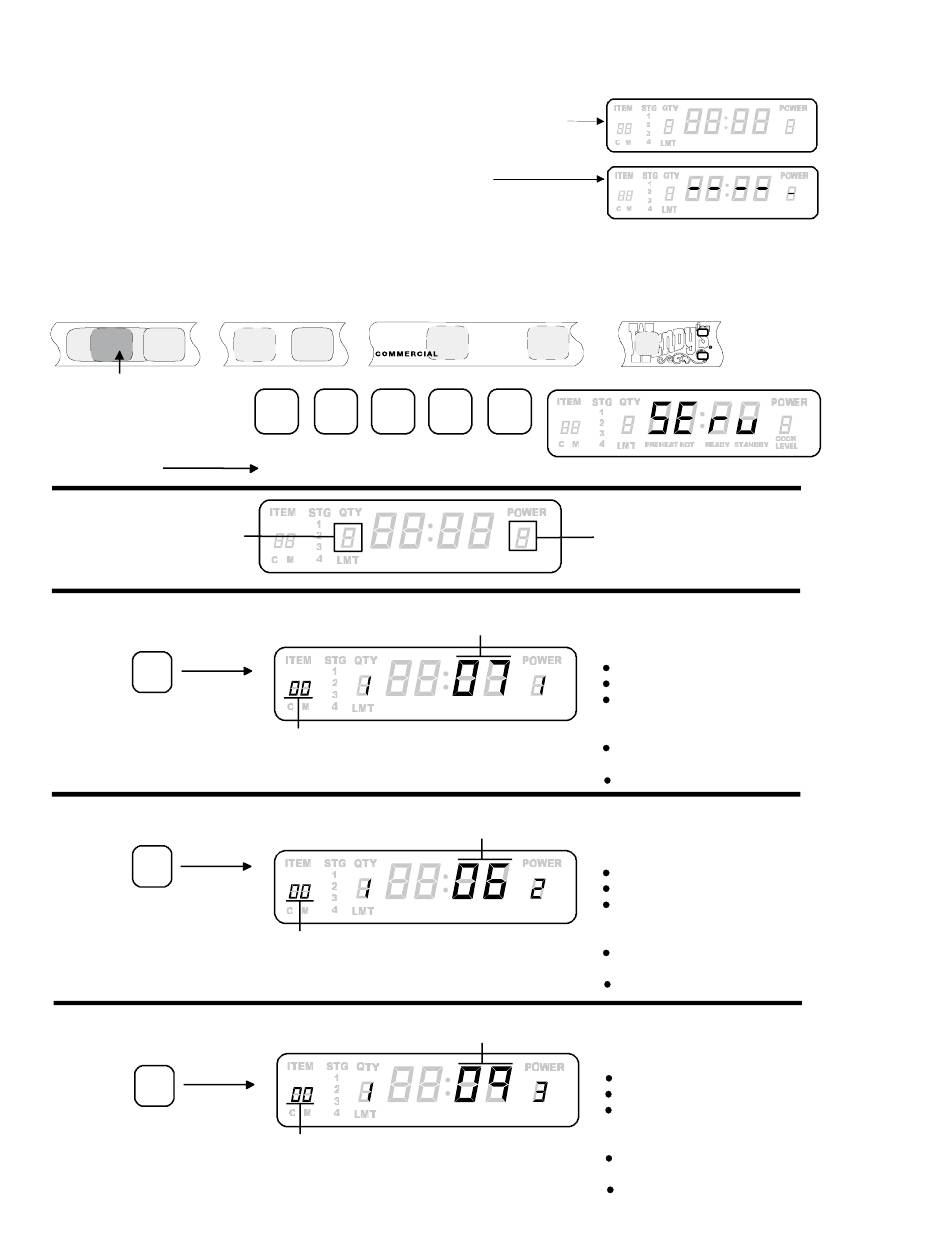

To Enter Service Test Mode, oven door must be closed.
NOTE: Pads will not beep when accessing Service Test Mode.
To EXIT Service Test Mode press STOP/RESET pad.
MC units
1 BREAKFAST
2
REG MENU MENU
3
PREP
4 MISC
Hidden
Pad
Press Hidden Pad Then
as indicated above
on touch panels.
Press
0 = Deactivated
1 = Activated
High Voltage System # 1
1
Toggles Magnetron 1
(Top Rear) ON/OFF.
High Voltage System # 2
2
Toggles Magnetron 2
(Top Front) ON/OFF.
NOTE: Not Applicable on Two Magnetron models:
DQ22HSI, RC17S, RC17SD2, and RC22S.
High Voltage System # 3
3
Toggles Magnetron 3
(Bottom) ON/OFF.
or
DQ22HSI
Hidden
MENU
Pad
1 3 5
Display
PREHEAT NOT
Displays actual Amperage,
will vary by model
PREHEAT
Timer counts up to 62 seconds and unit shuts off.
Displays actual Amperage,
will vary by model
PREHEAT
Timer counts up to 62 seconds and unit shuts off.
Displays actual Amperage,
will vary by model
PREHEAT
Timer counts up to 62 seconds and unit shuts off.
RC units
Hidden
QUANTITY
Pad
7 9
Component Evaluation
Indicates
Service
COOK
READY STANDBY
LEVEL
COOK
NOT READY STANDBY
LEVEL
COOK
STANDBY
NOT READY
LEVEL
COOK
NOT READY STANDBY LEVEL
42
PREHEAT NOT READY STANDBY
PREHEAT NOT READY STANDBY
WDYRC2
Hidden
Pad
Mode
If no Amperage, check for line
voltage at H.V. transformer
primary winding.
If no voltage, check:
Interlock switch (secondary)
Triac 1
H.V. board (relay K8 if 230 VAC,
K9 if 208 VAC, and triac 1
drive voltage T1 - G)
Wiring
If voltage is present, check:
H.V. components and wiring.
If no Amperage, check for line
voltage at H.V. transformer
primary winding.
If no voltage, check:
Interlock switch (secondary)
Triac 2
H.V. board (relay K4 if 208 VAC,
K5 if 230 VAC, and triac 2
drive voltage T1 - G)
Wiring
If voltage is present, check:
H.V. components and wiring.
If no Amperage, check for line
voltage at H.V. transformer
primary winding.
If no voltage, check:
Interlock switch (secondary)
Triac 3
H.V. board (relay K6 if 230 VAC,
K7 if 208 VAC, and triac 3
drive voltage T1 - G)
Wiring
If voltage is present, check:
H.V. components and wiring.
COOK
LEVEL
COOK
LEVEL
