6.4 DSL Status Table

From the NetDSL Manager click on the Status icon, click on the Show Details
button, and then select the DSL Status Table tab.
The DSL Status Table tab displays all the user-defined ATM interfaces and
protocol configuration. For each ATM interface listed, the DSL Status Table will
show the ATM PVC Name, Encapsulation Type, Sent Packets, Received Packets,
and NAT IP address.

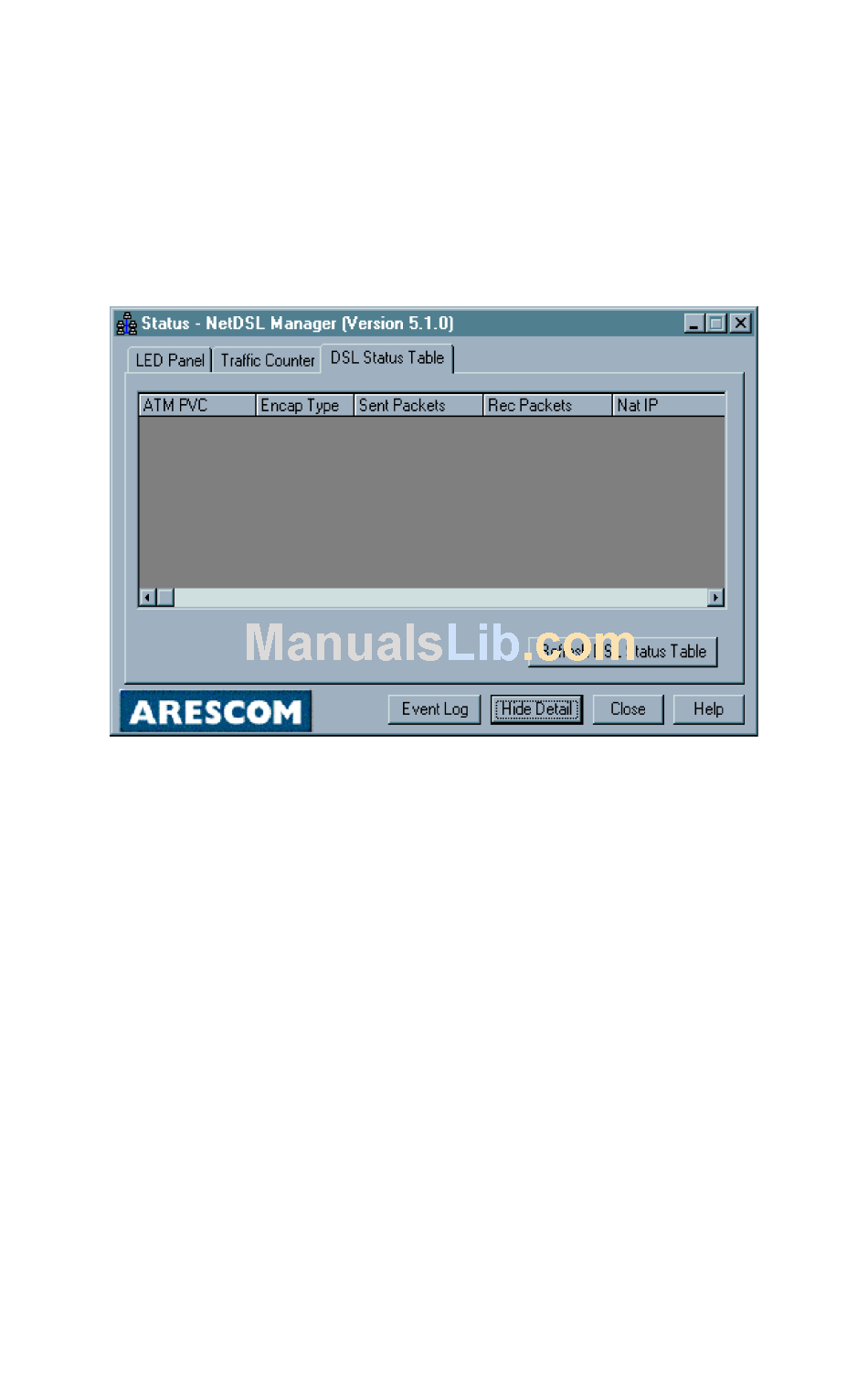

Figure 6.5 DSL Status Table Tab in Status
To update and display the changes in the DSL Status Table tab, click the Refresh
Status Table button.
To return to the Main Status panel, click the Hide Details button. To exit Status
and return to the NetDSL Manager, click the Close button
