Dsl Configuration - ARESCOM NetDSL 800 ADSL Modem version 5.2b1 User Manual

Configuration

5.5 DSL Configuration

DSL Configuration
From Configuration, double-click on the DSL Configuration icon. To create a
new ATM PVC interface, select the appropriate DSL line mode and double-click
on the Make New ATM PVC icon.

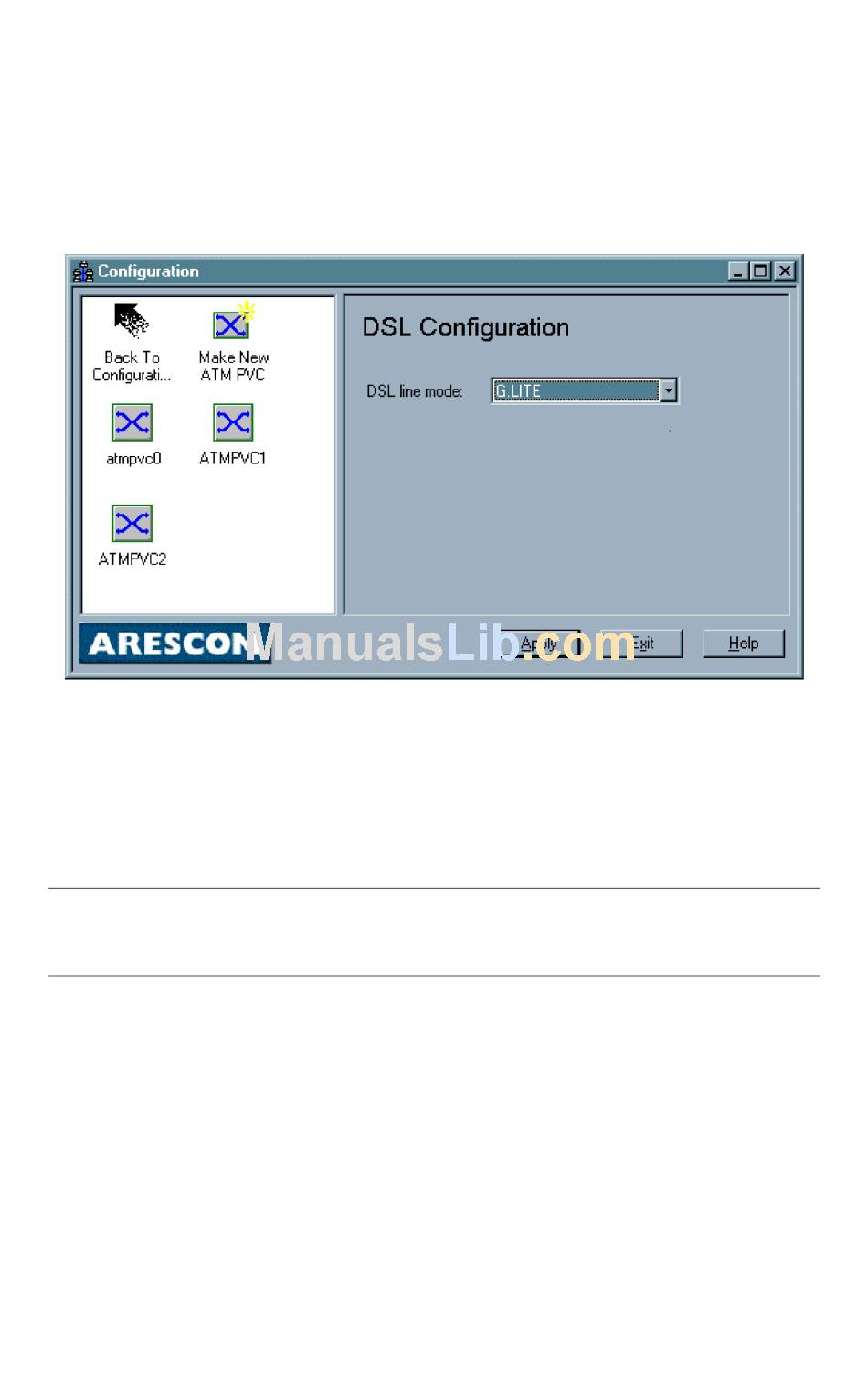

Figure 5.5
You have the option to use ANSI T1.413, G.Lite, G.DMT, or Multi Mode as your
DSL line mode. To find out which DSL line mode works better with your unit,
please consult your ISP or telephone company.
When you are done, click Apply to go to the next window.
Note: The DSL line mode refers to the entire NetDSL unit and not each
individual ATM PVC profile. Once you have made your choice, all subsequent
ATM PVC profiles created will be using the same line mode.
5-8
NetDSL Software User's Guide
DSL Configuration
