CALEFFI 7200 Series Operating Steps - Installation Manual

CALEFFI 7200 Series Operating Steps - Installation Manual

Heat cost allocator

Advertisement

Quick Links

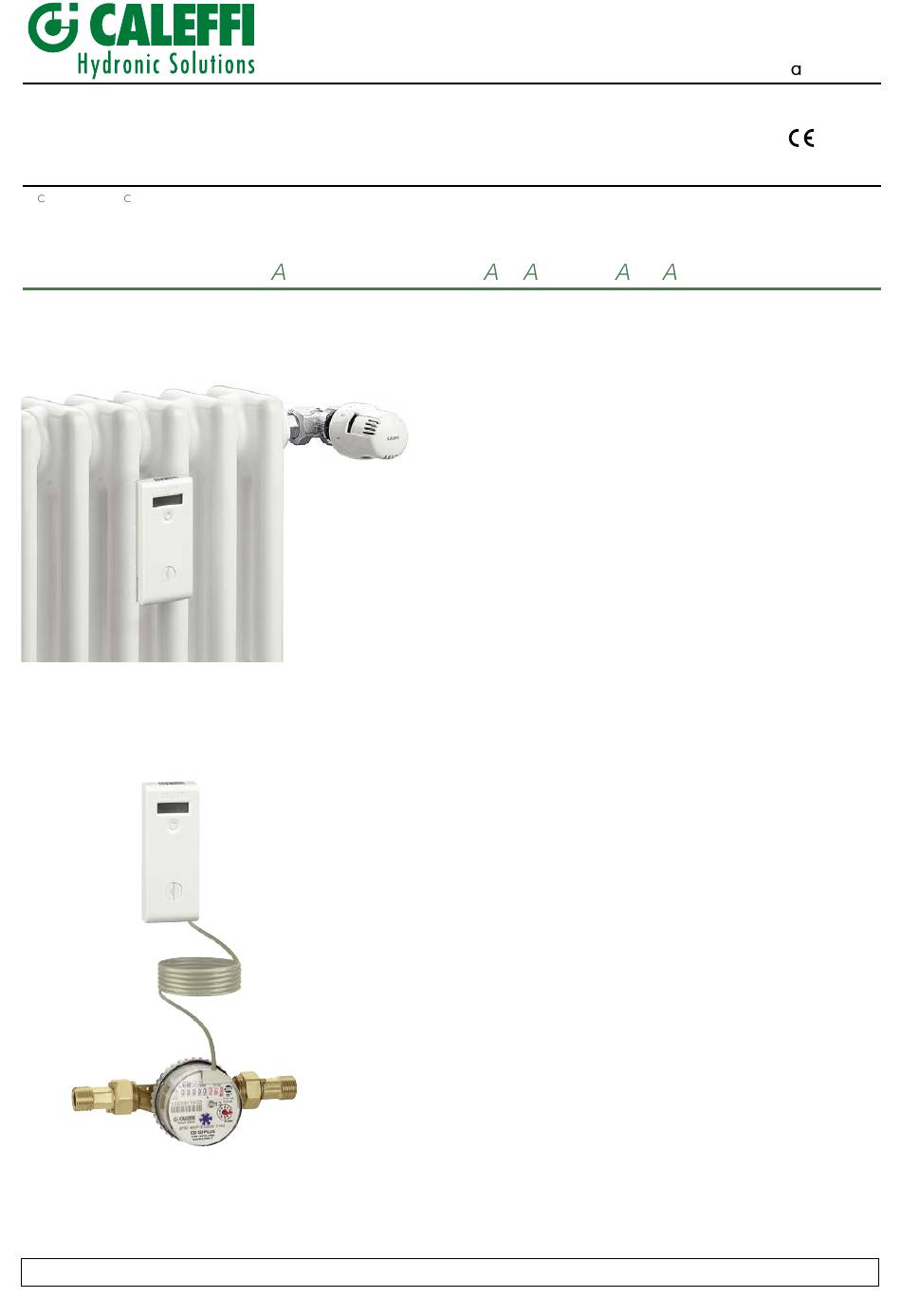

Heat cost allocator MONITOR 2.0/MONITOR 2.0 E
Domestic water consumption data acquisition device
MONITOR 2.0 PULSE
©
opyright 2014
alef fi
OPER TING STEPS - INST LL TION M NU L
CAUTION! CONSULT THIS MANUAL BEFORE USING THE PRODUCT
Function
MONITOR 2.0 and MONITOR 2.0 E are latest-generation electronic
heat cost allocators to be fitted on each radiator to meter heat
consumption in buildings with centralised systems featuring vertical
heating distribution (riser type).
When combined with a thermostatic or chrono-thermostatic valve,
both temperature regulation and metering of heat consumption are
performed, obtaining improved comfort, quantification of the actual
heat consumption and a fair allocation of costs.
The heat consumption data can be collected via radio and
processed directly by the building administrator/manager.
MONITOR 2.0 PULSE is a pulse acquisition device that, combined
with a domestic hot and/or cold water meter with pulse output,
enables measuring domestic water consumption for cost accounting
for each dwelling.
Consumption data can be collected via radio and processed directly
by the building administrator/manager via the same software used
for reading heat cost allocators MONITOR 2.0/2.0 E
78204.01 EN
www.c leffi.com
0470
7200 series
