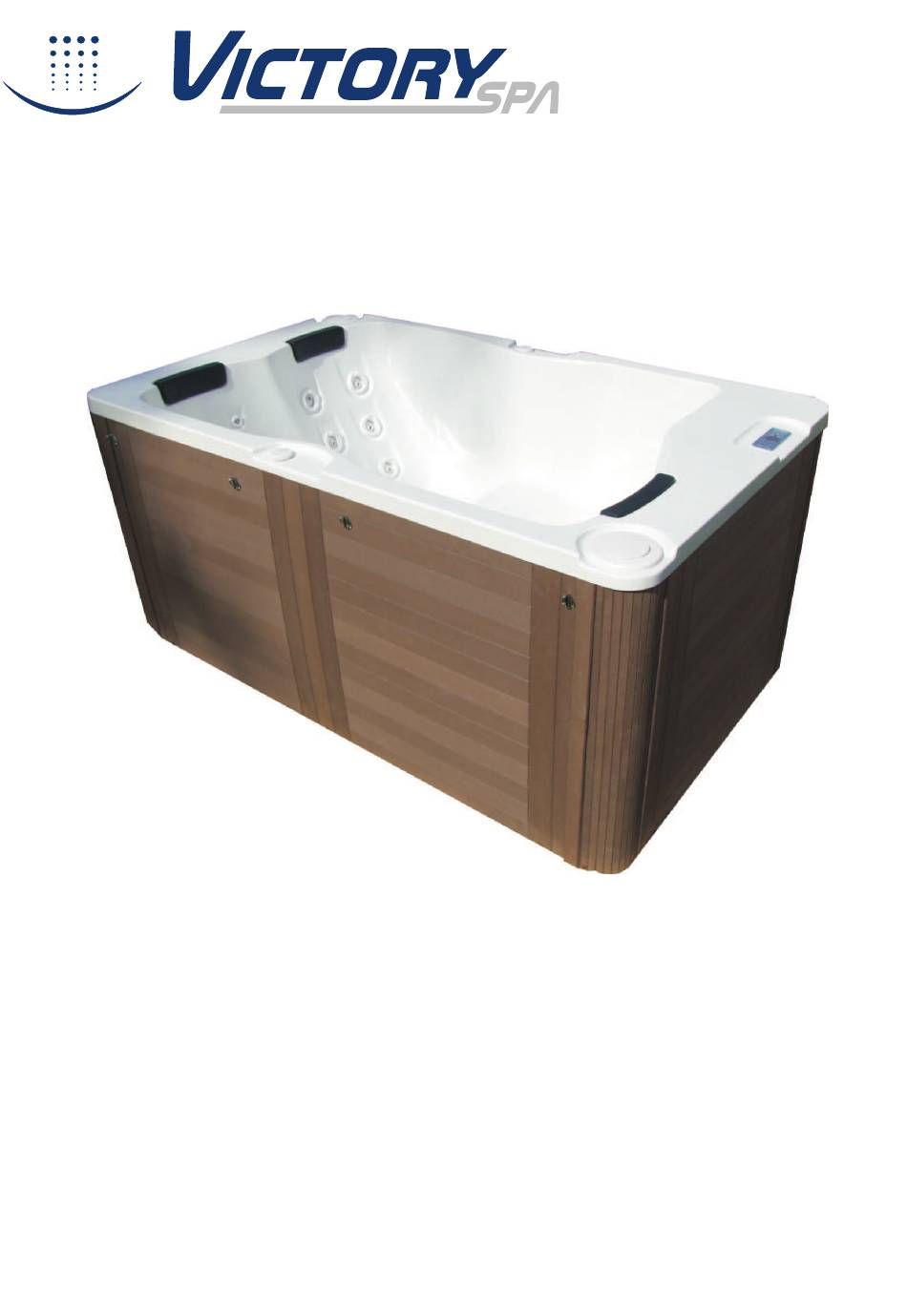

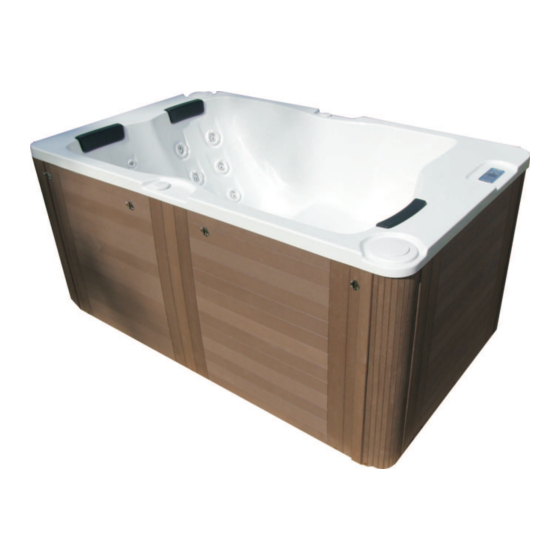

- Page 1 PORTABLE SPA DAISY Installation manual...
- Page 2 IMPORTANT SECURITY INSTRUCTIONS Following precautions and rules of procedures shall be implemented during installation and use of DAISY bathtub: REMARK! In order to reduce the risk SPA shall not be used by children without adults' supervision. In order to reduce the risk of getting wounded suction parts shall not be removed. Suction system is adjusted to specific flows of water generated by pumps.
- Page 3 1. Description - Too large whirling super nozzles - Too large feet nozzles - Big whirling nozzles - Medium whirling nozzles - Mini whirling nozzles 1.Color underwater lightning - chromo therapy 2.Water suction - hydro massage 3.Water suction - filtration 4.Skimmer 5.Control desk 6.Loudspeakers (optional)
-
Page 4: Installation
I. Installation 2. Place preparation Portable SPA bathtub may operate inside as well as outside. The place where the bathtub is to be installed shall meet the following conditions: a) Appropriate space of the room (in case of closed rooms) b) Appropriate size of the transport road, c) Connected voltage of 230V and ensured efficiency of electric terminal, in case of standard equipment power consumption of the bathtub amounts to 10 kW and requires electric cable of 3x4mm ,... - Page 5 3. Transport of a bathtub. It is recommended that the transport of bathtub be conducted in horizontal position in the original packing of the producer on a wooden panel. It is possible to transport the bathtub in vertical position after covers are removed. After taking from the pallet, the bathtub shall be transported by a forklift. It is not allowed to handle cable and other elements of massage system during transportation.
- Page 6 Connection to a power source: Feeder cable must be connected to a permanent installation of IP X5 security level. Fitting of plug is not allowed. Permanent installation located in the wall may be connected through the junction box. IP X5 junction box shall be located beyond the body of the bathtub and above 20cm from the floor.
-
Page 7: Operation
II. Operation 1. Bathtub connections diagram - Massage nozzles section 9 draining valves A Filtration pump B Hydro massage pump C Air blower- air massage D 2,7kW heater E Electronics F Temperature sensor G Flow sensor REMARK! After use please uninstall head supports! - Page 8 2. Bathtub filling. The bathtub does not require a permanent connection to water supply. The bathtub is filled with water through elastic hose. The bathtub shall be filled until the water reaches the level of half a skimmer. Only then will it be possible to switch on devices. In case the water level is lower filtration and water heating will not operate as well.
- Page 9 4. Hydro massage. System of water massage (hydro massage) consists of the following elements: - A set of 19 water-air nozzles, providing water or a water air blend to the bathtub, - 1 hydro massage pumps ensuring circulation of water - 2 air flow regulators providing air to hydro massage nozzles installed on the edge of the bathtub regulating intensity of the massage, -1 water suction devices...
- Page 10 Each of those two regulators is responsible for controlling nozzle sections. Zones of air regulators control . Nozzles SPA DAISY has been equipped with a set on nozzles: Nozzles Quantity Large rotation super nozzle Large feet nozzle Big rotation nozzle with the possibility...
- Page 11 Regulation of intensity of water flow through the big nozzle 1. Cover plate 2. Rotational element of the nozzle In order to regulate water flow element nr 1 (nozzle cover plate) shall be turned according to the direction of arrows. 5.
-
Page 12: Reset Switch
6. Operation of other devices of the bathtub. Setting of the sensor of the water level. We fill the bathtub until the moment when the water level reaches the level of the installed sensor. With the screwdriver we unscrew very slowly as presented in the picture until the diode lights up. - Page 13 Thermal lid. DAISY bathtub is equipped with a thermal lid. We shall always remember to cover the bathtub in case we do not intend to use for a longer period of time. The thermal lid prevents the water from cooling or evaporating which is extremely important in closed rooms. The thermal lid helps to maintain the water clean.
- Page 14 8. Desinfection Before the first use and once a week pH and content of free fluorine shall be checked. The examination shall be conducted with the use of attached POOLTESTER, in the following way: 1. Remove the lid of POOLTESTER, rinse the boxes with examined water. 2.
- Page 15 Potential breathing disorders (especially in case of closed rooms), Ø Possibility of irritation of conjunctivas and mucous membranes. Ø Agents for water preservation attached to DAISY bathtub a)ChlorShock b) pH minus Make sure water pH is appropriate before chlorination. In order to achieve appropriate pH value „pH minus” shall be implemented. In order to lower the pH value by 0.1 about 5 g of the agent shall be implemented.
