Summary of Contents for MadMapper miniMAD

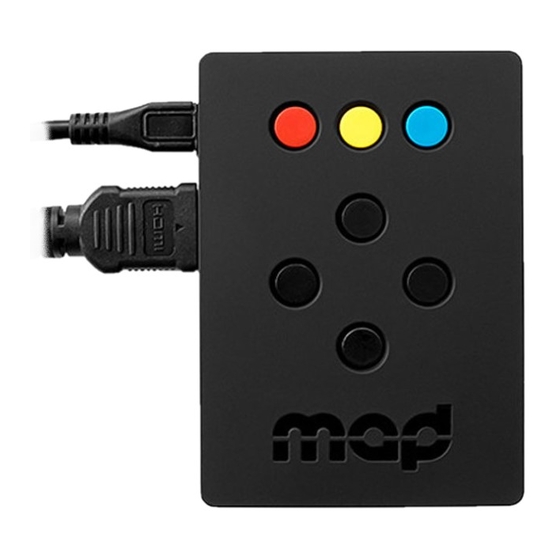

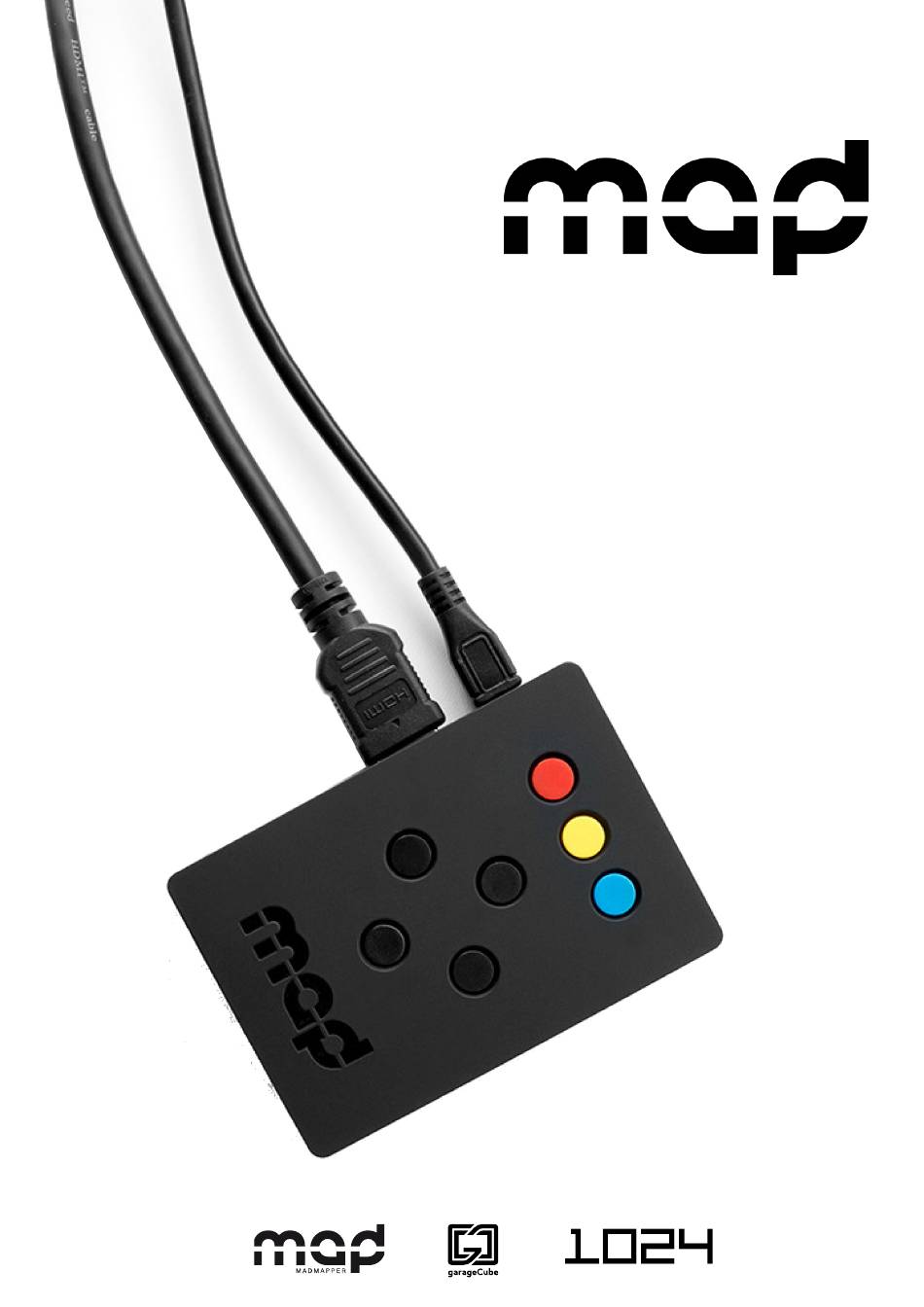

- Page 1 The hardware companion of MadMapper User guide...
- Page 2 Video to play a video-mapping, or with miniMAD Light to play recorded DMX sequences. WARNING : miniMAD Video and miniMAD Light cannot be installed at the same time on the same miniMAD. www.madmapper.com...
- Page 3 VIDEO FEATURES Surfaces Media Projector Export Network synchronization CONTROLS Buttons Keyboard Network synchronization miniMAD LIGHT FEATURES Record Export Audio CONTROLS Buttons Keyboard Micromodul8 INFORMATION SPECIFICATIONS Technical Specifications In the box Activate and update...
- Page 4 - Mask Other surface types (Circle, Line, 3D surface) and FX are not supported yet. MEDIA miniMAD Video supports a single media at a time on every surfaces. Every image files supported by MadMapper will be exported to miniMAD. During the export process, movie files will be...
- Page 5 Eject the SD-card from the miniMAD and insert it in your computer. If necessary, update miniMAD as advised before exporting. Then, select the projector you want to export to miniMAD, adjust the output resolution, the audio output, the playback options, optionally unselect and reorder your medias.
- Page 6 Create a MadMapper project using the video-wall template, import your pictures and videos, and export the different projectors to as many synchronized miniMADs. The setup couldn’t be easier: Just connect all your miniMAD with an ethernet cable to a network switch, and wait until they automatically synchronize.
- Page 7 VIDEO PLAYBACK / CONTROLS miniMAD VIDEO CONTROLS BUTTONS MEDIA MODE BUTTONS change playback mode change playback mode Blue + Yellow display info Right Right next media next media Left Left previous media previous media Down Down pause media Blue + Yellow...
- Page 8 CONTROLS KEYBOARD As an alternative to the miniMAD’s buttons, you can use any USB keyboard as a remote. Using a wireless USB keyboard may be particularly interesting when the device is not easily accessible. Attach the keyboard to one of the four USB ports prior to powering it on and follow the following...
- Page 9 Therefore miniMAD is not the best solution for setups using edge-to-edge screens, side-by-side or soft- edge projections, using content that would highlight this delay. For such a setup, we advice you to use directly MadMapper on a computer with several video-outputs.
- Page 10 DMX output. Click “Record” again to stop the recording. When recorded, adjust the in & out frames by using the dedicated Loop controls. Then, check and reorder the sequences you want to export to the miniMAD and press Play to get a preview within MadMapper.
- Page 11 FEATURES EXPORT In the MadLight Recorder dialog, check the sequences you want to export then click Export to miniMAD to open the export dialog. By default, miniMAD will use the same DMX interface as MadMapper, but you can select a different one using miniMAD DMX Output.
- Page 12 LIGHT CONTROLS BUTTONS Yellow + Up/Down control Luminosity change playback mode Yellow +Red toggle Blackout Right next sequence Left previous sequence KEYBOARD Backspace restart sequence Numbers direct access to the toggle blackout 10 first sequences increase luminosity Space Left...
- Page 13 - /set_sequence_by_index + integer OSC value: set the current sequence by index - /set_master_luminosity + float OSC value: set the master luminosity Note that all indices start at 0. The miniMAD declares itself as “miniMAD OSC” using the Bonjour discovery protocol.
- Page 14 • 2 Amps power supply • Size 9x10x3 cm IN THE BOX • 1 x 16 GB microSD-card class 10 installed with miniMAD software and an SD-card adapter • 1 x power supply 100-240V including EU, AUS, UK and US plug •...
- Page 15 INFORMATION UPDATE YOUR miniMAD SD-CARD First, you need to download the latest image of the miniMAD system (8 and 16GB versions are available) and the Etcher flashing tool. Note that you don’t need to decompress the downloaded zipped images. All those files are available to download on MadMapper Yourspace page.
