Quick Links

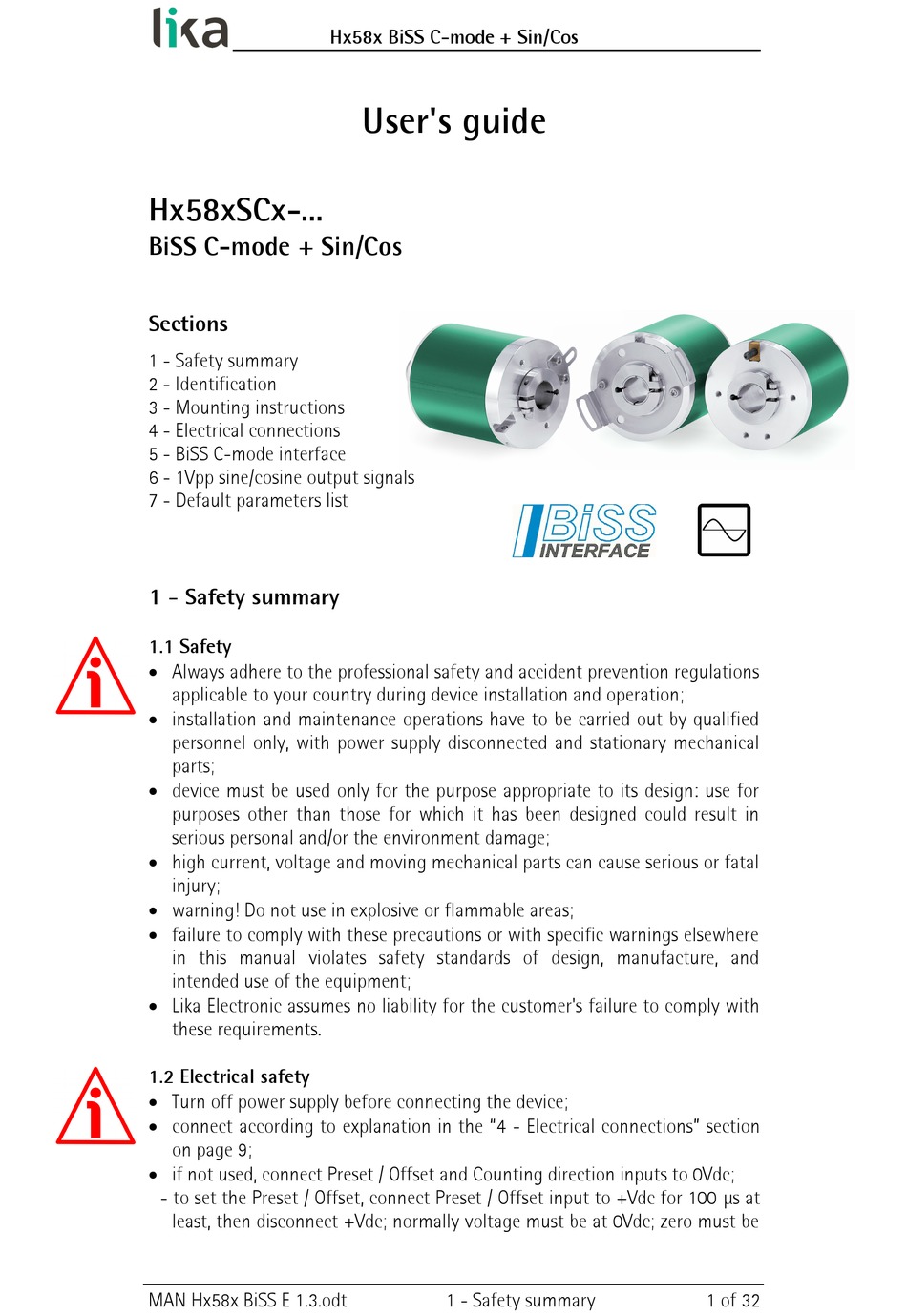

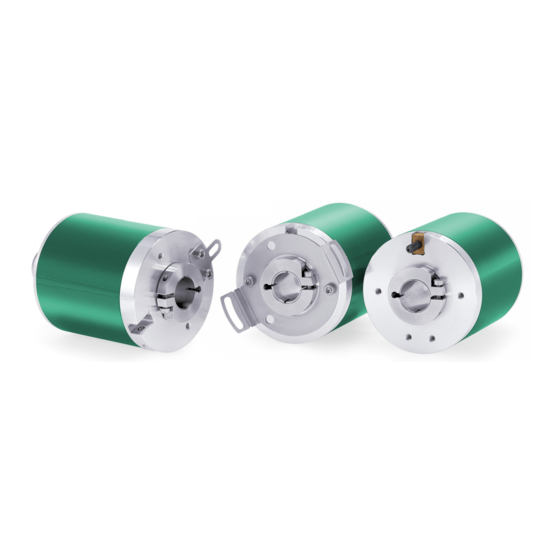

Hx58xSCx-...
BiSS C-mode + Sin/Cos
Sections
1 - Safety summary
2 - Identification
3 - Mounting instructions
4 - Electrical connections
5 - BiSS C-mode interface
6 - 1Vpp sine/cosine output signals
7 - Default parameters list
1 - Safety summary
1.1 Safety
 Always adhere to the professional safety and accident prevention regulations
applicable to your country during device installation and operation;
 installation and maintenance operations have to be carried out by qualified
personnel only, with power supply disconnected and stationary mechanical
parts;
 device must be used only for the purpose appropriate to its design: use for
purposes other than those for which it has been designed could result in
serious personal and/or the environment damage;
 high current, voltage and moving mechanical parts can cause serious or fatal
injury;
 warning! Do not use in explosive or flammable areas;
 failure to comply with these precautions or with specific warnings elsewhere
in this manual violates safety standards of design, manufacture, and
intended use of the equipment;
 Lika Electronic assumes no liability for the customer's failure to comply with
these requirements.
1.2 Electrical safety
 Turn off power supply before connecting the device;
 connect according to explanation in the "4 - Electrical connections" section
on page 9;
 if not used, connect Preset / Offset and Counting direction inputs to 0Vdc;
- to set the Preset / Offset, connect Preset / Offset input to +Vdc for 100 µs at
least, then disconnect +Vdc; normally voltage must be at 0Vdc; zero must be
MAN Hx58x BiSS E 1.3.odt
Hx58x BiSS C-mode + Sin/Cos
User's guide
1 - Safety summary
1 of 32

Advertisement

loading
Need help?

Need help?

Do you have a question about the HS58 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lika HS58

  • Page 1  failure to comply with these precautions or with specific warnings elsewhere in this manual violates safety standards of design, manufacture, and intended use of the equipment;  Lika Electronic assumes no liability for the customer's failure to comply with these requirements. 1.2 Electrical safety ...
  • Page 2 Hx58x BiSS C-mode + Sin/Cos set after Counting direction; we suggest setting the zero when the encoder shaft is not running; - Counting direction: CW increasing count (viewed from fixing plate side): connect to 0Vdc; CCW increasing count: connect to +Vdc; ...
  • Page 3 Information is listed in the delivery document too. Please always quote the order code and the serial number when reaching Lika Electronic for purchasing spare parts or needing assistance. For any information on the technical characteristics of the product refer to the technical catalog.
  • Page 4: Mounting Instructions

    For any information on the mechanical data and the electrical characteristics of the encoder please refer to the technical catalog. 3.1 Solid shaft encoders HS58, HS58S, HM58, HM58S • Mount the flexible coupling 1 on the encoder shaft; • fix the encoder to the flange 2 (or to the mounting bell) by means of screws •...
  • Page 5 Hx58x BiSS C-mode + Sin/Cos 3.1.2 Installation using fixing clamps (code LKM-386) a [mm] b [mm] c [mm] d [mm] HS58, HM58 50 F7 HS58S, HM58S 36 H7 3.1.3 Installation using a mounting bell (code PF4256) NOTE In order to guarantee reliability over time of the encoder mechanical parts, we recommend a flexible coupling to be installed between the encoder and the motor shaft.
  • Page 6 • insert the anti-rotation pin 1 into the slot on the flange of the encoder; this secures it in place by grub screw 2, preset at Lika; • fix the collar 3 to the encoder shaft (apply threadlocker to screw 3).
  • Page 7 Hx58x BiSS C-mode + Sin/Cos 3.2.2 HSC59, HMC59 • Mount the encoder on the motor shaft using the reducing sleeve 8 (if supplied). Avoid forcing the encoder shaft; • fasten the fixing plate 4 to the rear of the motor using two M3 cylindrical head screws 5;...
  • Page 8 Hx58x BiSS C-mode + Sin/Cos 3.2.3 HSC60, HMC60 • Fix the tempered pin 6 to the rear of the motor; • mount the encoder on the motor shaft using the reducing sleeve 8 (if supplied). Avoid forcing the encoder shaft; •...
  • Page 9: Electrical Connections

    Hx58x BiSS C-mode + Sin/Cos 4 - Electrical connections WARNING Power supply must be turned off before performing any electrical connection! WARNING If wires of unused signals come in contact, irreparable damage could be caused to the device. Please insulate them singularly. M23 12 pin M12 12 pin T12 cable...
  • Page 10 4.2 M12 12-pin connector M12 12-pin connector Male frontal side 4.3 T12 cable specifications Model: LIKA HI-FLEX twisted encoder cable type T12 Wires: 4 x 0.25 mm + 4 x 2 x 0.14 mm twisted pairs (24/26 AWG) Jacket: Matt Polyurethane (TPU) halogen free, oil, hydrolysis, abrasion resistant Shield: tinned copper braid, coverage ...
  • Page 11 Hx58x BiSS C-mode + Sin/Cos WARNING The counting direction can be set also via BiSS interface. The parameter Code sequence in the Configuration register allows the operator to choose the options CW (clockwise direction) and CCW (counter-clockwise direction). When the counting direction is set to CW (default option) -Code sequence = CW-, if the Counting direction input has LOW logic level (0Vdc) the encoder will provide the increasing count when the encoder is turning clockwise (and the decreasing count when the encoder is turning counter-clockwise);...
  • Page 12 Hx58x BiSS C-mode + Sin/Cos hardware function is disabled. Furthermore it holds two different functions depending on the value of the parameter Set preset / offset in the Configuration register whether it is set to PRESET or OFFSET. In the first case (Set preset / offset = PRESET) the input is used to set the preset (Preset / Offset...
  • Page 13 5.1 XML file The product is supplied with an XML file idbiss4C69.xml (it can be downloaded from Lika's web site). Install the XML file on the BiSS Master device. 5.2 Communication The BiSS C-mode protocol uses two types of data transmission protocols: ...
  • Page 14 Hx58x BiSS C-mode + Sin/Cos 5.3 Single Cycle Data Hsx58x and HM58x have different SCD structure. 5.3.1 SCD structure for Hsx58x (singleturn encoder) SCD (32 bits) consists of the following elements: position value (24 bits), 1 error bit (nE), 1 warning bit (nW) and CRC checking (6 bits). bits 31 …...
  • Page 15 Hx58x BiSS C-mode + Sin/Cos 5.3.2 SCD structure for HMx58x (multiturn encoder) SCD (38 bits) consists of the following elements: position value (32 bits) and CRC checking (6 bits). bits 37 … 6 5 … 0 function position Position (32 bits) It is the process data transmitted from the Slave to the Master.
  • Page 16 Hx58x BiSS C-mode + Sin/Cos RW (2 bits) RW = “01”: when you need to write in the register. RW = “10”: when you need to read in the register. It is 2-bit long. DATA (8 bit) When you need to write in a register (DATA = “01”), it allows to enter the value to be written in the register (transmitted from the Master to the Slave).
  • Page 17 Hx58x BiSS C-mode + Sin/Cos 5.5 Used registers Register (hex) Function Profile ID 42 and 43 44 … 47 Serial number Command Configuration Counts per revolution 4B … 4D 4E and 4F Number of revolutions Preset / Offset 50 … 53 Device type N°...
  • Page 18 Load and save default parameters: default parameters are set at the factory by Lika Electronic engineers to allow the operator to run the device for standard operation in a safe mode. As soon as the command is sent the default parameters are uploaded and activated.
  • Page 19 Hx58x BiSS C-mode + Sin/Cos Configuration [49, rw] Function Bit = 0 Bit = 1 Not used Preset Set preset / offset Offset Enable preset / offset Enable Disable Not used Not used Output code Gray Binary Code sequence Not used Set preset / offset This parameter is available only if the parameter Enable preset / offset is set to ENABLE.
  • Page 20 Hx58x BiSS C-mode + Sin/Cos Code sequence It allows to set whether the position information output by the encoder increases when the shaft rotates clockwise or counter-clockwise. Clockwise and counter-clockwise rotations are viewed from the shaft side. Please note that the counting direction affects the absolute position information, not the sine/cosine signals.
  • Page 21 Hx58x BiSS C-mode + Sin/Cos Number of revolutions [4E and 4F, rw] These registers set the number of revolutions (multiturn resolution). Possible values are less than or equal to the number of physical revolutions. We suggest always setting a value which is a power of 2 (1, 2, 4, …2048, 4096, …) in order to prevent the encoder from working within the limits of the so-called “red zone”...
  • Page 22 Hx58x BiSS C-mode + Sin/Cos Preset / Offset [50 … 53, rw] This function is available only if the parameter Enable preset / offset in the Configuration register is set to ENABLE. Furthermore it has a double function depending on whether the parameter Set preset / offset in the Configuration register is set to PRESET or OFFSET.
  • Page 23 Hx58x BiSS C-mode + Sin/Cos Device type [55, ro] It describes the type of device. Default = 03h: rotary singleturn encoder BiSS + Sin/Cos (HSx58xSCx-...) Default = 04h: rotary multiturn encoder BiSS + Sin/Cos (HMx58xSCx-...) N° of bits used for singleturn [56, ro] This register contains the number of bits used for the singleturn resolution Counts per revolution...
  • Page 24 Hx58x BiSS C-mode + Sin/Cos Manufacturer ID [7E and 7F, ro] These registers contain the Manufacturer ID. Reg. ASCII Li = Lika Electronic. 5.6 Application note Data transmission: Parameter Value Clock Frequency Min 200 KHz, max 10 MHz Self-adaptable to clock, BiSS Timeout max 10 µs...
  • Page 25 Hx58x BiSS C-mode + Sin/Cos Function DATA Tx Preset / writing the Offset register Save and activate Preset / Offset 5.8 Red zone Most encoders suffer the problem of the so-called “red zone”. This problem occurs when the overall resolution (i.e. number of information per revolution * number of revolutions) is not a power of 2.
  • Page 26 Hx58x BiSS C-mode + Sin/Cos Set values:  Counts per revolution = 65,536 = 2  Number of revolutions = 6,748 = it is NOT a power of 2  Overall set resolution = 442 236 928 = it is NOT a power of 2 This can be proved easily: Overall physical resolution 1 073 741 824...
  • Page 27 Hx58x BiSS C-mode + Sin/Cos 6 - 1Vpp sine/cosine output signals A (COSINE) and B (SINE) signals are to be intended with CW rotation as viewed in the Figure in the “4.6 Counting direction input” section on page 10. The encoder provides 2,048 sinusoidal waves per mechanical revolution with amplitude 1Vpp.
  • Page 28 Hx58x BiSS C-mode + Sin/Cos = 2.5V ± 0.5V = 1Vpp * Av Av = R2 / R1 MAN Hx58x BiSS E 1.3.odt 6 - 1Vpp sine/cosine output signals 28 of 32...
  • Page 29: Default Parameters List

    Hx58x BiSS C-mode + Sin/Cos 7 - Default parameters list Parameters list Default value * Command Configuration Bit 0 not used Bit 1 Set preset / offset 0 = Preset Bit 2 Enable preset / offset 0 = Enable Bit 3 not used Bit 4 not used Bit 5 Output code 1 = Binary...
  • Page 30 This page intentionally left blank...
  • Page 31 This page intentionally left blank...
  • Page 32 Ce dispositif doit être alimenté par un circuit de Classe 2 ou à très basse tension ou bien en appliquant une tension maxi de 30Vcc. Voir le code de commande pour la tension d'alimentation. Lika Electronic Via S. Lorenzo, 25 • 36010 Carrè (VI) •...
