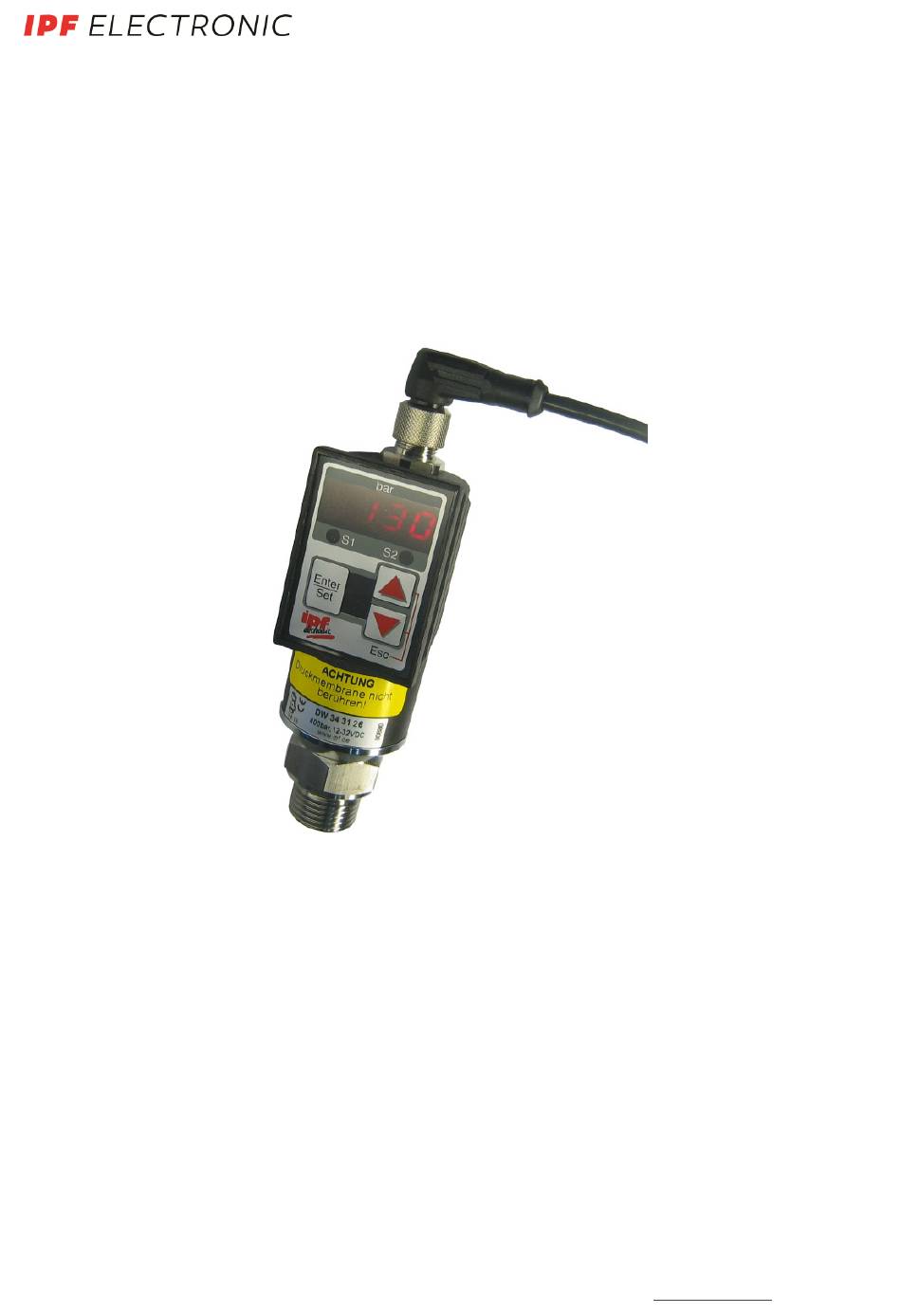

- Page 1 MANUAL • Subject to alteration! Version: September 2016 DW34312x pressure sensor ipf electronic gmbh • Rosmarter Allee 14 • 58762 Altena │ Tel +49 2351 9365-0 • Fax +49 2351 9365-19 │ info@ipf-electronic.com • www.ipf-electronic.com...
-
Page 2: Table Of Contents
16 factory settings / technical data page 17 dimensional drawings / list of articles page 18 ipf electronic gmbh • Rosmarter Allee 14 • 58762 Altena │ Tel +49 2351 9365-0 • Fax +49 2351 9365-19 │ info@ipf-electronic.com • www.ipf-electronic.com... -
Page 3: Safety Instructions
The membrane can be damaged irreparably! Never use these articles in applications where the safety of a person depends on their functionality! ipf electronic gmbh • Rosmarter Allee 14 • 58762 Altena │ Tel +49 2351 9365-0 • Fax +49 2351 9365-19 │... -
Page 4: Controls And Indicating Elements
• Rosmarter Allee 14 • 58762 Altena │ Tel +49 2351 9365-0 • Fax +49 2351 9365-19 │... -
Page 5: Description Of The Operating Elements
Pressing the button continuously, the value increases or decreases in „fast-forward“ mode. Pushing the button → the value changes step by step. ipf electronic gmbh • Rosmarter Allee 14 • 58762 Altena │ Tel +49 2351 9365-0 • Fax +49 2351 9365-19 │... -
Page 6: Menu / Overview
For cancelling the key lock please press both arrow keys for at least 5 seconds again. menu / overview 1. level ipf electronic gmbh • Rosmarter Allee 14 • 58762 Altena │ Tel +49 2351 9365-0 • Fax +49 2351 9365-19 │ info@ipf-electronic.com • www.ipf-electronic.com... - Page 7 MANUAL • Subject to alteration! Version: September 2016 2. level ipf electronic gmbh • Rosmarter Allee 14 • 58762 Altena Tel +49 2351 9365-0 • Fax +49 2351 9365-19 info@ipf-electronic.com • www.ipf-electronic.com │ │...
-
Page 8: Operation Modes Of The Switching Outputs
40bar). If SP.1 will be changed, rP.1 remains the same. The minimum range between SP1 and rSP.1 is 1% of the maximum pressure. ipf electronic gmbh • Rosmarter Allee 14 • 58762 Altena │ Tel +49 2351 9365-0 • Fax +49 2351 9365-19 │... -
Page 9: Switch-Point With Hysteresis
20bar). If SP.1 will be changed, the hysteresis HYS1 remains the same, that is the release position is (SP.1 – 20)bar. ipf electronic gmbh • Rosmarter Allee 14 • 58762 Altena │ Tel +49 2351 9365-0 • Fax +49 2351 9365-19 │... -
Page 10: Window Function With Hysteresis
MANUAL • Subject to alteration! Version: September 2016 ipf electronic gmbh • Rosmarter Allee 14 • 58762 Altena │ Tel +49 2351 9365-0 • Fax +49 2351 9365-19 │ info@ipf-electronic.com • www.ipf-electronic.com... -
Page 11: Operating Modes
Pressing the Enter/Set button safes the adjusted value, the display blinks three times. The unit now operates with the „new adjusted“ value. Returning to the RUN-Mode: Press the ESC button several times. ipf electronic gmbh • Rosmarter Allee 14 • 58762 Altena │ Tel +49 2351 9365-0 • Fax +49 2351 9365-19 │... -
Page 12: Programming
Press the Enter/Set button at least for 5sec to reset the system. Thereafter the unit returns into the RUN Mode automatically. ipf electronic gmbh • Rosmarter Allee 14 • 58762 Altena │ Tel +49 2351 9365-0 • Fax +49 2351 9365-19 │... - Page 13 0u5 analog signal 0-5V 10u0 analog signal 10-0V 5u0 analog signal 5-0V oFF.A analog output off ipf electronic gmbh • Rosmarter Allee 14 • 58762 Altena │ Tel +49 2351 9365-0 • Fax +49 2351 9365-19 │ info@ipf-electronic.com • www.ipf-electronic.com...
- Page 14 Temporary display of peak values Rd. Ph rotate display + peak hold standard display ipf electronic gmbh • Rosmarter Allee 14 • 58762 Altena │ Tel +49 2351 9365-0 • Fax +49 2351 9365-19 │ info@ipf-electronic.com • www.ipf-electronic.com...
-
Page 15: Mounting And Electrical Connection
Disconnect power before connecting the unit as follows: NOTE: Use a shielded cable socket (e.g. VK205A21), in order to avoid interfer-ences. ipf electronic gmbh • Rosmarter Allee 14 • 58762 Altena │ Tel +49 2351 9365-0 • Fax +49 2351 9365-19 │... -
Page 16: Initial Operation / Operation
* the error signal of the analog output appears only, if in Ou2 an analog signal (4...20mA or 20...4mA) was set. The error signal (< 3.6mA or >22mA) can be set in menu item FOuA. ipf electronic gmbh • Rosmarter Allee 14 • 58762 Altena │ Tel +49 2351 9365-0 • Fax +49 2351 9365-19 │... -
Page 17: Factory Settings / Technical Data
9600 Baud, via opto-adapter on USB-Port optical interface 9600 Baud, via optical adapter at USB-port ipf electronic gmbh • Rosmarter Allee 14 • 58762 Altena │ Tel +49 2351 9365-0 • Fax +49 2351 9365-19 │ info@ipf-electronic.com • www.ipf-electronic.com... -
Page 18: Dimensional Drawings / List Of Articles
AD000011 accessory optical interface connection USB, software 1.5m cable Other pressure ranges and versions on request. ipf electronic gmbh • Rosmarter Allee 14 • 58762 Altena │ Tel +49 2351 9365-0 • Fax +49 2351 9365-19 │ info@ipf-electronic.com • www.ipf-electronic.com...
