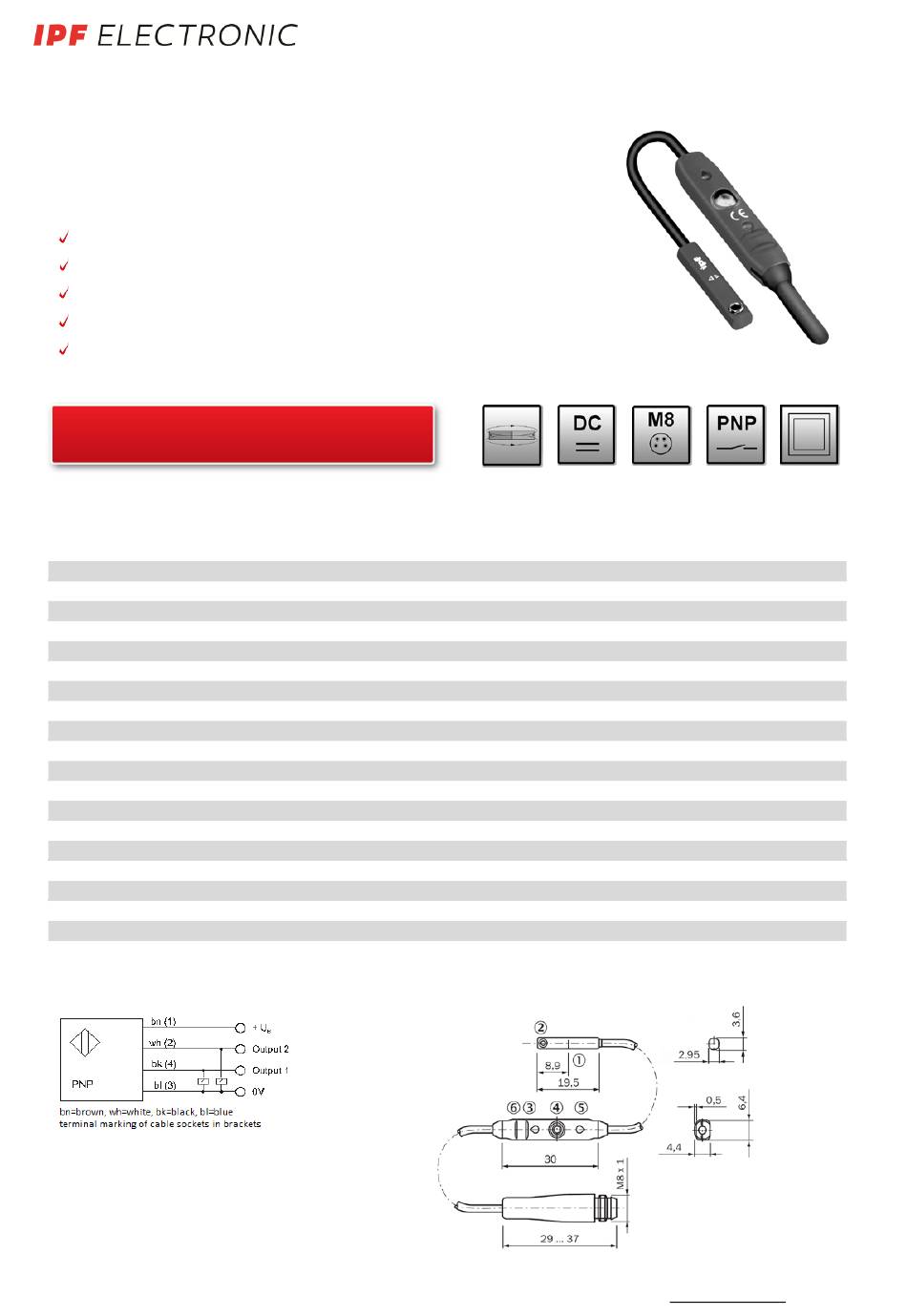

ipf MZR40787 Manual

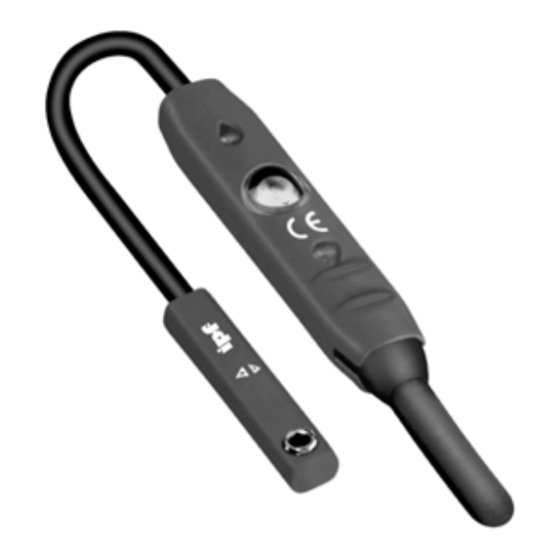

MZR40787
C-groove
detection range 0 to 50mm
insertable from above
plastic housing
LED-display
short-circuit and reverse polarity protection
degree of protection IP67
wear-free cylinder sensor
2 teachable switching points

TECHNICAL DATA

detection range
output signal
operating voltage
residual ripple
current consumption (w/o load)
output current (max. load)
voltage drop (max. load)
hysteresis
repeatability
display (signal)
short-circuit protection
reverse polarity protection
material (housing)
dimensions
temperature (operating)
degree of protection (EN 60529)
shock and vibration resistance
EMC resistance
connection
connection accessories
pin configuration
ipf electronic gmbh • Rosmarter Allee 14 • 58762 Altena
≤ 0.1mT
30G, 11ms / 10 ... 55Hz, 1mm
M8-cable connector 0.5m, 4-pin, rotatable thread
dimensional drawing
Tel +49 2351 9365-0 • Fax +49 2351 9365-19
│
MANUAL • Subject to alteration! Version: July 2015
0 ... 50mm
2 x pnp
12 ... 30V DC
≤ 10%
≤ 15mA
≤ 100mA (2 x 50mA)
≤ 2.2V DC
typ. 4mm
(if U and T constant)
B A
2 x LED yellow
+
+
plastic
3.6 x 2.95 x 19.5mm
-20 ... +75°C
IP67
acc. to EN 60947-5-2
e.g. VK200375
info@ipf-electronic.com • www.ipf-electronic.com
│
1: centre of sensor element 2:
fixing screw
3: LED 2
4: teach button
5: LED 1
6: fixing for cable straps
1
