SPG 1084 Installation manual

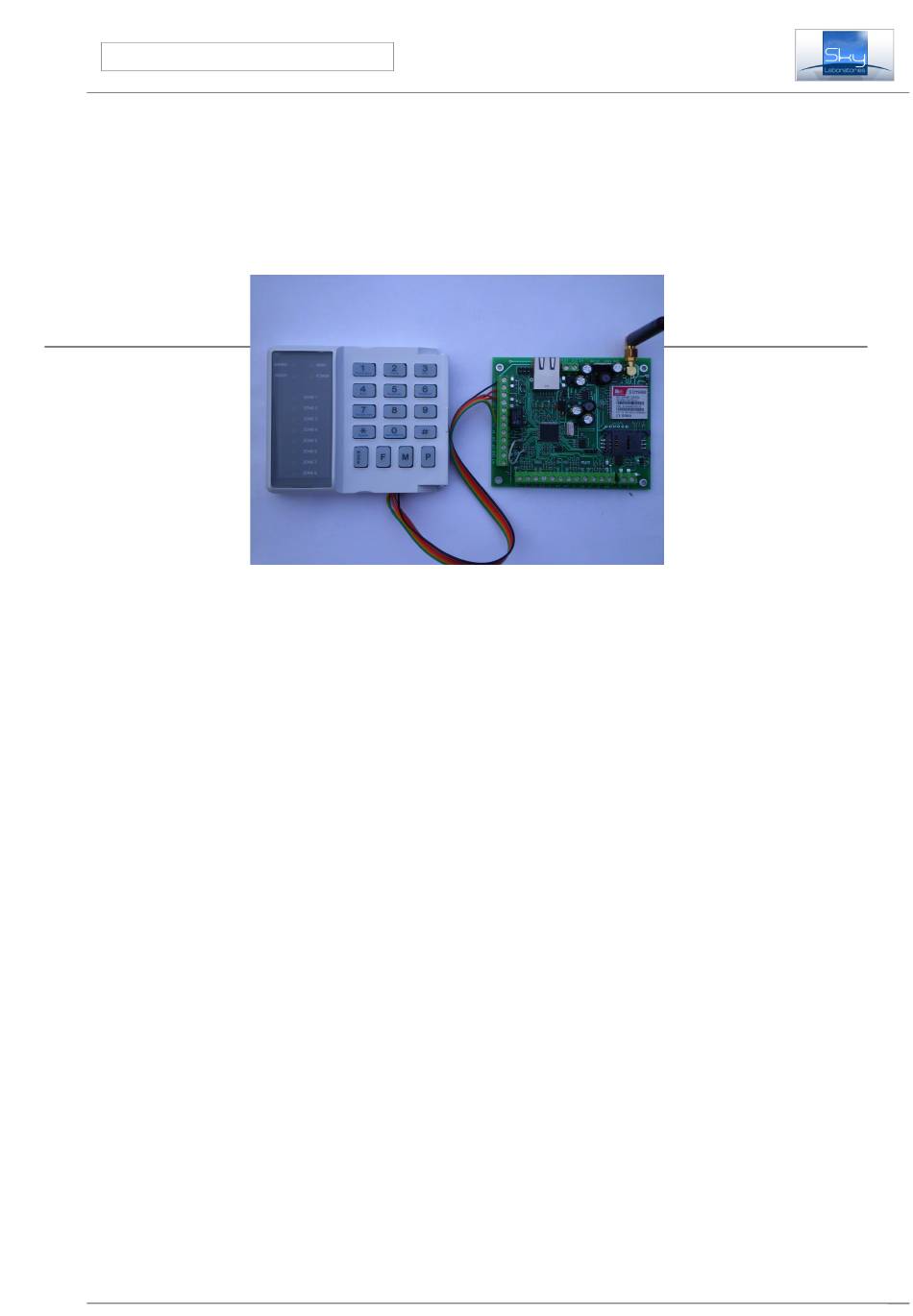

Multi functional TCIP/GPRS Security control panel
The security control panel takes convetional security sensors like PIR motion detector, magnetic contacts, glassbreak
detectors and it communicates via SIA IP DC9 protocol either in 128 bit encrypted or not encrypted format. The SPG 1084
comes with 8 onboard zones and 1 form C relay output and 3open collector output.
SPG 1084 controls ethernet and GPRS channels and capable of sending e-mail and SMS messages.
•
SIA IP DC9 protocol (SIA TCP/UDP/Encrypted, Closed socket)
•
24 hour connection with the server (min.test signal interval is10 sec)
•
DHCP / Fix IP
•
Two server reporting as backup, DYN DNS server
•
Web user and installer interface for programming or control
•
Remote access through Ethernet network.
•
Firmware upgrade
•
8 programmable zone inputs/ 4 outputs
•
8 zone LED keypad for armig/disarming
•
Dallas iButton and keyswitch for arming and disarming
•
E-mail and SMS sending
•
SMS commanding
•
Microphone and loudspeaker output
•
RS485 for further option
SPG 1084
Features:
Advertisement
Table of Contents
Related Manuals for Sky Laboratories SPG 1084
Summary of Contents for Sky Laboratories SPG 1084
- Page 1 The security control panel takes convetional security sensors like PIR motion detector, magnetic contacts, glassbreak detectors and it communicates via SIA IP DC9 protocol either in 128 bit encrypted or not encrypted format. The SPG 1084 comes with 8 onboard zones and 1 form C relay output and 3open collector output.
-
Page 2: Other Connectors
1.2. Jumpers: Inputs: The inputs of SPG 1084 on board can be programmed and Factory reset jumpers will re set the following parameters: activated by NO, NC and 2K2 EOL. If 2K2 EOL is used than either short or open circuit will •... -
Page 3: Specification
Communication: 128 bit encrypted Factory setting: • Firmware CRC Network mode: Static IP After every re-start SPG 1084 controls the consystency of Factory IP-address: 192.168.254.253 Port : 8080 the program memory. It should display “OK” User name : Admin •... - Page 4 SPG 1084 Installation manual Factory debug information. • GPRS errors • MAC address Factory debug information. • SMS sending enabled MAC address can not ba changed.Its always fix. • Mode: Factory debug information. Network connection mode could be changed here •...
- Page 5 SPG 1084 Installation manual − SIA IP UD2700 The panel synchronize its internal clock to an available (UDP, not enrypted, Close-socket) public time server on the internet. − SIA IP encrypted TC2700 (TCP, enrypted, Close- soc.) Factory default is „pool.ntp.org”...
- Page 6 SPG 1084 Installation manual • Password: Factory Default : None Password is necessary to access the mail server. Factory Default Empty SMS: SMS global settings could be adjusted in this section. GPRS settings: Wireless GSM communication settings could be made here.
-
Page 7: Communication Rules
• SMS only: tIf you chose this option the SPG 1084 will not send any alarm reports to central station. Only user format SMS messages . User format sms message content is to be set at Alarm Function section of the programming. - Page 8 SPG 1084 Installation manual • Zone : The number of inputs. Z1...Z8 SMS Control: Enable: Remote Arming/Disarming, status request and output trigger is allowed by SMS Factory Default: Disabled • Reply on SMS command: • Zone Types: Enable: It will enable SPG1084 to send reply SMS to command SMS received before.
- Page 9 E-mail and SMS. Factory setting: all empty The Learn iButton key is to learn teach the i Button to the SPG 1084. The serial nr of the iButton will be put into the • ZA: next available free space.
- Page 10 SPG 1084 will be armed by this command module − Server control: will reply with “ARMED !” answer If SPG 1084 receives a SMS command either from SMS or directly form SPG 1084 programming web. DISARM SPG 1084 will be disarmed by this command module −...
-
Page 11: Keypad Functions
Setting the outputs the following way iButton reader will indicate status of the SPG 1084 module: System Ready : Green System Armed: Red Exit/Entry time: Orange The keypad is wired to the SPG 1084 as follows: keypad SPG 1084 + 12V Fire, Medical, Panic buttons By pressing the F, M P buttons will activate a central station communication. - Page 12 SPG 1084 Installation manual Contact ID codes used : 1400 Disarm (Open) 1401 Open by User by user 3400 Close 3401 Close by user 1454 Failed to close Burglary 24 Hour (Safe) Entry/Exit Follower zone alarm 24 Hour Non-Burglary Fire...
