SPG 84 Installation manual
Multifunctional security controlpanel in and output module
•
4 User remote access by Web interface (with SPG 1000)
•
8 User Ibutton for arming disarming.
•
8 EOL input residential security alarm panel or techical transmission
•
4 Programmable, remote controllable outputprogramozható
General use:
The panel can be used independently with a downloadable programming software or it can be used as fully functional security
panel with SPG 1000 multi path communication module. SPG 84 designed to any 8 zone security installation where simplicity
required, arming and disarming is sufficient with Dallas iButton devices.
SPG 84
Features:
1.
Advertisement
Table of Contents
Related Manuals for Sky Laboratories SPG 84
Summary of Contents for Sky Laboratories SPG 84
- Page 1 The panel can be used independently with a downloadable programming software or it can be used as fully functional security panel with SPG 1000 multi path communication module. SPG 84 designed to any 8 zone security installation where simplicity required, arming and disarming is sufficient with Dallas iButton devices.
-

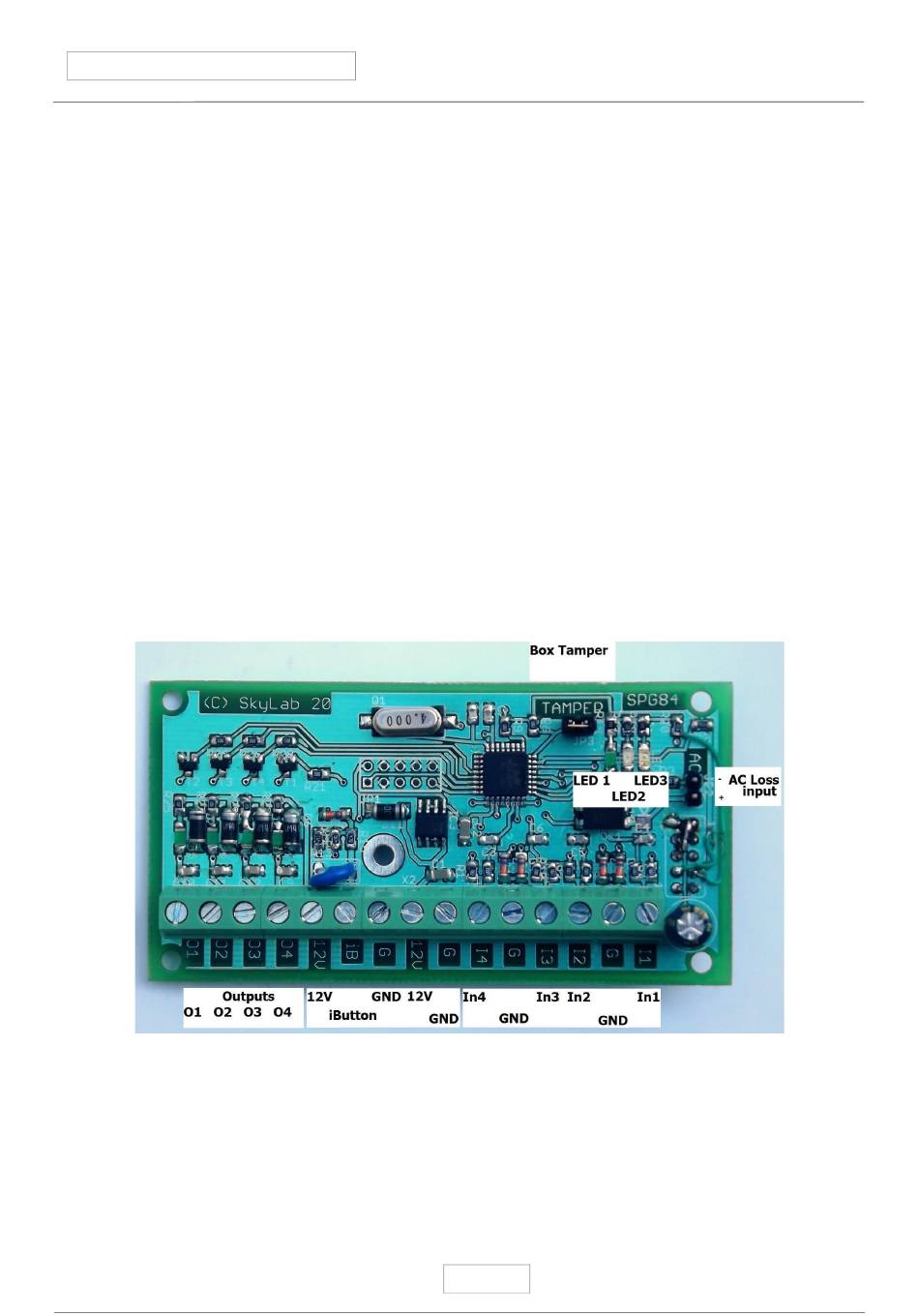

Page 2: Main Parts
WARNING ! The 12 VDC socket is to be used for both supply the SPG84 panel and to power external devices. If SPG84 is not connected to SPG 1000 than power supply must be connected to these terminals. If SPG 84 is connected to SPG 1000, than SPG 1000 will supply SPG 84 and its external devices. -
Page 3: Output Wiring
SPG 84 Installation manual Output wiring: 1.2. Max current load of any output is limited at 100mA Total load is 500mA. Output wiring: Outputs are with LED indicators showing current status. Warning! Overload outputs will void Warranty. Specification Power :... - Page 4 Factory Default: 0 sec • Bell time: Valid values: 0-255 sec Factory Default: 0 sec • AC Loss Delay time: The time SPG 84 will count until send AC loss report from actual AC loss. Valid values: 0-65000 sec Factory Default: 0 sec...
- Page 5 SPG 84 Installation manual Inputs The panel has 4 input , 8 zones with dual end of line resistors. Each zone type could be configured here. • Zone : The number of inputs. Z1...Z8 ZT is the enclusure tamper pinout. ZA is the AC loss pinout. (Attention ! Its an independent 3V DC input !) Shortcircuit the input (not the zone) will trigger alarm event from both zones.
- Page 6 This is the panel AC loss detection tamper pin. No other zonetype can be programmed to this zone input. Dallas Ibutton arming / disarming registration The SPG 84 can handle up to 8 different dallas ibuttons (type 1990) Each iButton authority level could be set. Dallas ID This is the hex code of the dallas iButton arming device you may read on the button.
- Page 7 Will follow the exit entry time status of the SPG . − Communication Fail: Will be activated if there is a communication failure between the SPG 1000 and the SPG 84 − Zone Follower: Will follow status of any zone selected −...
- Page 8 Warning: Only standard English characters could be used. SMS control: If the phone nr of the sender of the SMS message to the SPG 84 is registered at USERs you may control SPG 84 with the following commands : •...
- Page 9 SPG 84 Installation manual Application guide for wiring and programming for Dallas iButton reader indicators Setting the outputs the following way iButton reader will indicate status of the SPG 84 expander module: System Ready : Green System Armed: Red Exit/Entry time: Orange...
