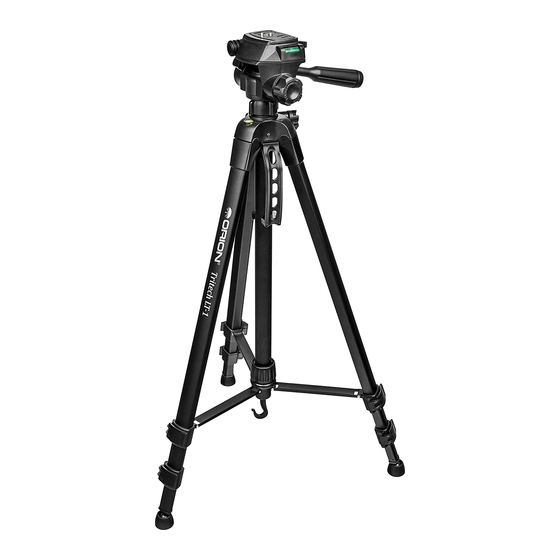

Orion® Tritech LT-1 Travel Tripod with
Congratulations on your purchase of a quality
Orion field tripod! This full-featured, compact alu-
minum tripod provides solid support for binoculars,
small telescopes, still cameras, and video cam-
eras. Designed for use either indoors or outdoors,
the Tritech LT-1 features a 6.6-lb. load capac-
ity; three-section aluminum legs with flip style leg
locks; a smooth, three-way pan head; geared
center column; leg brace assembly for greater sta-
bility; ballast hook; bubble levels on both the tripod
and pan head; and an integrated carrying handle
for easy portability on your visual or photographic
jaunts. And it comes with a rugged soft case with
shoulder strap! Please take a few minutes to re-
view the parts and features of the tripod before
first use.
Care and Cleaning
Clean with mild detergent and a soft cloth. Use a soft
brush and air blower to remove sand and dust from lock-
ing threads and sliding sections. This tripod does not
require regular application of lubricant. Dry and/or clean
the tripod after use in wet, sandy, or dusty conditions.
Not recommended for use in salt water. Do not use in
temperatures lower than -22°F (-30°C). Do not exceed
the recommended load capacity.
Providing Exceptional Consumer Optical Products Since 1975
All Rights Reserved. No part of this product instruction or any of its contents may be reproduced, copied, modified or adapted,
INSTRUCTION MANUAL
3-Way Pan Head
#40814
Copyright © 2018 Orion Telescopes & Binoculars
without the prior written consent of Orion Telescopes & Binoculars.
Carry
handle
Ballast
hook
Rubber
foot
The Tritech II Field Tripod with legs extended
Figure 1.
Customer Support:
www.OrionTelescopes.com/contactus
Corporate Offices:
89 Hangar Way, Watsonville CA 95076 - USA
3-way pan
head (See
Fig. 2)
Aluminum
leg
Leg brace
lock
Flip style leg
Leg brace
assembly
IN 615 Rev. B 03/17
lock
