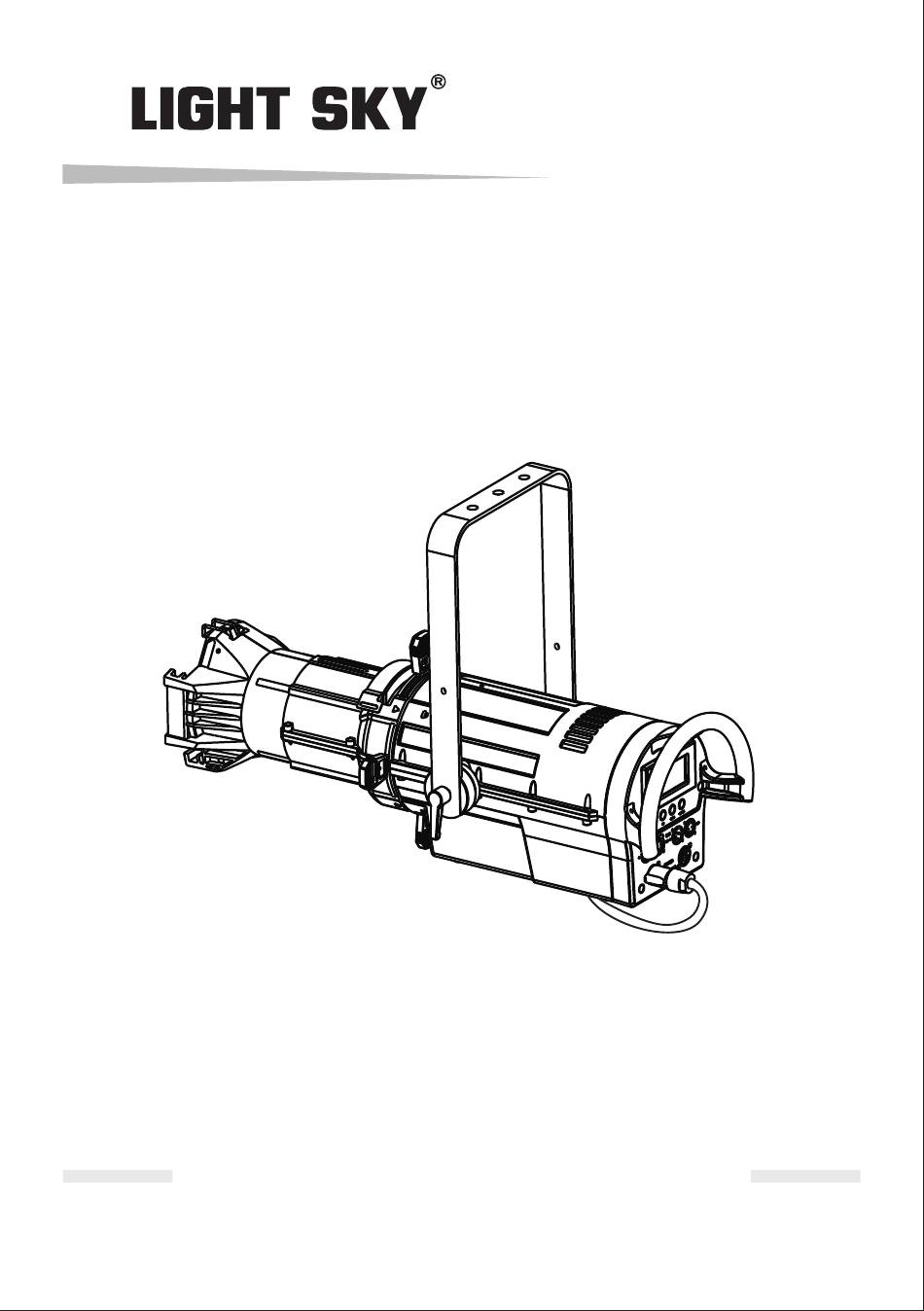

- Page 1 INSTRUCTION MANUAL □ LED Profile □ Please read these instruction manual carefully before use FLY DRAGON LIGHTING EQUIPMENT CO., LTD...
-
Page 2: Table Of Contents
INDEX 1.Safety information......................2 2.Skill specifications and Performance trait .............3 3.Photometric data......................4 4.Control panel......................6 5.Dimensional drawings....................7 6.Component name.......................7 7.Lens tube........................8 8.Install fixture.......................8 9.Mounting and installation..................9 10.Power supply and signal connection..............10 Menu setting......................12 12.Channel function....................17 Circuit connecting diagram ..................24 14.Troubeshooting......................25 15.Cleaning and Maintenances..................26 Duty exonerative and Copyright protection ............26 UNPACKING: Thank you for purchasing our company products. -
Page 3: Safety Information
SAFETY INSTRUCTIONS Notice: To guarantee proper and consistent operation, it is important to follow the guidelines in this manual. Our company will not accept responsibility for damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual. -
Page 4: Skill Specifications And Performance Trait
SKILL SPECIFICATIONS AND PERFORMANCE TRAIT ◎Voltage：AC100~240V 50/60Hz. ◎Power：250W. ◎LED brand：OSRAM ◎LED chip：3W*90PCS( 、Red o range Green mint 、 、 Green Blue Indigo 、 、 ◎LED power：200W ◎LED life：50000H. ◎CRI index : 91-97 ◎TLCI index :91-97 ◎Colour temperature:2800K-10000K ◎Lens degree：standard 19°；selective 26°、36°、50°、15-30°、25-50° ◎Strobe:1-30 times/ second . -
Page 5: Photometric Data
PHOTOMETRIC DATA ( 11) 980(91 ) 276 26 White C42:lens 36° 26( 2) 12(1) 91(8) 56( 5) 25(2) Orange 197(18) Lux(fc) 2 42 (22) 108(10) 850( 79) Light green 2 1( 2) 9(1) Green 70(7) 1 7(2) 8(1) Blue 60(6) 36°... - Page 6 (21) White 825(77) C34:lens 36° 89(8) 24(2) 11(1) Orange 180(17) 44(4) 21(2) Lux(fc) Light green 700(65) 187(17) 84(8) 59(5) Green 16(2) 7(1) 56(5) Blue 16(2) 7(1) 36° 5(16′5") 10(32′10") 15(49′3") Distance m(ft in) Diameter m(ft in) (10′5") (21′3") (25′2") White (31) (14) 1240(115)
-
Page 7: Control Panel
CONTROL PANEL Keypad DOWN ENTER MENU PUSH PUSH OUT IN 3/5 DMX POWER POWER OUT POWER IN... -
Page 8: Dimensional Drawings
DIMENSIONAL DRAWINGS COMPONENT NAME Yoke knob Accessor y retainer Yoke looking knob Lens tube Slicing... -
Page 9: Lens Tube
LENS TUBE Screw Step 1:Slide the lens into the shutter barrel. Step 2:Tighten the lens focus screw. INSTALL FIXTURE Low clearance position General use position... -
Page 10: Mounting And Installation
MOUNTING AND INSTALLATION Cautions: For added protection mount the fixtures in areas outside walking paths, seating areas, and away from areas were unauthorized personnel might reach the fixture. Before mounting the fixture to any surface, make sure that the installation area can hold a minimum point load of 10 times the device's weight. -
Page 11: Power Supply And Signal Connection
POWER SUPPLY AND SIGNAL CONNECTION 1. Power supply Use the professional plug to connect the projector and main power supply. Please pay attention to the voltage, frequency the same as the mentioned on the projector. Suggest each light has separately switched of the power supply so that could turn on or turn off each projector desultorily. - Page 12 Connecting to the control signal line (DMX) ◎ Please use the round 3 or 5-pin XLR plugs &sockets offered by menu facture to connect the first projector's output to the second projector' input and connect the second projector's output to the third projector's input.
-
Page 13: Menu Setting
MENU SETTING 1.After the power is switched on, the display screen displays LOGO 2.Button operation ● MENU：back Button ； ● UP：Page up or increase； ● DOWN：Page down or reduce； ● ENTER：OK button 3.Menu operation MENU DOWN ENTER DMX Address Address:001-512 Standard(11CH) 1CH Mode 2CH Mode... - Page 14 Status No Action Action Dimmer:0-100% 2800K 3000K CTO presets Settings 3200K 3500K 4000K 4500K 5000K 5500K 6000K 6500K 7000K 7500K 8000K 9000K 10000K...
- Page 15 Status No Action Action Dimmer:0-100% Settings Colour presets Red orange Orange Yellow orange Yellow Yellow green Green Colour Blue green Blue Blue purple Purple Red purple Standard Dim.Cur Incandescent Linear Quick...
- Page 16 Auto Fan mode Settings Slow Fast Boost Regulated Power Protected Language 语言 English 英文 Chinese 中文 Display BackLight Open Auto close(15S) Reversal Normal Rota.180 Backlight blink 1.Red 0-255 2.Red orange 0-255 3.Green mint 0-255 4.Green 0-255 5.Blue 0-255 Channel control 6.Indigo 0-255 Specific Channel would be displayed 7.CCT 0-255...
- Page 17 Total:****(h) LED hours LED:****(h) Temperature LED Board: ***c RDM UID 3888:******** Information Fan speed FAN:****RPM 1.Red 2.Red orange 3.Green mint 4.Green 5.Blue DMX live 6.Indigo 7.CCT 8.Colour Macro 9.Dimmer 10.Dimmer fine 11.Strobe Specific Channel would be displayed according to your choice. System version DIS Board: V*.** Error list...
-
Page 18: Channel Function
CHANNEL FUNCTION Standard(11CH) DMX VALUE CHANNEL FUNCTION 0-255 0-100 0-255 0-100 Red orange Green mint 0-255 0-100 0-255 0-100 Green Blue 0-255 0-100 Indigo 0-255 0-100 NO function 0-1.18 2800K 1.57-2.35 From 2800K to 3000K 7-21 2.75-8.24 3000K 22-24 8.63-9.41 From 3000K to 3200K 25-39 9.80-15.29... - Page 19 CHANNEL DMX VALUE FUNCTION 6500K 166-168 65.10-65.88 From 6500K to 7000K 169-183 66.27-71.76 7000K 184-186 72.16-72.94 From 7000K to 7500K 187-201 73.33-78.82 202-204 79.22-80.00 7500K 205-219 80.39-85.88 From 7500K to 8000K 8000K 220-222 86.27-87.06 From 8000K to 9000K 223-237 87.45-92.94 9000K 238-240 93.33-94.12...
- Page 20 1CH Mode CHANNEL DMX VALUE FUNCTION 0-255 0-100 Dimmer 2CH Mode CHANNEL DMX VALUE FUNCTION 0-255 0-100 Dimmer 0-255 0-100...
- Page 21 HSI(6CH)/HSI+7(13CH) CHANNEL DMX VALUE FUNCTION 0-255 0-100 0-255 0-100 Hue fine 0-255 0-100 Saturation 0-255 0-100 Dimmer Strobe NO function 0-3.53 Slow closing,fast opening,slow → fast 10-49 3.92-19.22 Fast closing,slow opening,slow → fast 50-89 19.61-34.90 Slow closing,slow open,slow → fast 90-119 35.29-46.67 →...
- Page 22 HSIC(7CH)/HSIC+7(14CH) CHANNEL DMX VALUE FUNCTION 0-255 0-100 0-255 0-100 Hue fine 0-255 0-100 Saturation 0-255 0-100 Dimmer Strobe 0-3.53 NO function Slow closing,fast opening,slow → fast 10-49 3.92-19.22 Fast closing,slow opening,slow → fast 50-89 19.61-34.90 Slow closing,slow open,slow → fast 90-119 35.29-46.67 →...
- Page 23 CHANNEL DMX VALUE FUNCTION 97-111 38.04-43.53 From 4000K to 4500K 112-114 43.92-44.71 4500K 115-129 45.10-50.59 From 4500K to 5000K 130-132 50.98-51.76 5000K From 5000K to 5500K 133-147 52.16-57.65 148-150 58.04-58.82 5500K 151-165 59.22-64.71 From 5500K to 6000K 6000K 166-168 65.10-65.88 From 6000K to 6500K 169-183 66.27-71.76...
- Page 24 Studio CHANNEL DMX VALUE FUNCTION 0-255 0-100 Dimmer 0-255 0-100 White Point 0-255 0-100 Tint Strobe NO function 0-3.53 Slow closing,fast opening,slow → fast 10-49 3.92-19.22 Fast closing,slow opening,slow → fast 50-89 19.61-34.90 Slow closing,slow open,slow → fast 90-119 35.29-46.67 →...
-
Page 25: Circuit Connecting Diagram
CIRCUIT CONNECTING DIAGRAM Switched power supply Power adapter AC100-240V 50/60Hz Input Power board 48V J7 Display board LED Drive board Radiation board... -
Page 26: Troubeshooting
TROUBLE DISPOSE It is recommended some solution for some normal trouble shooting. Any inextricability problems should always be handling by the professional person. Disconnect the power supply before maintenance the light. ●LCD off： 1.Please check if install the suitable voltage 2.Please check whether the led will reach the end of their life can explode;... -
Page 27: Cleaning And Maintenances
CLEANING AND MAINTENANCE ■ 1.In order to ensure the projector could work normally. It should be kept clean always .The lens should also be regularly cleaned to maintain an optimum light output. Do not use any type of solvent on lens. It will damage the projector. - Page 28 Tel:020-61828288 Fax:020-61828188 Web:www.lightsky.com.cn www.lightsky-china.com E-Mail:flydragon@lightsky.com.cn lightsky08@vip.163.com flydragon@lightsky-china.com lightsky01@vip.163.com lightsky-china@vip.163.com flydragon@vip.163.com 13829779791@vip.163.com Add: No.51 Yunfeng Rd , Xinhua Industrial Zone,Huadu District,Guangzhou City,China.
