Instruction Manual
GB
DIGITAL HOME
CINEMA SYSTEM
HT-TXQ120
AH68-01959B
COMPACT
AH68-
DIGITAL AUDIO
01660E
REV: 01

Advertisement

Table of Contents
loading

Related Manuals for Samsung HT-TXQ120

Summary of Contents for Samsung HT-TXQ120

  • Page 1 Instruction Manual DIGITAL HOME CINEMA SYSTEM HT-TXQ120 AH68-01959B COMPACT AH68- DIGITAL AUDIO 01660E REV: 01...

  • Page 2: Safety Warnings

    Replacement covers are available from your dealer. If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suit- able safety approved extension lead or consult your dealer for assistance.

  • Page 3: Table Of Contents

    USB Host Play You can enjoy media files such as pictures, movies and tunes saved in an MP3 player, digital camera, or USB memory by connecting the storage device to the USB port of the home theater.

  • Page 4: Notes On Discs

    Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played. • Approx. 80 min. (single-sided) MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +). Approx. 160 min. (double-sided) •...

  • Page 5: Description

    Connector 11 System Connector 8 Video Output Jack Connect your TV's video input jacks Connector (VIDEO IN) to the VIDEO OUT Jack on this unit. Auto Sound Calibration Core (4EA) Video Cable Microphone (Toroidal Ferrite Core)
  • Page 6 TUNER button USB button The remote control can be used up to approximately 23 feet (7 meters) in a straight line. It can also be operated at a horizontal angle of up to 30° from the remote control sensor. PLAY/PAUSE button...

  • Page 7: Speaker Installation

    STAND BASE base. Tighten 4 screws on the bottom side of the stand base. STAND Place the stand on the floor and tighten 2 screws on the back of the stand. SPEAKER Mount the speaker on the stand. STAND Tighten 2 screws on the back of the speaker.

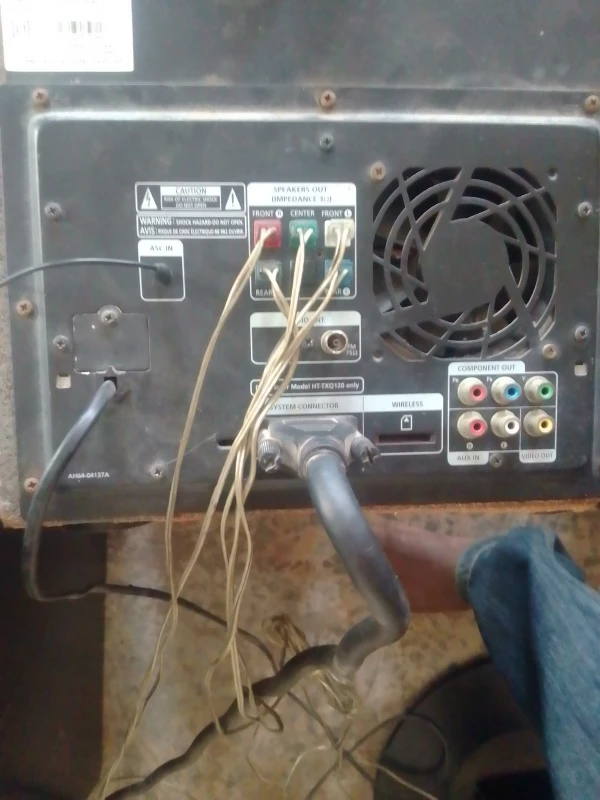

  • Page 8: Connecting The Speakers

    • When connecting the speaker wires to the speakers, make sure that the polarity (+/–) is correct. • Keep the speaker out of reach of children so as to prevent children from inserting their hands or alien substances into the duct (hole) of the subwoofer speaker.

  • Page 9: Connecting The Optional Wireless Receiving Amplifier

    Subwoofer : With a built-in, dedicated 185W amplifier, the Subwoofer generates rich bass sounds. Attaching the Toroidal Ferrite Core to the Power Cord of the Subwoofer If you attach a Toroidal ferrite core to the power cord of the subwoofer, it will prevent help to prevent RF interference from radio signals.

  • Page 10: Connecting The Video Out To Your Tv

    Subwoofer METHOD 1 : HDMI ... (Best Quality) Connect the supplied HDMI cable from the HDMI OUT jack on the back of the Main Unit to the HDMI IN jack on your TV. METHOD 2 : Component ... (Better Quality)

  • Page 11: Connecting The Hdmi In/Out

    • Audio from SACD discs cannot be heard via the HDMI connection. To play a DVD disk whose copyright is protected by CPPM, use a player supporting CPPM. • The quality of the audio output through the HDMI OUT Jack (sampling frequency and bit rate) may be limited by the performance of the external device.

  • Page 12: Connecting Audio From External Components

    <HDMI> <D.IN 1> • To listen to the audio from the TV in 5.1 channel through the Home Theater, press the Dolby Pro Logic II or the SUPER 5.1 button. • You can connect the Video Output jack of your VCR to the TV, and connect the Audio Output jacks of the VCR to this product.

  • Page 13: Before Reading The User's Manual

    <NTSC> or <PAL> will appear in the display. At this time, press the NT/PAL button shortly to select between <NTSC> and <PAL>. Each country has a different video format standard. For normal playback, the video format of the disc must be the same as the video format of your TV.

  • Page 14: Disc Playback

    • Depending on the content of the disc, the initial screen may appear different. • Pirated discs will not run in this player because it violates the CSS (Content Scrambling System : a copy protection system) rec- ommendations. SACD (Super Audio CD) Playback You can listen to high quality multi-channel sound that exceeds regular CD playback.

  • Page 15: Mp3/Wma-Cd Playback

    All File Icon : To view movie files only, select the JPEG File Playback Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played back with this Home Theater.

  • Page 16: Divx Playback

    You must have some experience with video extraction and editing in order to use this feature properly. • To use the caption function, save the caption file (*.smi) in the same file name as that of the DivX media file (*.avi) •...

  • Page 17: Using The Playback Function

    Each time the button is pressed during playback, the playback speed changes as follows: PLAY PLAY • During fast playback of a SACD, CD or MP3-CD, sound is heard only at 2x speed, and not at 4x, 8x, and 32x speeds. Press the SLOW button.

  • Page 18: Skipping Scenes/Songs

    Using the Playback Function Skipping Scenes/Songs Press the button. Each time the button is pressed during playback, the previous or next chapter, track or directory (file) will be played. You cannot skip chapters consecutively. TITLE 01/05 CHAPTER 002/045 (Con’t) Repeat Playback Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file).

  • Page 19: A-B Repeat Playback

    Each time the button is pressed, the zoom level changes as follows: ZOOM X 1.5 ZOOM X 2 ZOOM X 3 ZOOM OFF • When a DivX disc is being played, the screen is enlarged up to twice the normal size.

  • Page 20: Ez View Function

    • During the EZ View operation, some of the left and right sides may be cut slightly. Bonus Group Some DVD-Audio discs have an extra ‘bonus’ group that requires a 4-digit key number to access. See the disc packaging for details and the-key number.

  • Page 21: Moving Directly To A Scene/Song

    • Depending on the disc, you may not be able to move to the selected title or time. (Con’t) Using the Disc Menu You can use the menus for the audio language, subtitle language, profile, etc. DVD menu contents differ from disc to disc. ) display. ) display.

  • Page 22: Playing Media Files Using The Usb Host Feature

    Playing Media Files using the USB HOST Feature You can enjoy media files such as pictures, movies and music saved in an MP3 player, USB memory or digital camera in high quality video with 5.1 channel home theater sound by connecting the storage device to the USB port of the home theater.

  • Page 23: Settings

    Adjusting the TV Aspect Ratio (Screen Size) The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of widescreen and high definition TVs is 16:9. This ratio is called the aspect ratio. When playing DVDs recorded in different screen sizes, you should adjust the aspect ratio to fit your TV or monitor.

  • Page 24: Setting Parental Controls (Rating Level)

    Settings (Con’t) Setting Parental Controls (Rating Level) Use this to restrict playback of adult or violent DVDs you do not want children to view. In Stop mode, press the MENU button. Press the Cursor button to move to <Setup> and then press the ENTER button.

  • Page 25: Dvd Playback Mode

    MOVE ENTER RETURN EXIT press the ENTER button. For C, SL, and SR, each time the button is pressed, the mode switches alternately as follows : SMALL NONE. For L and R, the mode is set to SMALL. • SMALL : Select this when using the speakers.

  • Page 26: Setting The Delay Time

    Setting up the Speaker Delay Time When 5.1CH Surround Sound is played, you can enjoy the best sound if the distance between you and each speaker is the same. Since the sounds arrive at the listening position at different times depending on the placement of speakers, you can adjust this difference by adding a delay effect to the sound of the Center and Surround Speakers.

  • Page 27: Setting The Audio

    CHANGE RETURN EXIT Setting the AV SYNC button. Video may look slower than the audio if it is connected to a digital TV. If this occurs, adjust the audio delay time to to match the video. MOVE ENTER RETURN EXIT...

  • Page 28: Dolby Pro Logic Ii Mode

    • When selecting Pro Logic II mode, connect your external device to the AUDIO INPUT jacks (L and R) on the player. If you connect to only one of the inputs (L or R), you cannot listen to surround sound.

  • Page 29: Auto Sound Calibration Setup

    SR: Rear Speaker (R) To Turn the Sound Logo On/Off When you turn on the power, the unit produces a sound logo after the disc is read to notify that the unit is optimized for playback. Connect the auto sound calibration microphone to the auto sound calibration input connector on the subwoofer.

  • Page 30: Live Surround Mode

    Select <SUPER 5.1> to play 2-channel sound in 5.1 channels. Music If you press the MUSIC button when listening to a 2-channel sound source, it will be reproduced in 4.1-channel surround sound so that you can enjoy a dynamic sound with a sense of presence.

  • Page 31: Listening To Radio

    RDS allows FM stations to send an additional signal along with their regular program signals. For example, the stations send their station names, as well as information about what type of program they broadcast, such as sports or music, etc.

  • Page 32: Convenient Functions

    About RDS broadcasting PTY (Program Type) indication and PTY-SEARCH function One of the advantages of the RDS service is that you can locate a particular kind of program from the preset channels by specifying the PTY codes. To search for a program using the PTY codes Before you start, remember...

  • Page 33: Operating A Tv With The Remote Control

    While holding down the POWER button, enter the code corresponding to your brand of TV. If there is more than one code listed for your TV in the table, enter one at a time to determine which code works. Example: For a Samsung TV While holding down the POWER button, use the number buttons to enter 00, 15, 16, 17 and 40.

  • Page 34: Troubleshooting

    Troubleshooting Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center.

  • Page 35: Cautions On Handling And Storing Discs

    If this occurs, remove the disc and let the player stand for 1 or 2 hours with the power on. Language Code List Enter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle” and/or “Disc Menu” (See page 44). Code Language...

  • Page 36: Usb Host Feature Supported Products

    Digital Camera AZ-1 Olympus Digital Camera Specifications Company Type Power Consumption Sandisk USB 2.0 USB Flash Drive 128M Weight Sandisk USB 2.0 128M Dimensions (W x H x D) Sandisk USB 2.0 256M Sony USB 2.0 64MB Operating Temperature Range Serotech USB 2.0 32MB...
  • Page 37 Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Region Country Customer Care Center Web Site...
