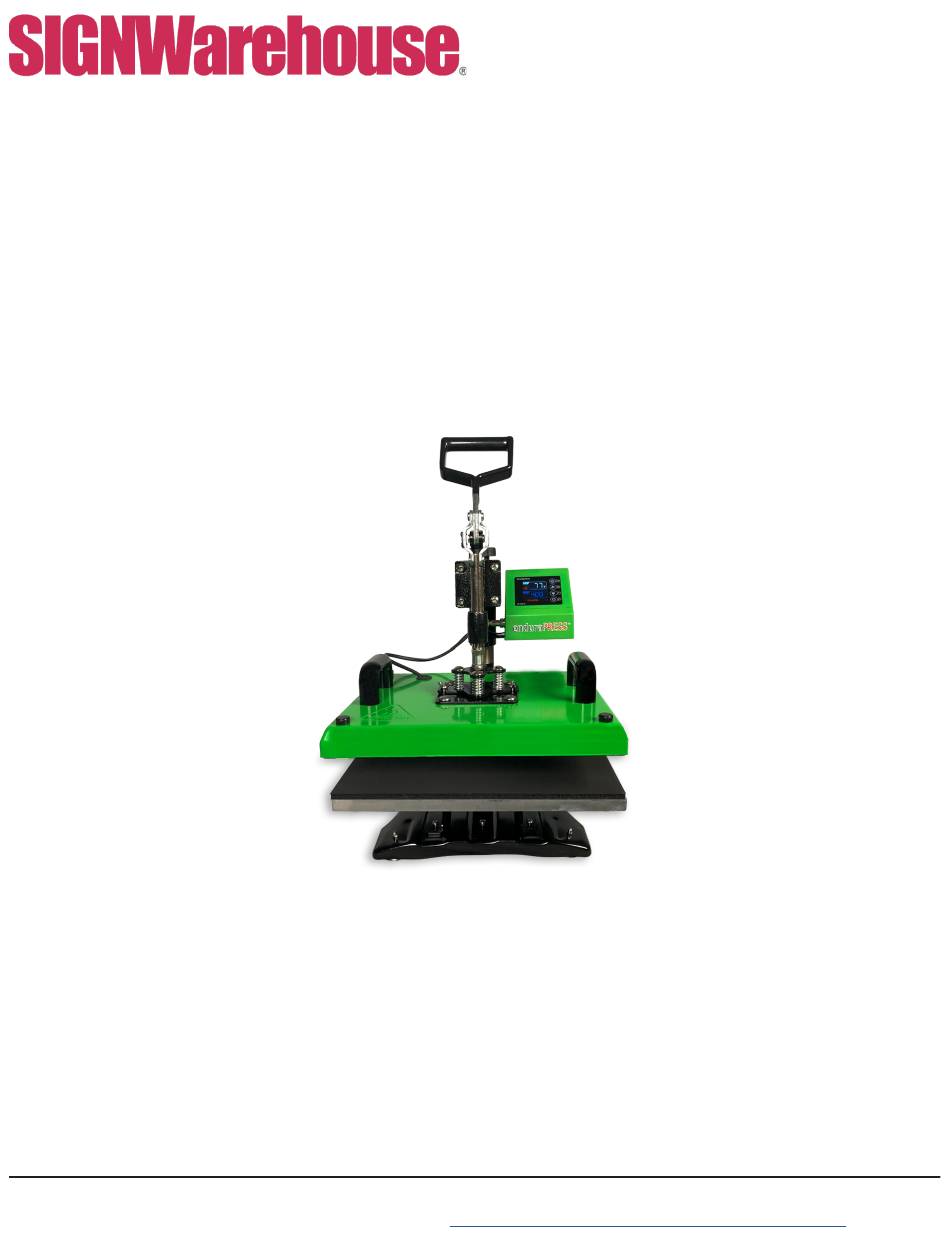

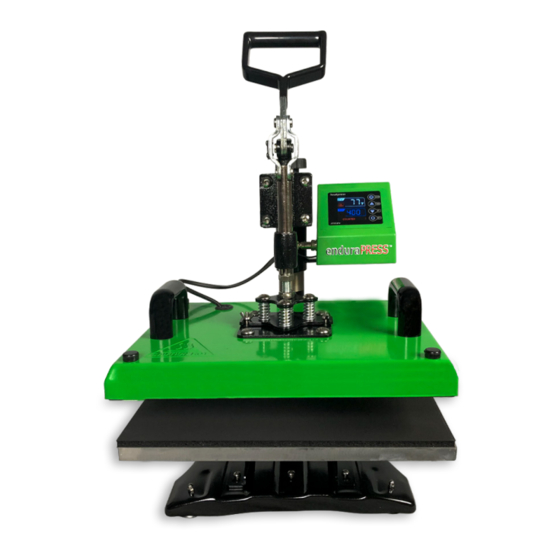

- Page 1 MF15 USER MANUAL REV 10/26/2020 www.signwarehouse.com • SignWarehouse, Inc. • 2614 Texoma Drive, Denison, TX 75020 • support@signwarehouse.com • signwarehouse.com/pages/contact-us...
-
Page 2: Table Of Contents
Control Panel Operations The Shirt Press Plate Attachments Mug Attachment Using the Mug Fittings Cap Press Attachment Heat Transfer Application Guidelines Troubleshooting Tips Wiring Schematic & Warranty www.signwarehouse.com • SignWarehouse, Inc. • 2614 Texoma Drive, Denison, TX 75020 • support@signwarehouse.com • signwarehouse.com/pages/contact-us... -
Page 3: Specifications
Control Panel: LCD Control Panel Time Range: 0~999sec. Power Switch Temp. Range: 0~480°F Max Open Height: 0.5” Packaging: Double-walled Corrugated Paper Carton Gross Weight: 77lbs (35kg) www.signwarehouse.com • SignWarehouse, Inc. • 2614 Texoma Drive, Denison, TX 75020 • support@signwarehouse.com • signwarehouse.com/pages/contact-us... -
Page 4: Operation Instructions Read Before Use
7. Do not set the temperature any higher than 480F as it may cause over heat and stop working. 8. The heat press carries a ground line by default, please make sure the socket gets a ground line protector. www.signwarehouse.com • SignWarehouse, Inc. • 2614 Texoma Drive, Denison, TX 75020 • support@signwarehouse.com • signwarehouse.com/pages/contact-us... -
Page 5: Control Panel Operations
Long hold the CLEAR button to clear start to cool down if heat press is your counter on the panel. inactive To reheat the press, hit any button www.signwarehouse.com • SignWarehouse, Inc. • 2614 Texoma Drive, Denison, TX 75020 • support@signwarehouse.com • signwarehouse.com/pages/contact-us... -
Page 6: The Shirt Press
FIG 2: To disconnect the power cable, loosen the loosing the wing nuts. collar on the circular connector, then pull the plug away from the control panel housing. www.signwarehouse.com • SignWarehouse, Inc. • 2614 Texoma Drive, Denison, TX 75020 • support@signwarehouse.com • signwarehouse.com/pages/contact-us... -
Page 7: Plate Attachments
Wing nuts FIG 5: Attach the plate heat platen using the wing nuts. Make sure the platen is securely attached before use. www.signwarehouse.com • SignWarehouse, Inc. • 2614 Texoma Drive, Denison, TX 75020 • support@signwarehouse.com • signwarehouse.com/pages/contact-us... -
Page 8: Mug Attachment
The mug attachment will work both ways. FIG 7: The mug attachment’s heat platen connects the same way as the shirt attachment, using the circular connector. www.signwarehouse.com • SignWarehouse, Inc. • 2614 Texoma Drive, Denison, TX 75020 • support@signwarehouse.com • signwarehouse.com/pages/contact-us... - Page 9 This will ensure a clear, sharp transfer. Phillips screws FIG 8: Use a phillips screw- driver to remove the screws holding the fittings to the mug attachment frame www.signwarehouse.com • SignWarehouse, Inc. • 2614 Texoma Drive, Denison, TX 75020 • support@signwarehouse.com • signwarehouse.com/pages/contact-us...
-
Page 10: Cap Press Attachment
Always check allen wrench to platen into the track and the platen is secured. help change out the tighten the wing nuts. platen www.signwarehouse.com • SignWarehouse, Inc. • 2614 Texoma Drive, Denison, TX 75020 • support@signwarehouse.com • signwarehouse.com/pages/contact-us... -
Page 11: Heat Transfer Application Guidelines
** The EnduraPRESS CS15, CS15-AR, CS16, and CS16-AR are not recommended for use with two-step laser transfer papers. For these demanding applications, we recommend the EnduraPRESS SA12 or SD20. www.signwarehouse.com • SignWarehouse, Inc. • 2614 Texoma Drive, Denison, TX 75020 • support@signwarehouse.com • signwarehouse.com/pages/contact-us... -
Page 12: Troubleshooting Tips
Pressure: If the temperature is correct, adjust the pressure. Some films require more pressure to bond the adhesive to the fabric. There should be some resistance when you close the press. If you have verified all of these and the film doesn’t stick, contact SIGNWarehouse customer service or Technical Support for further assistance. - Page 13 Thank you for choosing our products, you are entitled to one year free warranty service for our products. All exceeds warranty period we will still provide technical supports and maintenance guidance. www.signwarehouse.com • SignWarehouse, Inc. • 2614 Texoma Drive, Denison, TX 75020 • support@signwarehouse.com • signwarehouse.com/pages/contact-us...
