Bircher AirMission 2.W2 Translation Of The Original Operating Instruction

AirMission

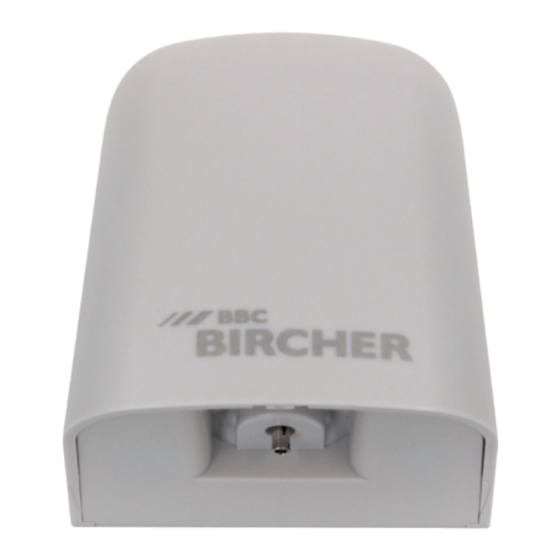

Wireless signal transmission system with integrated pressure-wave- and wicket-door-switch
Translation of the original operating instruction
General
Transmitter 1
Ø 4.5
45
1

Safety instructions

Warning: Switch off the operating voltage before working on the system.
Only trained, qualified personnel may perform installation and startup.
The unit may only be opened and repaired by Bircher Reglomat employ-
ees. The switching unit may only be used to protect against dangers at
crushing and shearing points and at automatic industrial doors (intended
use). National and international regulations on industrial door safety must
be complied with. Always consider the safety functions of your applica-
2

Common application

2.1

Industrial door with wicket door

Receiver
ON
1 2 3 4 5
DIP switch 5 ON
Pressure wave safety edge
2.W2
31
73 56
Transmitter 1 input 1 corresponds to receiver output 1
i
Transmitter 2 input 1 corresponds to receiver output 2
Receiver
Transmitter 1
Transmitter 2
Drilling template enclosed
65.7 15.5
tion as a whole, never just in relation to one individual section of the
system. A risk assessment in advance is mandatory. The installer is re-
sponsible for installing the industrial door system correctly.
It is recommended to change the batteries every year.
i
Receiver
80 45
Transmitter 2
Magnet
347973D
10/17
1
