- Page 1 Avonic AV-REC100 Rack Mount HDMI Recorder User Manual Version 1.5 Update notes: Operation section added Join Avonic Various type errors corrected linkedin.com/company/avonic Introduction area standarized twitter.com/avonic facebook.com/avonic www.avonic.eu...
-
Page 2: Table Of Contents
Rear Panel View ..........................5 Installation ..................6 Connection Diagram ........................6 Operation Instructions ..............7 Remote Control ..........................7 Menu ..............................8 Operation ............................9 Video ..............................9 Photo .............................. 10 Appendix ..................11 Technical Data ..........................11 www.avonic.eu... -
Page 3: Introduction
Contact For any questions or suggestions, contact the reseller or the local distributor of Avonic. Find the local distributor on the website of Avonic. For the most recent manual or datasheet, look at the Avonic website. -
Page 4: Package Contents And Accessories

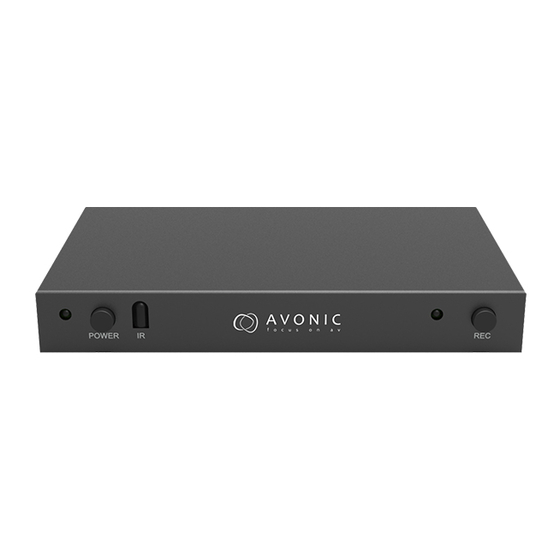

AV-REC100-USB Product Overview The Avonic AV-REC100 is an HD Video Recorder that employs HDMI technology to receive video & audio from HDMI input. It can store the video & audio directly into a portable USB hard drive disk or a high-speed pen drive. It uses H.264 AVCHD M2TS format, which guarantees efficient compression and timely delivery. -
Page 5: Product Description
3. USB Interface: Connects to an external USB storage device, such as a USB pen drive or USB HDD. (recording is only on 1 USB interface. The 2 USB is for USB powered HDD) 4. DC 5V: Plug the 5V DC power supply into the unit and connect the adaptor to an AC outlet. www.avonic.eu... -
Page 6: Installation
Connect the power cable to the HDMI Video Capture. • Power on HDTV and Video Player. • Power on HDMI Video Capture. • Press the REC button to Recording the video to USB Storage Device. • Press the REC button to stop Recording. www.avonic.eu... -
Page 7: Operation Instructions
Scroll-up button for OSD Menus navigation. In playback mode, skips to the next file. Scroll-down button for OSD Menu navigation. In playback mode, skips to the previous file. “Enter” button for OSD Menu navigation. In playback mode, Toggles between Pause and Play. www.avonic.eu... -
Page 8: Menu
3. In DISK menu, select one file, then press “Menu” button. That will add a submenu on the right of the main menu. The user can delete or rename the selected file. www.avonic.eu... -
Page 9: Operation
3. Press REC again to stop the recording. The right LED will turn off 4. Remove disk from device. (it is possible to take the disk out immediately after the recording is stopped) www.avonic.eu... -
Page 10: Photo
2. Press Photo (remote control) to start the recording. A blue dot will appear for a second on the monitor 3. Do not remove disk from device immediately. The file needs to be written to the device. This takes a moment. www.avonic.eu... -
Page 11: Appendix
HDMI interface Output Resolutions: 1080i50, 1080i60, 1080p50, 1080p60 Encode format: Hardware H.264 encoder Power 5V DC / 2A Power consumption Working Temperature 0-50 deg C Storage Temperature -20-70 deg C Storage Humidity 5%-90% Size 135x78x24 (L/W/H, mm) Weight 120 g www.avonic.eu...
