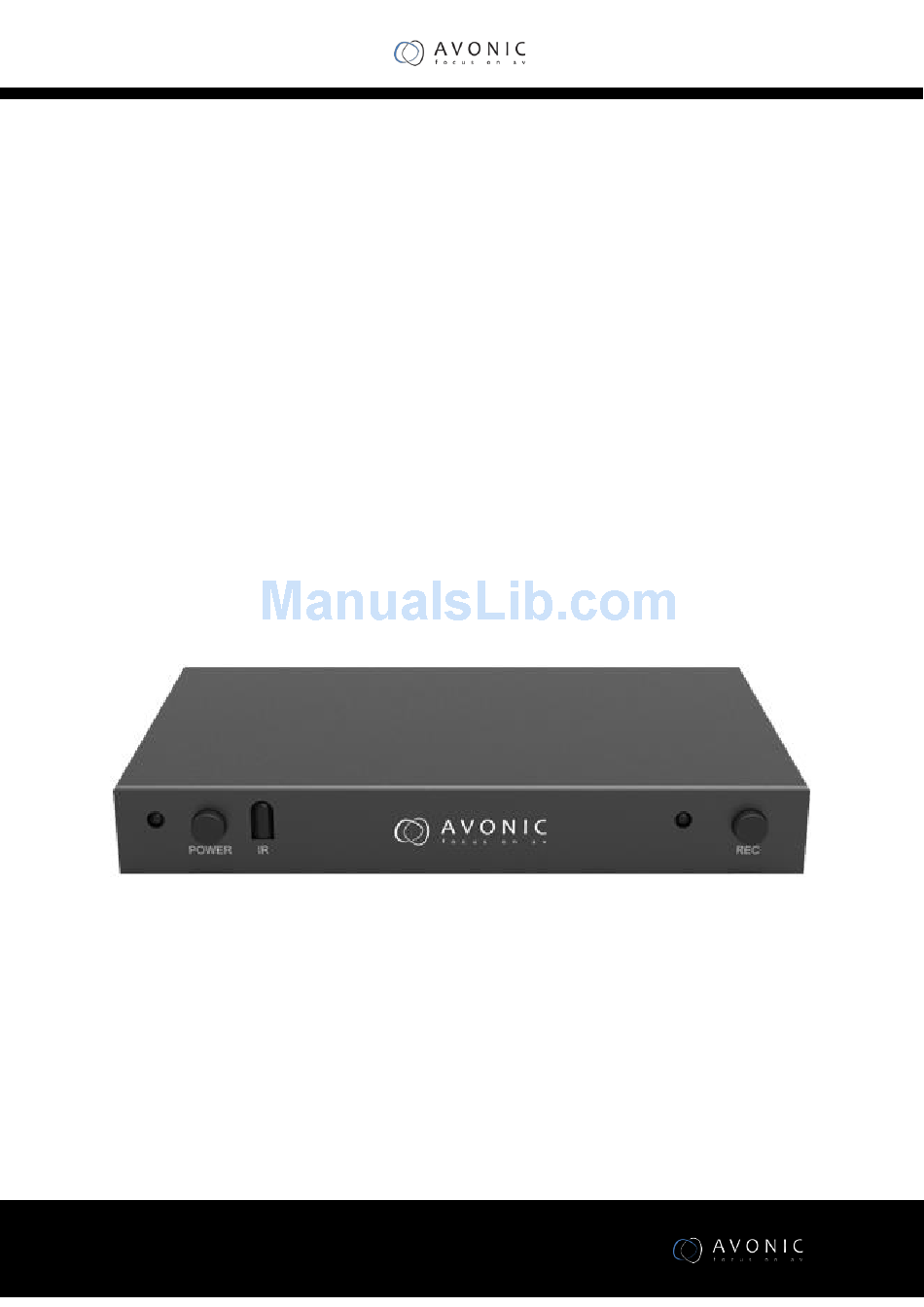

- Page 1 AV-REC100 HDMI R ECORDER SER MANUAL V1.2 www.avonic.eu...
- Page 2 INTRODUCTION The Avonic AV-REC100 is an HD Video Recorder that employs HDMI technology to receive video & audio from HDMI input. It can store the video & audio directly into a portable USB hard drive disk or a high-speed pen drive. It uses H.264 AVCHD M2TS format, which guarantees efficient compression and timely delivery.
- Page 3 HDMI interface Output Resolutions: 1080i50, 1080i60, 1080p50, 1080p60 Encode format: Hardware H.264 encoder Power 5V DC / 2A Power consumption Working Temperature 0-50 deg C Storage Temperature -20-70 deg C Storage Humidity 5%-90% Size 135x78x24 (L/W/H, mm) Weight 120 g www.avonic.eu...
- Page 4 3. USB Interface: Connects to an external USB storage device, such as a USB pen drive or USB HDD. (recording is only on 1 USB interface. The 2 USB is for USB powered HDD) 4. DC 5V: Plug the 5V DC power supply into the unit and connect the adaptor to an AC outlet. www.avonic.eu...
- Page 5 Scroll-up button for OSD Menus navigation. In playback mode, skips to the next file. Scroll-down button for OSD Menu navigation. In playback mode, skips to the previous file. “Enter” button for OSD Menu navigation. In playback mode,Toggles between Pause and Play. www.avonic.eu...
- Page 6 Format Disk: Format the external USB disc or USB HDD by FAT32 format. 2. Press the “Disc” button on the remote, the screen will display the Disc Menu, press the left, right, up, down buttons to playback the recorder video or photo files. www.avonic.eu...
- Page 7 4. Select the Rename item, then press “OK” button, the device will display Rename menu. The user can rename the record file name by the remote control, press “Exit” button it will auto save the new name for this file. www.avonic.eu...
- Page 8 CONNECTION DIAGRAM www.avonic.eu...
