Connections

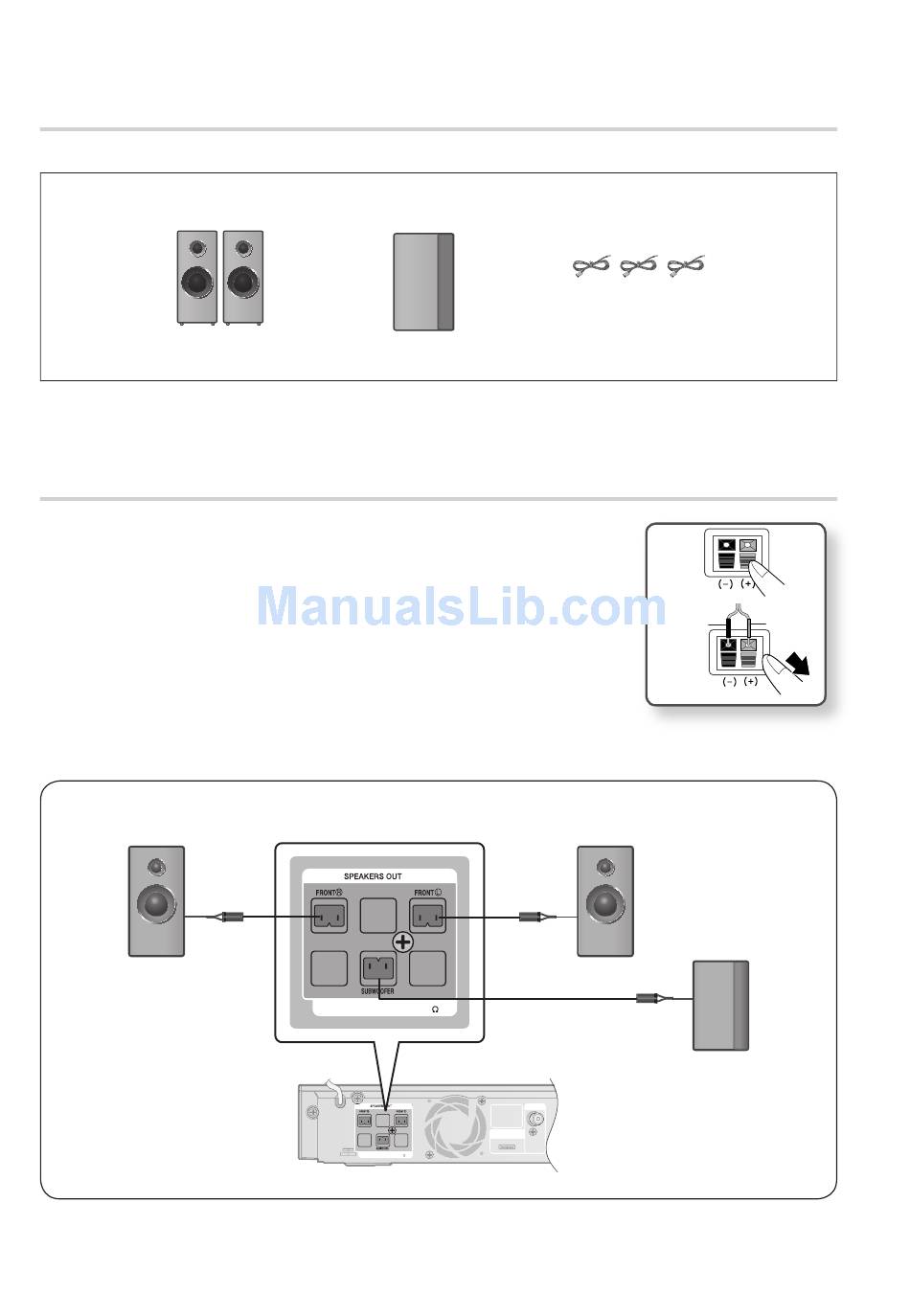

Speaker Components

(L)
FRONT

Connecting The Speakers

1. Press down the terminal tab on the back of the speaker.
2. Insert the black wire into the black terminal (–) and the red wire into the
red terminal (+), and then release the tab.
3. Connect the connecting plugs to the back of the product by matching
the colours of the speaker plugs to the speaker jacks.
Front Speaker (R)
18
English
(R)
SUBWOOFER
SPEAKER IMPEDANCE : 3
SPEAKER IMPEDANCE : 3 SPEAKER IMPEDANCE : 3
SPEAKER CABLE
Black
Front Speaker (L)
FM ANT. FM ANT.
iPod iPod
Red
Subwoofer
