English version

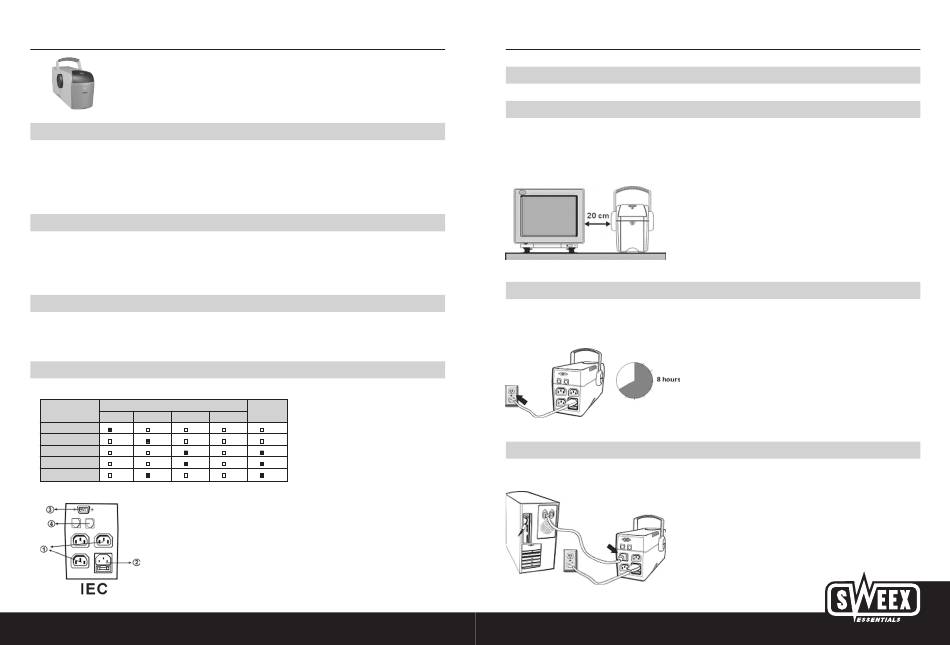

UPS 500 VA (BC100030) / UPS 600 VA (BC100040) / UPS 700 VA (BC100050) / UPS 800 VA (BC100060)
Advantages
Automatic voltage control
- The voltage control increases or lowers the voltage between the mains input and the output at the optimum
level. If voltage limits are exceeded and if the AVR detects undervoltage or overvoltage, the UPS will signal this
and the voltage will again be brought to an optimal level.
If the mains voltage fails
- A pulsating acoustic signal shall warn you when the mains voltage fails.
Most important characteristics
Complete power protection
•
Automatic recharging of the batteries
•
Maintenance-free batteries
•
Remarks
Before commencing full-fledged operation of the UPS, you should first charge it for eight hours. After eight hours, the charging process of the
battery will be controlled by the electronic devices of the UPS itself. Do not connect laser printers to the UPS, since they consume a lot of power.
Description of the UPS
LED & Indicator-
Status
LED
green
orange
red
AC mode
Battery mode
Replacement battery
Overcharging
Low battery voltage
Rear side -
1. Output(s)
2. AC input including AC fuse
3. Communication port (RS 232)
4. Telephone/modem protection (optional)
2
W W W . S W E E X . C O M
Acoustic
none
alarm
Installation and usage
Installation
Leave the Sweex UPS on at all times.
Place the Sweex UPS on a flat surface.
In order to prevent fire or electrical shocks, do not expose the device to rain or a moist atmosphere.
Ensure that the UPS is at lest 20 cm away from the monitor.
Charging
The UPS is fully charged at the factory itself, but during transportation, the battery may get discharged. For this reason we recommend that you
charge the Sweex UPS for at least 8 hours before use.
Connecting your hardware
Connect a computer-related product to the back of the UPS. You may connect a maximum of three devices.
English version
3
