Summary of Contents for Omnicomm LLD
- Page 1 Omnicomm LLD fuel volume indicator User Manual Omnicomm Configurator 6 26.04.2019...
-
Page 2: Table Of Contents
Contents General information Setting up Installation and Connection Purpose of the Indicator Lights Displaying Fuel Volume Displaying Additional Parameter Technical Specification... -
Page 3: General Information

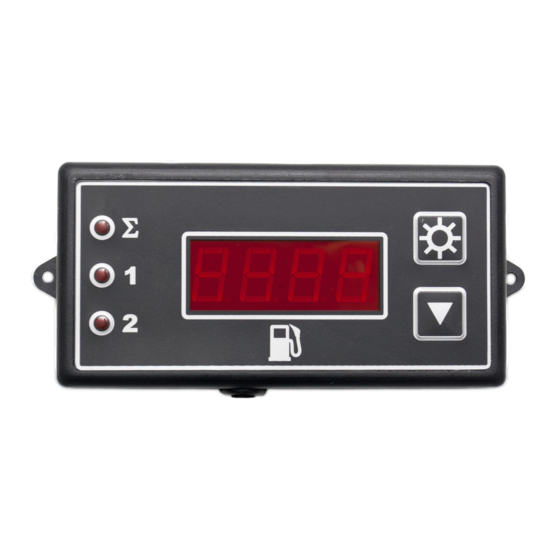

Omnicomm LLD fuel volume indicator is intended to display fuel volume of remaining fuel in the tanks of the vehicles, diesel generators and fuel storages. In addition, Omnicomm LLD fuel volume indicator enables control over one of the following parameters: volume of fuel filled in the tank during refueling, vehicle speed (with Omnicomm terminals only);... -
Page 4: Setting Up
Setting up Setting up Connect the Omnicomm LLD indicator to the PC using UNU or Omnicomm UNU-USB according to the scheme:... - Page 5 2. Specify the number of sensors connected to the Omnicomm LLD indicator 3. Specify the network addresses that are set in the Omnicomm LLS fuel level sensors 4. Set the brightness level for the indicator at startup. The following options are available: maximum, minimum, off.
-
Page 6: Installation And Connection
To save the calibration table, click «Export». Installation and Connection While installing the Omnicomm LLD fuel volume indicator with the help of screws, drill two 3.2 mm diameter fixation holes according to the installation dimensions, on the back side of a place of installation install a washer and a nut, which are both... - Page 7 The connection the Omnicomm LLD indicator to the Omnicomm LLS sensor, terminal or on-board network of the vehicle is generated according to the scheme : If it is necessary to connect two Omnicomm LLS sensors, it is recommended to use two KTZ splitters and two KTZ cables.
- Page 8 Pink RS-232 Rx Gray +V power Brown Ground White Purposes and colors of the wires in the cable of the Omnicomm LLD indicator when connecting without a connector: Name of signal Type of wire RS-485 A Orange-white RS-485 B White-blue...
-
Page 9: Purpose Of The Indicator Lights
Purpose of the Indicator Lights Purpose of the Indicator Lights Displaying Fuel Volume The Omnicomm LLD indicator displays the value of fuel volume in the tank. Shortly pushing the button will allow you to go to the next value viewed on the display: total volume read from both sensors (the Σ... - Page 10 Start the refueling operation. The Omnicomm LLD indicator will display the volume of fuel being added to the tank. Short-pushing the will allow you to go to the next value viewed on the display: total volume of fuel added (the Σ...
-
Page 11: Technical Specification
«Settings» section, in «The display mode at startup» field, select the «Additional parameter» option. To display the vehicle speed, the values read from the universal input and the volume of fuel dispensed, it is necessary to edit the appropriate settings of the Omnicomm Terminal. Technical Specification... - Page 12 www.omnicomm-world.com...
