Phoenix AirMax Installation, Operation & Service Instructions

Owner's Manual — Phoenix AirMax

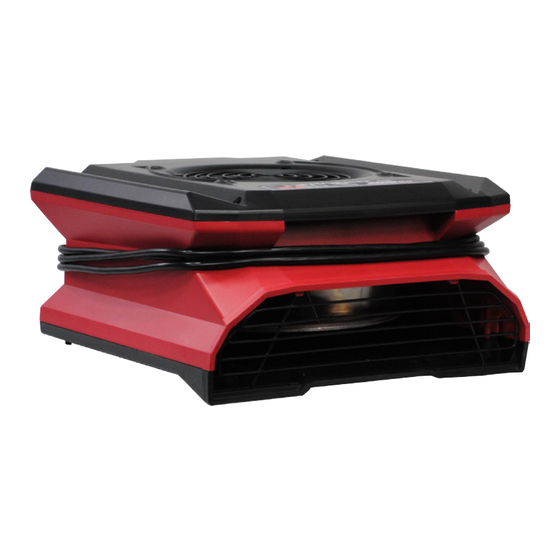

The Phoenix AirMax is the new leader in performance,
convenience, portability, and safety for low profile air movers.
Its compact 20 1/2" X 17" footprint and 8 7/8" height make
the Phoenix AirMax the most compact and portable fan in
its class. The rugged molded in handle gives you the solid
control required when packing and unpacking lots of air
movers. Its easy-winding cord wrap and multiple securement
options makes it a snap to prep for transport. Because of its
deeply-molded interlocking features, the Phoenix AirMax is
rock solid when stacked for transport.
With its Patent Pending, low resistance motor support
bracket and optimized outlet shape, the Phoenix AirMax
delivers airflow of over 925 CFM. This gives you high velocity
air over a 25% larger area than other low profile air movers.
In addition, the Phoenix AirMax is stable on all 5 sides for
maximum flexibility to position and direct the drying.
The Phoenix AirMax is the safest fan in its class providing a
quality GFCI convenience receptacle that protects not only
connected loads, but onboard components as well. This is
unlike competing fans that require external GFCI protection.
In addition, where competitors position high voltage electrical
connections low to the floor, the leading edge design of the
Phoenix AirMax allows these connections to be located more
than 4 times the minimum required height. The Phoenix
AirMax is built to keep our customers, and their customers,
safe.
The Phoenix AirMax
• 925 CFM, 1.9A
• Onboard circuit breaker and branch protection GFCI
• Daisy chain up to 6 fans on a single 15 Amp circuit
• Ultra secure stacking and cord wrap
• All Stainless Steel Fasteners
Specifications subject to change without notice.
Toll-Free 1-800-533-7533
4201 Lien Rd • Madison, WI 53704
Installation, Operation & Service Instructions
Read and Save These Instructions
Phoenix AirMax
PN 4035000
Patent Pending
www.UsePhoenix.com • sales@UsePhoenix.com
TS-890
09/16
