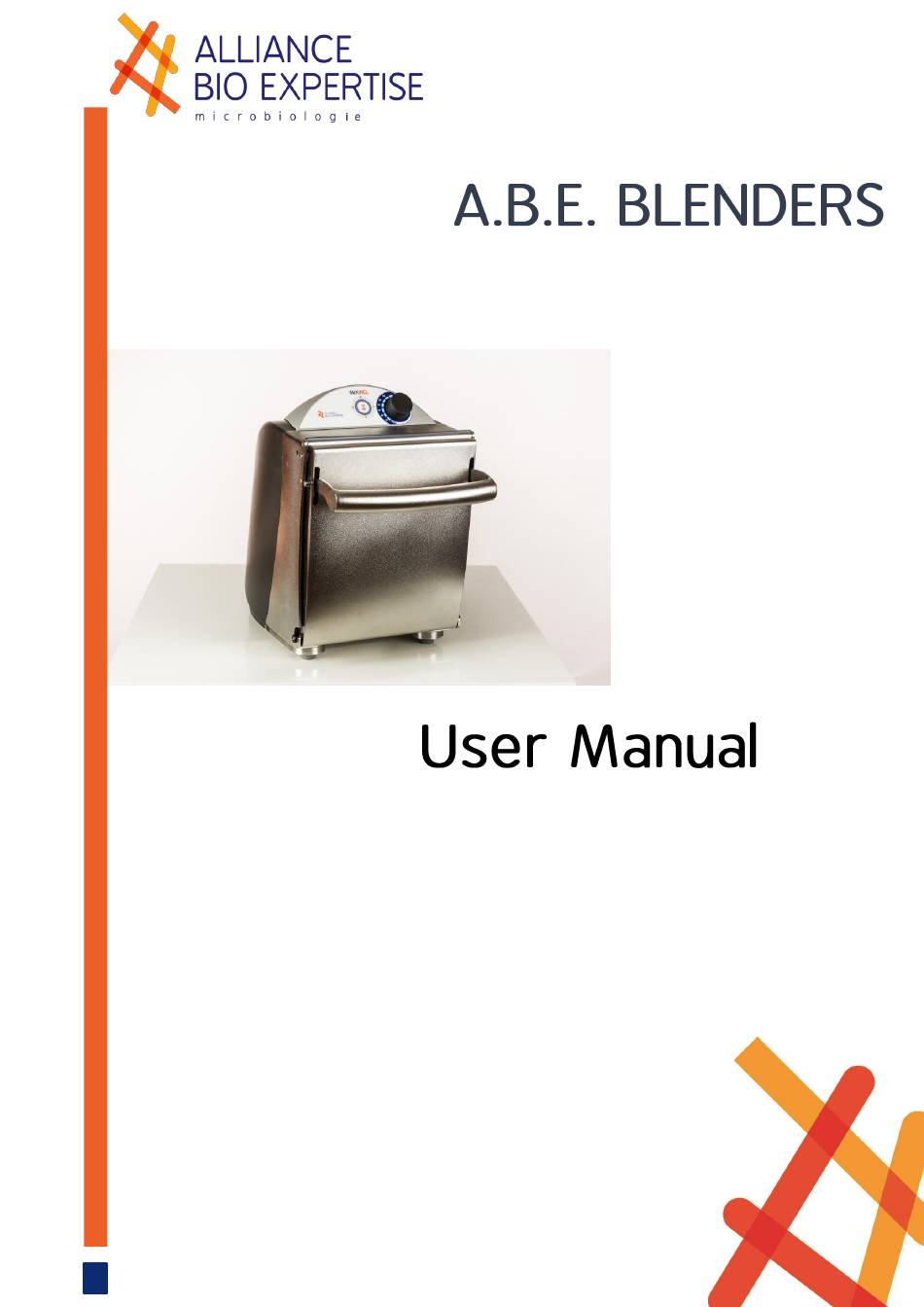

- Page 1 MIXWEL Revision 5 Alliance Bio Expertise – Le Tremplin ZA de Courbouton 35480 – Guipry +33 (0)2 40 51 79 53 – contact@abioexpertise.com...
- Page 2 Édition de base : Pages version Date Rédigé par : Vérifié par : Chapitres modifiés 10/09/2015 PINEDA A. BLANCHARD M. MAURO Mises à jour : 24/12/2015 A. PINEDA UM A.B.E. - MIXWEL...
-
Page 3: Table Of Contents
Table of contents General Information ..............4 Technical Specifications ................4 Standard accessories shipped with your Mixwel ......5 Overview ......................5 Setting up your Mixwel ..............6 Installation and operating environment ..........6 Unpacking ....................... 6 Supply systems ................7 Power supply .................... -
Page 4: General Information
General Information Read this document to find out the functionalities and features of your Mixwel. Technical Specifications UM A.B.E. - MIXWEL... -
Page 5: Standard Accessories Shipped With Your Mixwel
Standard accessories shipped with your Mixwel Mains supply unit 50 Bags 120W MIXBAG_SIDE Power cable Blender ref. Gs120A24– FILTER Certification User manual Overview Compacity: W x D x H : 220 x 410 x 340 mm : 14,6 kg Lightness Figure 1. -
Page 6: Setting Up Your Mixwel
• Realize the unpacking in a clean and accessible place; • take out the standard accessories shipped with your Mixwel; • take the Mixwel out of its package by lifting its lower part; • install the Mixwel on a stable and horizontal support preferably;... -
Page 7: Supply Systems
To insure the power switch off of the unit; • the outlet must be immediately identifiable and within easy reach of the operator; • connect the power supply to the Mixwel’s back in the location indicated UM A.B.E. - MIXWEL... -
Page 8: Getting Started Your Mixwel
Getting Started your Mixwel Functions of the Mixwel controller Button General Features Modality Powering Turn on the ignition switch on Turn on ( I ). position (I). Turn off ( 0 ). Turn off the ignition on the position Cycle time... -
Page 9: Opening Of The Door And Insertion Of The Blender Bag
• the blades move back slightly to facilitate removal from the bag; • lower the handle to open the door; • at the door opening, you can remove the bag. UM A.B.E. - MIXWEL... -
Page 10: Removing The Door
• successively disengage the brackets (ball joints) from the articulated rods holding the door; • slightly lift the door upward, then forward in order to disengage the locking parts at the base (left and right) of the door. UM A.B.E. - MIXWEL... -
Page 11: Take Out The Blending Blades
• it allows to remove the two pieces of compression rings of holes on both ends. of the holes on both ends. Blade rotational Compression ring Spring axis UM A.B.E. - MIXWEL... -
Page 12: Reassembly Of The Blades
• do the same with the second blade. Reassembling the door • Engage locking parts at the bottom; • successively engage the legs of the left and right fixing rods articulated in the upper part. UM A.B.E. - MIXWEL... -
Page 13: Adjusting Blades
• position the axis of rotation of the blades in one of the three positioning holes; • you have 3 possible settings of the blades; • move the blades away and toward depending on the size of your sample. UM A.B.E. - MIXWEL... -
Page 14: Upkeep And Maintenance
• Make sure that the grounding of the unit is always properly ensured by its power supply cord and wall outlet to which it is connected. • The user access to the interior of the device is not authorized. The maintenance is exclusively carried out by an authorized technician A.B.E. UM A.B.E. - MIXWEL...
