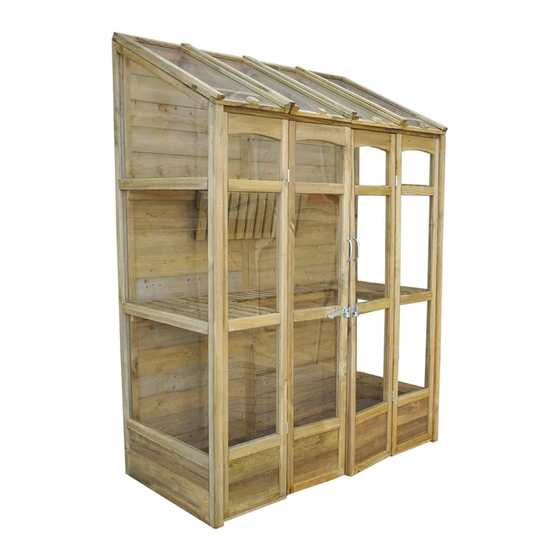

VICTORIAN
WALL GREEN HOUSE
IMPORTANT, RETAIN FOR FUTURE REFERENCE; READ
CAREFULLY
- Always pre-drill the timber to avoid splitting.
- The timber in this product is pressure treated to ensure
longevity and protection against rot. This may leave colour
variations, but these will even out as the moisture content
stabilises
.- Timber is a natural material and will shrink and swell as a
result of varying moisture content.
- Please keep all plastic bags and small parts away from
children
- This product must be built on a solid level base.
Technical Help line: 0333 321 3142 8.30 am and 5.00 pm
Monday to Friday.
In line with your statutory rights, please check all parts prior
to assembly, as assembly of damaged parts may be
deemed to be acceptance and this may affect the remedies
you are entitled to. If the product is not constructed in
accordance with the instructions, or is altered in anyway
(e.g. painted), the manufacturer cannot be held liable for
any resulting damage.
Fixing Pack (VICTGHFP)
Not to Scale
70mm Screw Qty 7
40mm Screw Qty 26
30mm Screw Qty 20
60mm Screw Qty 20
5.0 x 25mm Screw Qty 4
25mm Screw Qty 74
Latch
Qty 1
Bolt
Qty 6
Receiver
Handle
40mm Hinge
Qty 4
Qty 2
Qty 12
DRILL
SPIRIT LEVEL
TAPE MEASURE
POZI DRIVE SCREWDRIVER
HAMMER
Important :
Assembly of this
product requires a
minimum of two
MUST PRE DRILL
adults.
VICTGH PARTS LIST
A
A
B
TWGOPWIN Qty 2
(Opening Window)
TWGSIDE Qty 2
I
45451400WB Qty 1
BATTEN 45x45x1400mm
with badge
M
35120793 Qty 3
STRIP 35x12x793mm
1
E
A
Fix the side panels to each of the back sections, screwing through the outside of
the side panels into the back panel, using 3 x 60mm screws for each.
Fix the two back panel together, screwing at an angle, with the 3 x 70mm screws
through the framework at the back.
C
D
TWGWIN Qty 2
(Fixed Window)
TWGDOORV2 Qty 4
K
35121610 Qty 2
STRIP 35x12x1610mm
N
35121950 Qty 2
STRIP 35x12x1950mm
PRE-DRILL
E
Badge on the
A
Fix the two battens as shown again using a 60mm screw for each end. Make sure you pre-drill.
E
F
VICTGHSHLF Qty 4
(Fixed Shelf)
TWGBACK Qty 2
J
35351400 Qty 1
BATTEN 35x35x1400mm notched
2
I
outside
J
The bottom 35x35x1400mm batten must be set back as shown in the square above.
Make sure that the notch in batten 'N' is on the inside of the green house.
Make sure that the notch on batten 'J' is facing up.
issue 0217
G
LOCKBLOCK Qty 1
H
TWGFOLDSHLFV2 Qty 2
(Folding Shelf)
Notch
=
L
35120347 Qty 2
STRIP 35x12x347mm
O
PROP35120300 Qty 2
STRIP 35x12x300mm
PRE-DRILL
I
35mm

Advertisement

loading
Need help?

Need help?

Do you have a question about the VICTORIAN WALL GREEN HOUSE and is the answer not in the manual?

Questions and answers

Summary of Contents for Forest garden VICTORIAN WALL GREEN HOUSE

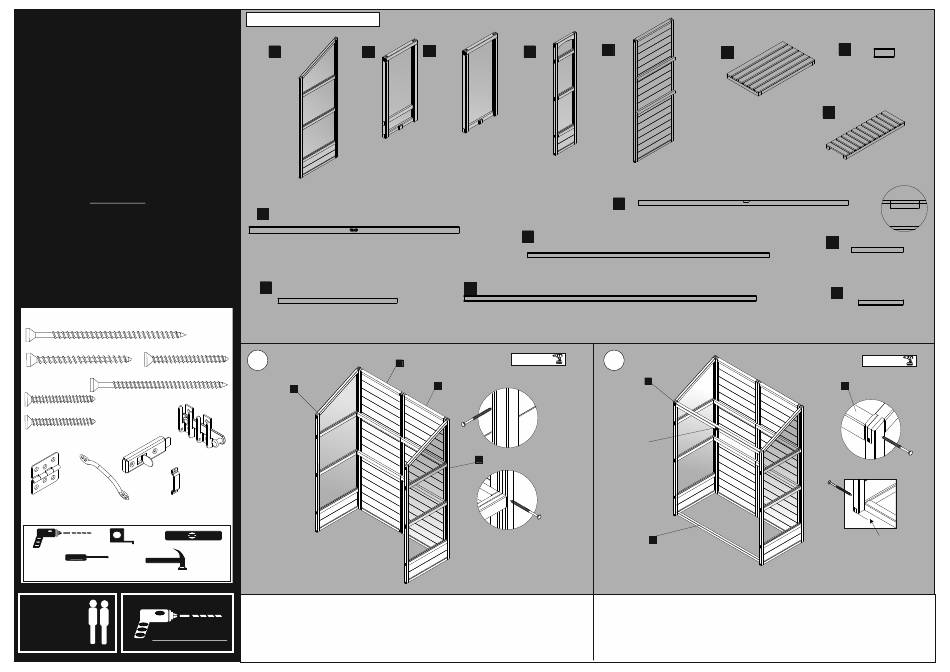

  • Page 1 VICTGH PARTS LIST issue 0217 VICTORIAN WALL GREEN HOUSE IMPORTANT, RETAIN FOR FUTURE REFERENCE; READ LOCKBLOCK Qty 1 CAREFULLY - Always pre-drill the timber to avoid splitting. - The timber in this product is pressure treated to ensure VICTGHSHLF Qty 4 longevity and protection against rot.
